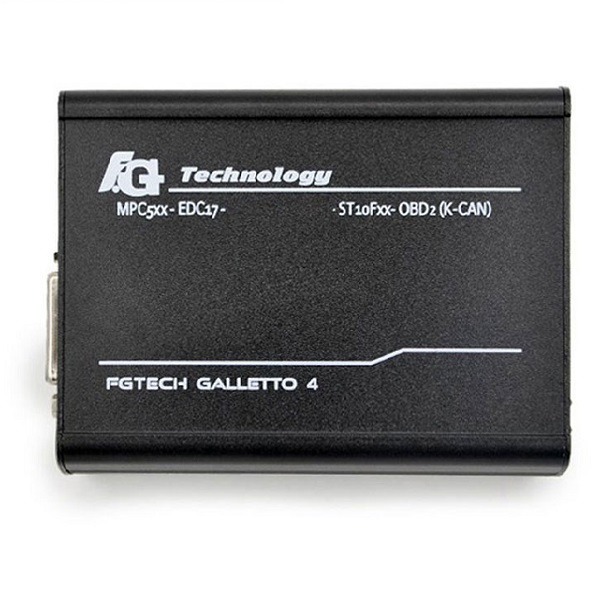

FGTech Galletto Master V54 ECU Chip tunning Tool

Description

FGTech Galletto Master V54  is a famous chip tuning tool for all cars, trucks, motorcycles, Marine, BDM MPCxx, BDM Boot Mode Tricore, checksum.
High Quality  FGTech V54 with newest 0475 Firmware ,EU Master version .FGTech Master with Firmware 0475 have released in 2019 year ,that prefect instead of old FW 0386.

1. Components improvement.it Fixed all unstable problems and errors ,added Tricore support
2. New vehicles&ECU coverage.(Example Unlock PCR2.1 by OBD2)
3. Security
4. Better compatibility on Windows system.

What’s new added on FGTECH 0475 VS Old 0386 ?

• OBD driver SSangyong Delphy DCM3.7 Read/Write, Checksum
• OBD driver for Ferrari 458 Italia MED9.6 Ecu Master and ECU Slave Read/Write, Checksum
• OBD driver for Fiat/Alfa/Lancia Twinair/Multiair 8GMF and 8GSF Read/Write, Checksum
• OBD driver for Mazda 5, Mazda 6 2.0 Diesel ECU RF8x Read/Write, Checksum
• OBD driver for Mazda 5, Mazda 6 2.0 Diesel ECU RF7x Read/Write, Checksum
• OBD driver for Simos 10.xx VAG 1.2 TSI Read/Write, Checksum
• OBD driver for CRD 3.xx Mercedes 2200 CDI Read/Write, Checksum
• Simos PCR2.1 VAG 1.6 TDI Unlock Boot Tool – Read/Write EEPROM
• OBD driver Simos PCR2.1 VAG 1.6 TDI Read/Write, Checksum
• RSA recognition Peugeot Bipper
• OBD driver Driver for writing Bosch EDC16C34/5 Peugeot Bipper Read/Write, Checksum
• OBD drive Driver for writing Bosch EDC16C34/5 Citroen Nemo Read/Write, Checksum
• OBD driver Delphi DCM3.5 for Tata Safari Read/Write, Checksum
• Checksum recognition for DCM3.7 Ssangyong,Opel and Saab,Kia and Hyundai
• Boot Visteon ST10F275 RX-TX Mode
• Boot ME7.9.10 ST10F275 RX-TX Mode
• Boot Mitsubishi MH7203 Hyundai
• OBD driver Opel Simtec75 CAN Read/Write, Checksum
• OBD driver Porsche SDI3 CAN Read/Write, Checksum
  ….etc

FGTech Galletto Master v54 Features:

1. Support windows XP/Windows7. more friendly than Fgtech v53 , much easier to operate
2. Unlock version , can use directly, no need to activate by us
3. Master Version:

• Recovery Mode Completa
• Funzione scan tool per eliminare i DTC
• Function scan tool for erase the DTC
• Controllo tensione di batteria auto in tempo reale
• Check tension of battery car in real time
• Boot Mode System TriCore:
• Infineon Tricore Sak TC1766/TC1767/TC179/ TC1796/TC1797
• NEW JTAG – BDM – MOTOROLA – FREESCALE – INFINEON
• Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 – Mair 8GMF
• New Delphy DCM3.5xx DCM3.7xx TRW
• Motorola Freescale MPC 555/556/561/562/563/564/565
• Motorola MC 68332 – MC YQQCU – MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
• Motorola MC 68376 Campi 01 Lamborghini – Lotus
• Motorola MC 68336 MEMS D5 ROVER
• Motorola ZC 439615 – ZC 439507 IAW FIAT – VAG
• New Line OBD protocols VPM GM – Hummer-Corvette-Munstang-Blazer-Cadilac
• New Line OBD protocols Tx-Rx – Subaru – Mitsubischi – Hitachi – Denso ecu
• All EDC17 MED17 is good always modify with Boot Mode tricore.
• Automatic Checksum:
• All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
• Boot Mode C167x / ST10, Boot Mode Infineon Tricore With password Bosch , Siemens
• Motorola MC68332 – MCYQQCU – MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
• Motorola Freescale MPC 555/556/561/562/563/564/565
• Freescale MPC 5553/5554/5565/5566
• BDM Tricore.
• 5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
• Can Bus V2.0 50Kb > 1000Kb
• J1850 VPW PWM GM -FORD
• Rx Tx RS232,
• RS 485,
• Automatic setup Pull up K-L line 250, 500, 1000 ohm,
• Automatic setup termination Can bus 0, 60,120 ohm,

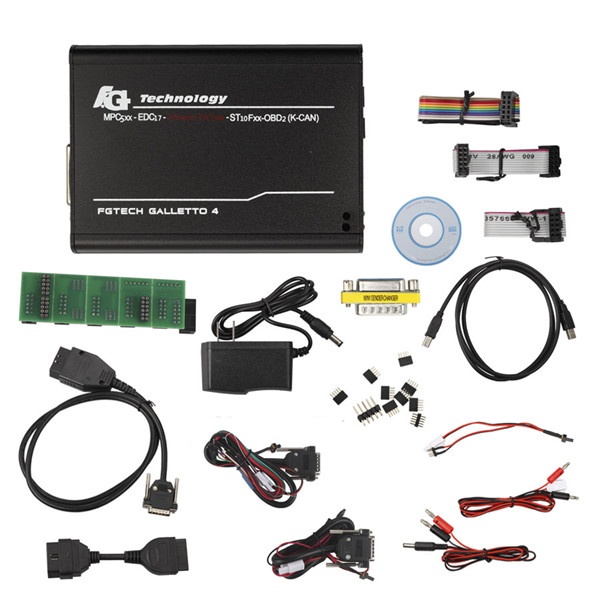

Fgtech Galletto Master V54 Package List:

• Fgtech V54 main unit
• ECU cable for TriCore boot
• Adapter for BDM to CMD with bdm cables
• 3pcs x BDM adapters
• 6pcs x  BDM connectors
• 2pcs x Power cable
• OBD2 cable
• USB cable (1.5meter)
• Software CD
