Description
Newest model XGECU T48 (TL866-3G) programmer is the improvement of TL866II Plus programmer.
Based on 32-bit MCU with 120MHZ and 4-layer PCB design, this professional T48 programmer support high-capacity NAND EMMC up to 256GB and
programming speed is much higher. Suppport high-voltage chips, VPP Maximum up to 25V, that is what TL866II cannot achieve.
XGECU T48 support multilanguage menu (English, Chinese, Russian, Polish, German, Spanish, Portuguese, Turkish, Czech, Italian).
XGECU T48 Programmer Support Device List:
www.xgecu.com/MiniPro/T48_List.txt
Latest T48 software download link (will be updated in the future):
www.mediafire.com/folder/hfg5kfj7euw5j/xgecu
T48 (TL866-3G) English manual download link:
www.xgecu.com/MiniPro/TL866II_Instructions.pdf
TL866II programmer Hilghts:
1. Support simultaneously burn with 4 Programmers each computer
2. The Minimum Volume and the lowest Power Consumption and Do not Feel any Heat in Process.
3. All chips do not need external power supply, the low power consumption of its own to ensure that the USB port can provide enough power.
4. Best internal 40 Pins over voltage protection, the strongest VCC/VPP 4-level overcurrent protection. The short-circuit do not reset the PC.
5. Wide range of chip 15000+ support, support for serial and parallel series 40/44/48PIN large capacity FLASH
6. Unique serial ICSP interface. supporting the serial download and high-speed parallel high voltage programming. Note: TL866CS does not support ICSP
7. Test CMOS4000 74/54 series integrated circuit. Can be located in the gate circuit error.
8. Chip auto serial number is the most complete and practical.
9. Original chip encryptionoperation on AVR microcontroller with internal RC Calibration byte. The Decrypt software can not be directly run on another same type of chip.

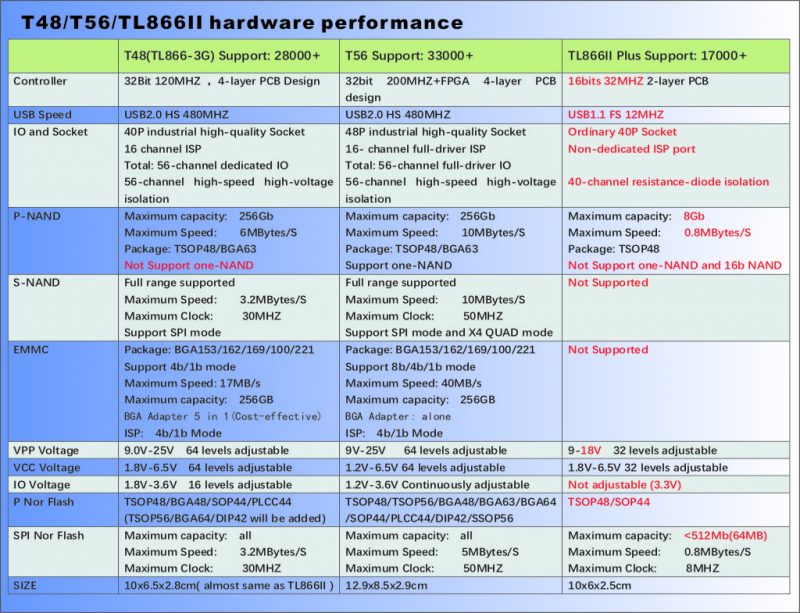

TL866II Plus vs. T48 Programmer(tl866-3g)
TL866II Plus Application Software( V7.07 )
Support for win2000/xp/2003/2008/VISAT/win7/win8/WIN10
Upgrade History
Version: V7.07 Support:15130 –2018.03.17
ADD: IC to 15130
Fix: SST39LF/VFxxxx TSOP48 Pin Detect function
Fix: Some 25 serials auto selection

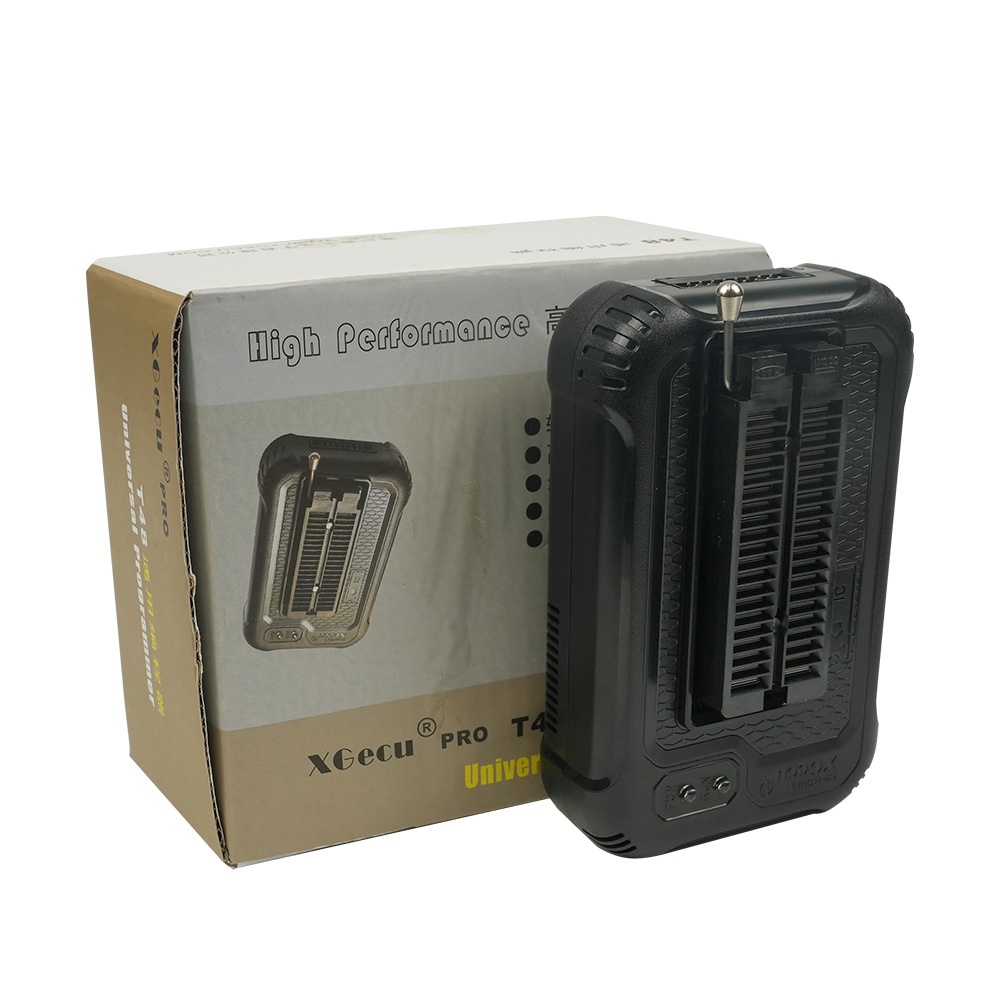

T48 Programmer Package included :
T48 Programmer Main unit
USB Cable
Software CD
Adapters kit (Option)
1. QFN8(6X8) 1pcs；
2.QFN8(5×6) 1pcs ；
3.SOP16 to DIP8 300mil 1pcs；
4.SOP8 to DIP8 200mil 1pcs ；
5.SOP8 to DIP8 150mil 1pcs ；
