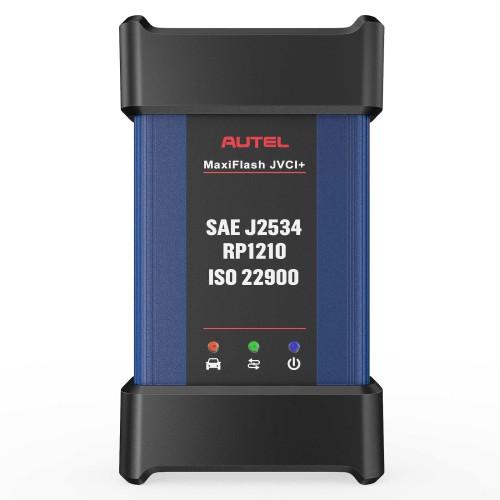

Autel MaxiFlash JVCI J2534 Interface works RP1210 ISO22900

Description

Update from Autel MaxiFlash Pro Elite,The 2025 Newest Autel MaxiFlash JVCI is a multi-protocol Pass-Thru vehicle interface,that full compliant SAE J2534-1 &J2534-2,RP1210 and ISO 22900.MaxiFlash JVCI+ will provide users with convenient PC communication and ECU reprogramming capabilities on any modern vehicle diagnostic bus.it offers the most significant features more reliability, fast performance and flexibility.
2025 MaxiFlash JVCI+ will working on CAN FD and DOIP vehicles.The CAN FD protocol is mostly applicable for GM produced in and after 2019, and the DoIP protocol mainly supports for Volvo after 2018, for Land Rover/Jaguar after 2017, for BMW F chassis and G chassis .

Notices:

• You can bind with Autel IM608 II/ IM608Pro II to working together.
• Standalone Use as Passthru J2534 Interface

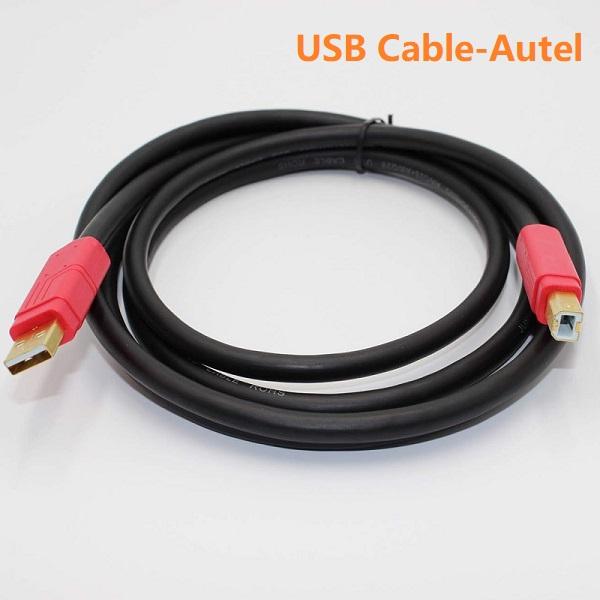

• Standard Pakcage Only JVCI+ Box ,Without OBDII cable or USB Cable.

Autel MaxiFlash JVCI Features:

1. Fully compatible with both SAE J2534-1 &J2534-2,RP1210 and ISO 22900,that performs standard Pass Thru J2534 functionality.
2. Compatible with MERCEDES XENTRY PT, Toyota Techstream, Volvo VIDA, Honda HDS, Ford FJDS and BMW ISTA+ OEM diagnostics.
3. Not only 12V ,but also support 24V
4. Without extra adapter to diagnostis CAN-FD and DOIP vehicles.
5. Fast performance ensures reprogramming even the newest controllers
6. Firmware is upgradable online.
7. Built-In Wireless with advanced networking functions and data storage.
8. 3 ways connection to PC: Wireless BlueTooth V2.1 + Ethernet DOIP,USB 2.0
9. Rugged design capable of withstanding harsh environments

ECU PROGRAMMING FOR BENZ/ BMW

• Replacing the Existing Software/ Firmware in the ECUs
• Programming New EcUs for BENZ/ BMW
• Reprograming Adaptive Data
• ECU Adaptation/ Reprogramming after Refit
• Fixing Software-controlled Drivability & Emission Issues
• Enhance the Durability of Mechanical Parts
• Improve Fuel Efficiency
• Reduce Power Loss

• Input Voltage Range: 12VDC to 24VDC
• Supply Current: 170mA @ 12VDC 100mA @ 24VDC
• Size: 149 mm (5.87″) Width: 86mm (3.38″) Height: 35 mm (1.28″)
