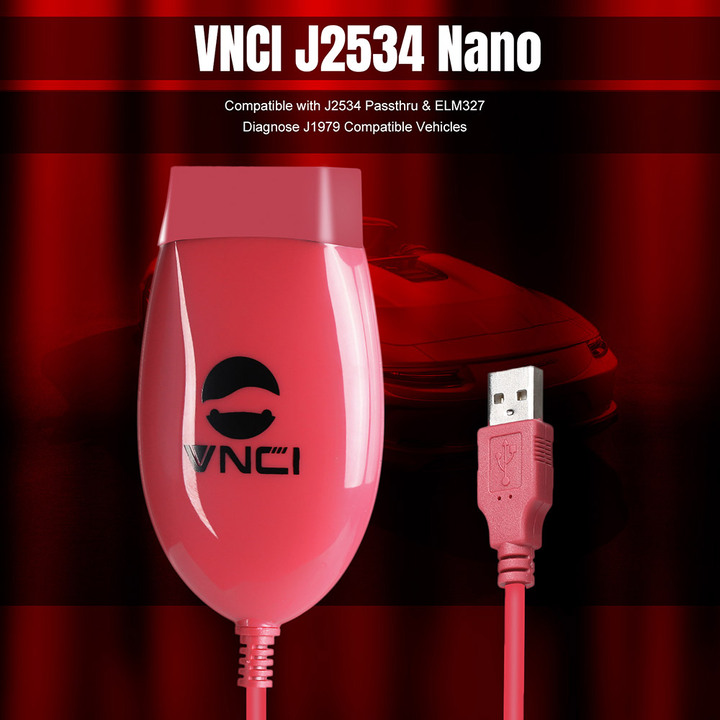

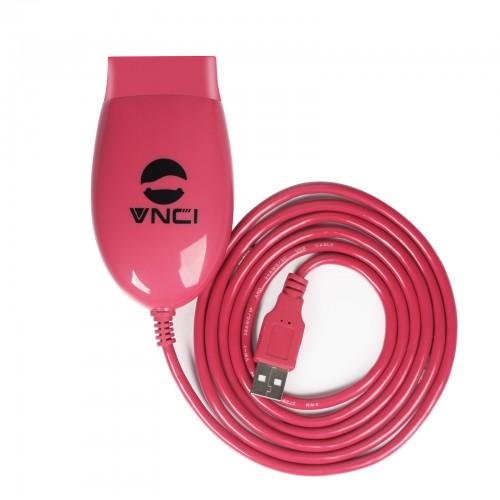

VNCI J2534 Nano Cable & J2534 Passthru and ELM327 Scanner

Description

VNCI J2534 Nano is a J2534 passthru Diagnostic cable that Supports most all of J2534 compatible software and ELM327.
It will Switch mode automatically and support Vehicle voltage 8-20V. Compare to Vgate vLinker FS Interface,VNCI J2534 Nano Cable will be The main competitors

VNCI J2534 Nano Functions:

1. Supports most all of J2534 compatible software(HDS, TIS, ODIS, VIDA, PCMFLash…).
2. Supports most all of ELM327 software(ELMConfig, Forscan, ScanMaster…).
3. Supports ECU reprogramming in J2534 mode with programming voltage.(Faster and More stability that Never let you down while reprogramming)
4. Supply free software for diagnosing J1979 compatible vehicles.

Protocols supported by VNCI J2534 Nano:

1. ISO15765 (Standard/Extended frame).
2. ISO9141.
3. ISO14230.
4. J1850 PWM (Support IFR and 2X speed mode).
5. J1850 VPW (Support 4X speed mode).
6. J1979

VNCI J2534 Cable hardware configuration:

1. ISO11898-2 high speed CAN (OBDII PIN 6 and PIN 14. Speed up to 1000Kbps).
2. ISO9141 and ISO14230 K line (OBDII PIN 7 and PIN 15).
3. J1850 PWM (OBDII PIN 2 and PIN 10).
4. J1850 VPW (OBDII PIN 2).
5. Programming voltage (OBDII PIN 12 or PIN 13. Programming voltage up to 20V).
6. Short to ground (OBDII PIN 9. Short to OBDII PIN5).
7. Dimension(L*W*H): 95mm*55mm*23mm
8. Environmental:-20℃-45℃(-4℉-113℉)
9. Vehicle voltage requirements: 8-18V DC
10. Vehicle connection: Molded DLC3(OBDII-16)
11. Host connection: USB 2.0
