Autel MaxiIM IM508S Key Programmer with 2years Free update and G-BOX3 Gift

Description

Autel MaxiIM IM508S is a fast, and professional key programming Tool. AUTEL IM508S provides you with superior special functions such as Eeprom read,Service resetting ,ECU Read&Write…Equipped with the XP200 key programmer, MaxiIM IM508 is the perfect solution for shopkeepers and technicians who demand affordable and powerful IMMO and diagnostic services.

MaxiIM IM508S Key Programmer Highlights:

1. Free 2 years update,After then will cost $249/yearly.
2. Multi-Language:English, French, German, Spanish, Portuguese, Italian, Dutch, Polish, Swedish, Korean, Japanese, and Russian .
3. Support Benz FEM/BDC Key Learning/ECU Adaptation and VW all keys lost on 3/4/5TH IMMO systems.
4. Function IMMO+ Diagnose: Powerful combination of key programming/all system diagnostics/ advanced maintenance services
5. Vehicle Supported: Powerful OE-level diagnostics for more than 80 US, Asian, and European makes and models

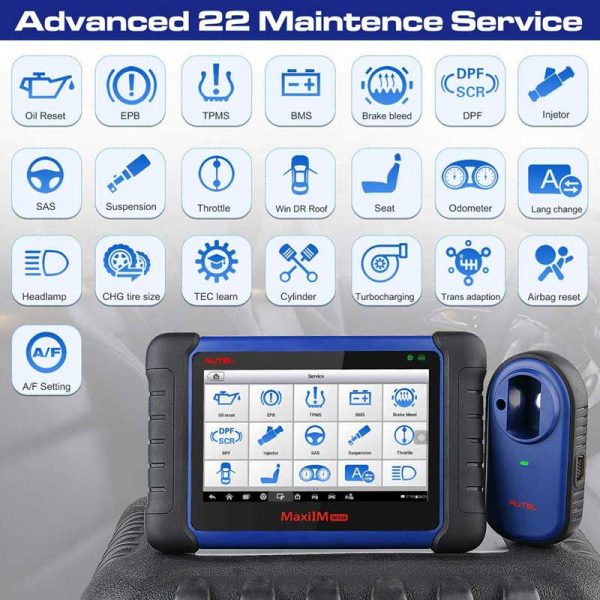

6. Advanced Maintenance Services including EPB, DPF, SAS, Oil reset, BMS and TPMS sensor ID relearn
7. Full System Diagnosis, Bi-Directional Control & 34+ Services functions: the same ability as MAXICOM MK808, & MK808BT on general diagnose and services functions.
8. New Support active tests .
9. Supports FCA SGW Automatic Authentication with AUTOAUTH, Cloud Management, AUTO VIN SCAN, Shop and Data Manager Applications.

Autel MaxiIM IM508 Function List:

• All Systems Diagnostics cover more than 80 brands Vehicles .
• AutoVIN / AutoScan
• Read / Erase Fault Codes
• View, Record, Playback Live Data and Freeze Frame Data
• Shop and Data Manager Applications
• Key Read / Write
• EEPROM / MCU Read / Write
• Read PIN / CS (All Key Lost)
• Key Generation/Learning
• Remote Learning
• Backup / Restore IMMO Data
• IMMO ECU Reset / Adaptation/Refresh / Coding
• BMW FEM / BDC Key Learning and ECU Adaptation
• BMW CAS4/3/2 Key Learning (CAS4 System need connect XP400Pro Connector)
• VW / AUDI MQB Key Learning, 48 Transponder (96-bit) Add Key, All Key Lost, A6 All
  Key Lost, and More…
• Most Commonly Reset Services functions like Oil Reset, Reset Parking Brake Pads after replacement, SAS Calibration, TPMS Sensors ID Relearn, BMS and performing active.

Autel IM508 EEPROM Read/Write Supported Types

ATMEL
AT24C01,AT24C02,AT24C04,AT24C08,AT24C16,AT24C32,AT24C64,AT24C128,AT24C256,AT24C512,AT24C1024,AT24C128_1.8
AT24C256_1.8,AT24C512_1.8,AT24C01A,AT25010,AT25020,AT25040,AT25080,AT25160,AT25320,AT25640,AT25128,AT25256
AT25512,AT25010_1.8,AT25020_1.8,AT25080_1.8,AT25320_1.8,AT25640_1.8,AT25128_1.8,AT25256_1.8,AT59C11,AT59C22
AT93C46A,AT59C13,AT93C46,AT93C46R,AT93C56,AT93C57,AT93C66,AT93C76,AT93C86

CATALYST
CAT25C01,CAT25C02,CAT25C04,CAT25C08,CAT25C16,CAT25C32,CAT25C64,CAT25C128,CAT25C256

FAIRCHILD
NM24C16U,NM24C16UT,NM24C17U,NM24C17UT,FM93CS46T

MICROCHIP
85C72,85C82,85C92,25xx080,25xx160,25xx320,25xx640,25xx040_TSSOP,25xx320_TSSOP,25xx640_TSSOP,93C06,25xx040
93C46X,93C46A,93C46,93C46AX,93C46BX_93C46CX,93C56A,93C56,93C66A,93C66,93C76A,93C76,93C86A,93C86

NXP
PCF8582C,PCF8594C,PCF8598C

NATIONAL
NM93C13,NM93C14,NM93CS06,NM93C14TM8,NM93CS46,NM93CS56,NM93CS66

OKI
MSM16911

SONY
CXK1011,CXK1012,CXK1013

Seiko
S_24S45,S_24H30,S_24H30_SOP8,S_24H45,S_24H45_SOP8,S_24S30

ST
M24C01,M24C02,M24C04,M24C08,M24C16,M24C32,M24C64,ST24x01/ST25x01,ST24x02/ST25x02,ST24x04/ST25x04
ST24x08/ST25x08,ST24x16,ST25x16,AT25040_1.8,AT25160_1.8,M95010,M95020,M95160,M95040,M95080,M35080,M95320
M95640,M95256,M95128,M95512,M93C46,M93C56,M93C66,M93C76,M93C86,M93S46,M93S56,M93S66

TOSHIBA
TC89101,TC89102,TC89121,TC89122

TMC
TMC93LC46,TMC93LC56,TMC93LC57,TMC93LC66,TMC93LC86

XICOR
X5043,X5045,X25043,X25045,X24C44

9S12 Read/Write Supported Types
FREESCALE
MC9S12DG128

 MaxiIM IM508 Supported Protocols:

• ISO9141-2, ISO14230-2,ISO15765, K/L-Line, Flashing Code, SAE-J1850 VPW,SAE-J1850 PWM,
• ISO11898 (Highspeed, Middlespeed, Lowspeed and Singlewire CAN, fault-tolerant CAN),
• SAE J2610,GM UART,UART Echo Byte Protocol, Honda Diag-H Protocol, TP2.0, TP1.6

MaxiIM IM508S Key Programmer Kit included :

• MaxiIM IM508S 7inch Tablet
• Main cable
• XP200 Key Programmer(Access the key chip,read retrieve and write key information without connection Vehicle)
• AAC001–MED17 Cable
• Honda-3 Adaptor
• KIA-20 Adaptor
• KIA-10 Adaptor
• Mazda-17 Adaptor
• USB Power Adapter
• Mini USB Cable
• GBOX3 programmer
