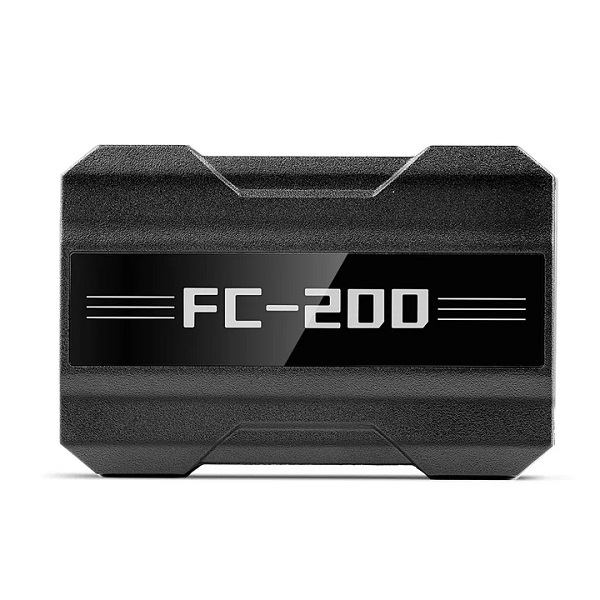

CGDI FC200 ECU programmer, BMW/BENZ/VW ECU CLONE TOOL

Description

CGDI FC200 ECU programmer is new device which is designed for ECU/EGS clone, supports functions including data reading and writing, ISN acquisition, disassembly matching, module clone, VIN modification and DTC shielding ect .
CGDI FC200 supports 4200 kinds of ECU, 3 tyeps of operation modes, and covers 80% of the models at the market.FC200 is new ECU Clone tool replace CGDI AT200 ECU Programmer.

CGDI FC200 ECU Programmer Highlights:

1. Auto ECU Clone special for BMW, ECU Data reading, writing and clone.Support almost all the BMW ECU model: MSV90/ MSD85 MSD87 N20 N55 B48 B58 etc.
   When you repalce the damage ECU with one second-hand computer ,You will just need use this CGDI FC200 to read the original computer data and then clone it
2. Support BMW all keys lost for BMW 3 Series 5 Series 7 Series X5 X6 GT535 Six-cylinder engine. It will Read ISN Code by OBD for Programming BMW keys
3. FC200 not only support BMW ECU but also support over three thousands of ECUs like KTAG, Kess,kessy ,Dimsport etc.
   CHECK CGDI FC200 ECU CLONE List
4. Support ECU model and Bosch search by number, avoid the trouble of level selection, and enter the function interface as quickly as possible.
5. With CAN-bus, and No Disassembly (platform mode) and Boot mode
6. Visualized Wiring Diagram,1:1 simulation, bright colors, to avoid wiring errors.
7. Free update online one year(after expied will charge 200usd/year) and Multi-Languages supported English, French( Spanish and Polish need pay extra fees).
8. Full Version with All License Activated ,New Denso ECU read/write function (A1000010) and CHINA DELPHI MTxx read/write function (A100000F) for Free.

FC200 ECU Programmer Powerful Functions:

1. Original parts Protection
FC200 supports OBD and platform mode for more than 98% ecu and egs, no need to open shell, no punch, protect origianal parts of the vehicle.

2. Smart Identification
The “identification” function can help users diagnose whether the ECU module is communicating and check whether the wiring is wrong.
If ECU module is not damaged and can be communicated, wiring is correct and identification is successful, can read chip and firmware information.

3. Module Clone
Supports ECU/EGS reading& writing and modules clone, synchronization matching free, no need online programming.
Flash data by area, automatically check, protect chips and modules furthest

4. ISN Reading and Writing
Supports all BMW series (including Mini) ECU ISN code acquisition , convenient for all keys lost matching and anti-theft fault maintenance.

5. VIN Writing
Solve the problem of double VIN or VIN mismatch of vehicles, convenient for vehicle maintenance.

6. Data Processing
Support data analysis and modification for the 4th and 5th generations of Audi/Seat/Skoda/Volkswagen ECUs
Turn off anti-theft system for Bosch MED/EDC17 series ECU( VAG MEDC17 series, BMW/Mini MEVD17/EDC17 series, Hyundai/Kia EDC17/MED(G)17 series)

CG FC200 Latest Update Information:

 Lastest Update V1.2.5.0 Notice(2025/Jan/04):

1. Added the “Three readiness monitors not ready” function of GM E37\ E38\ E39\ E39A\ E78\ E80\ E83\ E84 ECU
2. Added MELCO (Mitsubishi) series BENCH mode ECU:
   MELCO E6T6xxxx MH8501F
   MELCO E6TAxxxx MPC5746R
   MELCO E6T85xxx MH8601 test
   MELCO E6T8xxxx MH8115 test
   MELCO E6T7xxxx MH8611 test
   MELCO E6T86xxx MH8115 test
3. Added BOSCH (Bosch) BENCH mode ECU\TCU:
   MG1CS080 TC275TP test
   INVCON2.3 TC1797
   HV17.4.1 TC1797
4. Added the “Repair of Lovol engine duration” of data processing to Lovol ECU: EDC17C63, EDC17CV54
5. Added the BOOT mode read and write function for GM E83
6. Added the function of reading and writing DFlash, PFlash, Maps, and ExtEEPROM separately for Mercedes-Benz SIM271DE
7. Added the “Unlock” function of VOLVO MB279700-96xx
8. Added “Read Password” function in Hyundai Kia CPEGP2.10.1 boot mode

V1.2.4.3 (2024.11.06) Update Read, write, Modify VIN and one-click IMMO OFF for : M7,M7.9.7 ,M7.9.7.1,ME7 and ME7.8.8 etc

CG FC200 V1.2.4.0 Registered Version New (2024.11.25)

1. Added Paypal payment function in non-simplified Chinese version
2. Added DELPHI BOOT mode ECU:
DCM6.2V MPC5674
DCM6.2A MPC5674
DCM6.2C MPC5674
DCM3.5 MPC5565
DCM6.1 TC1797

3. Added MARELLI BOOT mode ECU:
8TDW MPC5553
8TDF MPC5553 test
8GMF MPC5553 test
8F3 MPC5553 test
8DF MPC5553 test
8GMK SPC564A
8GML SPC564A test
8GSF MPC5565 test
8GMF MPC5565 test
8DF MPC5565 test
8F2 MPC5565 test
8F3 MPC5565 test
8GMW MPC5565 test
8GSW MPC5565 test
8DS MPC5565 test
9GF SPC564A test
9GC SPC564A test
9DF SPC5644 test
9DF_HW2 SPC5644 test
10GF SPC564A test
METATRON_MF4 MPC5674F test

4. New GM TCU: ACDelco T87A SPC564A, BOSCH T93 SPC5888

5. Other new ECUs:
CONTINENTAL SID605 SPC564A test (Boot mode)
BOSCH MED17.7.7 (Boot mode)
BOSCH EDC17CV54 (BENCH/Boot mode)
ACDelco E78 MPC5566 (Boot mode)

6. Other new features:
BOSCH EDC17CV54 adds VIN change function
M7, ME7.8.8 adds unlock function
Adds Volkswagen (WV) MED17.1, MED17.5.5 password reading method

7. Bug fixes
Optimized the main interface ECU search function
Solved the PFlash data encryption problem of M7, ME7.8.8
Fixed the MT86 PFlash reading and writing failure problem
Iveco BOSCH EDC17C69 ECU adds BENCH mode connection diagram

V1.0.7.0 Registered Version NEW (2022.06.28)
1.Added Bosch ST10 series engine boot modes: M7.9.7, ME7.9.71, ME7.9.7, ME7.4.5, ME7.9.9, MED7.6.1, MSE3
2.Added Hyundai and Kia KEFICO series engine boot modes: CPEGD2.20.1, CPEGD2.20.2, CPEGD2.20.3, CPEGD2.20.4
3.Added Delphi engine boot mode: CRD2.x MPC5566
4.New Bosch boot mode engines: ME17.9.23, MED17.7.5, ME17.9.7, M17.8.7, MED17.8.2, EDC17CP65, ME17.8.5
5.Newly added engines to modify the VIN function: EDC17C63, EDC17CV44, MED17.1.1, MED17.8.2, MEDG17.0
6.Modify the VIN function and add the function of forcing a new VIN to be written
7.Fix some bugs and optimize software performance

FC200 ECU Programmer V1.0.6.0 (2022.04.26)
Add Bosch Engine Model:

EDC17C19
EDC17C73
EDC17C10
ME17.5.6
ME17.5.20
ME17.5.24
ME17.9.5
ME17.9.71
MEVD17.4.4
MG1CS042AA
EDC17C10
EDC17U01
Add Engine Computer Edit Vin Function:

EDC17C63
EDC17C76
EDC17C79
EDC17CP52
MEG17.9.12
MED17.8.10
MED17.8.32
MED17 (China)
MED17.9.8
ME17.8.8
ME17.9.23
ME17.9.64
MEG17.9.8

FC200 V1.0.5.0 (2022.02.28)

1. Add Turkish language version
2. Added BOOT mode of bosch engine computer
ME17.5.26
ME17.8.32
ME17.9.1
ME17.8.61
MED17.8.31
MED17.9.8
MED17C17.9
MED17C81
3. Added Bosch engine computer Bench Mode
ME17.7.8
ME17.9.1
MED17.8.2
MED17.9.8
EDC17C45
4. Bug fixed and Software performance improved

CGDI FC200 ECU Programmer V1.0.4.0 (2022.01.23)

1.The main interface adds a search button by brand
2.New Bosch engine boot modes: MEDG17.0, EDC17CP05, ME17.9.51, ME17.0.3, ME17.9.21.1, ME17.9.74, MED17.9.3, EDC17CP18, ME17.9.52, MEV17.4, EDC17CP10, ME17 .9.21, MEV17.2.1, ME17.9.20, ME17.1.6, ME17.1.1, ME17.2.4, EDC17CP09, MED17.1.10, ME17.7, ME17.3.0, ME17.8.31, MED17.8.10
3.Added Bosch engine platform mode: MG1CS016
4.New Bosch engines (beta): MD1CP001, MD1CP002, MG1CS008, MG1CS011, MG1CS111, MD1CP006, MD1CP014, MD1CS001, MD1CS003, MG1CS018, MG1CS028
5.New engines with modified VIN function: EDC17C18, EDC17C19, EDC17C49, EDC17C74, EDC17CP54, EDC17CP60, ME17.1.6, ME17.2, ME17.2.4, ME17.5.24, ME17.5.26, ME17.7.20, MED17.1.62, MED17.3.5, MED17.9.3, MED17.9.63
6.Optimize the function of SH275xx series gearbox
7.Fix some bugs and optimize software performance
