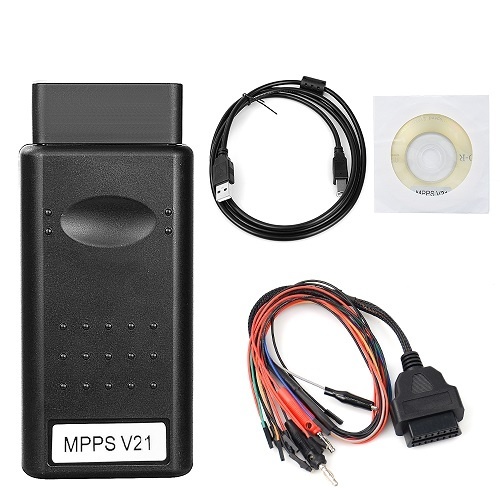

MPPS ECU Chip tuning tool Newest MPPS V21 unlocked

Description

The MPPS V21 ECU Programmer is a powerful ECU Tuning tool. It offers general reading / writing operations and checksum support.You can use it specially for working on EDC15 ,EDC16 and EDC17 modules.

There have different Versions MPPS cable:

1. Red MPPS V21 Unlocked version(Umlimted use)
2. MPPS V21(black,use 10 times )
3. Here MPPS V22 cable Last version

however it also includes some additional features:

• Excellent recovery functions. In some cases MPPS can recover ECU’s which others tools can not even make communications with. On certain controllers it even works when with no program is present (a blank memory).
• Selectable full / partial reading and writing when the ECU allows this function.
• Selectable reading / writing speed.
• Writing “changes only” function for faster programming (when supported by the ECU).
• Auto detection of K-Line/CAN, and option to bypass and force preferred means of communication.
• Temporary bypass of immobiliser to allow flashing on the bench on ME7 systems.
• Boot mode support for ECU’s with C167 and ST10 processors.
• EEprom read/write functions for some ECU’s are included.
• VAG MEDC17 TPROT level checking without opening the ECU.
• Special file utility for creating OBD unlock files from VAS FRF containers.

MPPS Support Vehicle Models:

• Alfa Romeo ,Audi,Bmw,Chevrolet,Chrysler,Citroen,Ducati ,Fiat,Ford,
• Generic Bosch,Holden,Hyundai,Isuzu,Iveco,Kia ,Lancia,Land Rover,LondonTaxis
• MCC-Smart ,Mercedes,MiniCooper,Mitsubishi,Nissan,Opel ,Peugeot ,Porsche,Renault
• Saab ,Seat ,Skoda,Suzuki ,Vauxhall,Volkswagen,Volvo.

What’s add features on MPPS V21 ?

1. Fiat 6F3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
2. Fiat 6JF and Fiat 8DF – Full Read / Write Micro and EEprom over K-line.
3. Fiat 8F2 and 8F3– Full Read / Write Micro and EEprom over K-line and CAN.
4. Fiat 8GM ,8GS– Full Read / Write Micro and EEprom over CAN.
5. Fiat 5SF3 – Full Read / Write Flash and EEprom over CAN.
6. Fiat 5SF3 – Full Read / Write EEprom over K-Line.
7. Fiat 5SF8 – Full Read / Write Flash and EEprom over K-line and CAN.
8. Fiat 5SF9 – Full Read / Write Flash and EEprom over CAN.
9. Fiat ME7.9.10,Fiat ME7.6.3 – Full Read / Write Micro over CAN.
10. Opel 6O2 ,Opel 6O3 – Full Read / Write Micro, Flash and EEprom over K-line and CAN.
11. Opel 6JO – Full Read / Write Micro and EEprom over K-line.

MPPS V16.1.02 Features:

• Recalculation of checksum
  Read / write flash ECU
• Auto detect ECU and processor type.No need to select from list,everything si automatic!
• Read/Write of all memories eeprom,irom,xrom(where possible)
• Patch function for OBD Flashing of TPROT ECU’s (support only VAG at the moment)
• TPROT/DS check feature,for testing if TPROT is actvie without opening ECU.
• Supports Bosch upto TP12
• Support for unlocking fo VAG Simens(current only for ECU’s without password protection).
• Support for unlocking of VAG Simos PCR and Simos 8.
• Checksum correction supported for Bosch MEDC17.

Part of MPPS V16 Support ECU List:

• 1.4L Bosch ME7.5 K-Line
• 1.8 Turbo Bosch MED9.510 K-Line/CAN
• 1.6 TDI Siemens Sinmos Pcr2.x Can
• 1.9 SDI Bosch EDC15 K-Line
• 1.9 TDI Bosch EDC15 K-Line
• 1.9 TDI Bosch EDC16U1 K-Line/CAN
• 1.9 TDI PD Bosch EDC16U34 K-Line/CAN
• 2.0 TDI Bosch EDC16U1 K-Line/CAN
• 2.0 TDI Bosch EDC16U31 K-Line/CAN
• 2.0 TDI PD Bosch EDC16U34 K-Line/CAN
• 1.6 FSI Bosch MED9.510 K-Line/CAN
• 1.8L Bosch ME7.5 K-Line
• 1.8 Turbo Bosch ME7.5 K-Line
• 2.0L Bosch ME7.5 K-Line
• 2.0L Bosch ME7.1.1 K-Line
• 2.0 FSI Bosch MED9.5.10 K-Line/CAN
• 2.0 TFSI Bosch MED9.1 CAN
• 2.3 V5 Bosch ME7.1.1 K-Line
• 2.8L 12v Bosch ME7.1 K-Line
• 2.8L 24v Bosch ME7.1 K-Line
• 3.2L Bosch ME7.1.1 K-Line
• 3.2L Bosch ME7.1.1 CAN
• 1.8L Bosch M5.92 K-Line
