Vetronix GM Tech2 Diagnostic Scanner with Candi Module
The Vetronix GM Tech2 is the best scan tool used in all GM dealers. Model coverage includes all makes and models of GM vehicles including passenger cars, trucks and vans. GM TECH2 Diagnostic Kit will support Vehicles from 1996 to 2014 year. For GM vehicles before 1996 you will need a Tech1A achieve OEM level functionality.
The Tech 2 will allow your shop to be to ‘dealer level’ capable on all covered GM cars. Scan, pull codes, graph data and have all bi-directional controls available for all vehicle systems including Powertrain, Body, Chassis and Network. This tool will also allow you to offline re-program controllers with the TIS2000 programmer .
Tech2 Diagnostic Scanner Software List:
GM English 32.007
SAAB English 148
OPEL English 165 (Support Cars from 1997-2014)
Holden English 149 (Support Cars from 1999-2013)
SUZUKI English 01.210.020
ISUZU English K line 11.53
CAN line 107.021
GM Tech2 Diagnostic Kit Features
1. Large, easy-to-read back lit screen.
2.Support for on-board diagnostics on all GM vehicles 1992 thru 2017.
3.Removable hardware modules provide insurance against scan tool obsolescence.
4. Check the status of vehicle diagnostic tests as they run.
5.Ability to capture stored DTCs, Freeze Frame, and Failure Record for later review.
6. With the newest software, Tech2 will provide full bi-directional control when performing power train, chassis, and body diagnostics.
As we know, To diagnostics on a vehicle that uses the Controller Area Network(CAN) protocol, you will need the Tech 2 scanner and connected the CANdi module.
The Following GM Vehicles in need The CANdi Interface work with Tech2 Diagnostic Tester.
05 Cadillac STS (3.6L / 4.6L)
05 Chevrolet Cobalt (2.2L)
05 Chevrolet Corvette (6.0L)
05 Chevrolet Equinox (3.4L)
05 Chevrolet TrailBlazer (5.3L)
05 Chevrolet SSR (6.0L)
05 Buick Allure (3.6L)
05 Buick LaCrosse (3.6L)
05 Buick Rainier (5.3L)
04-05 Buick Rendezvous (3.6L)
04-05 Cadillac CTS (3.6L)
04-05 Cadillac SRX (3.6L / 4.6L)
04-05 Cadillac XLR (4.6L)
04 Chevrolet Malibu (Body/Chassis only)
05 Chevrolet Malibu (3.5L)
05 GMC Envoy (5.3L)
05 Pontiac G6 (3.5L)
05 Pontiac GTO (6.0L)
05 Pontiac Pursuit (2.2L)

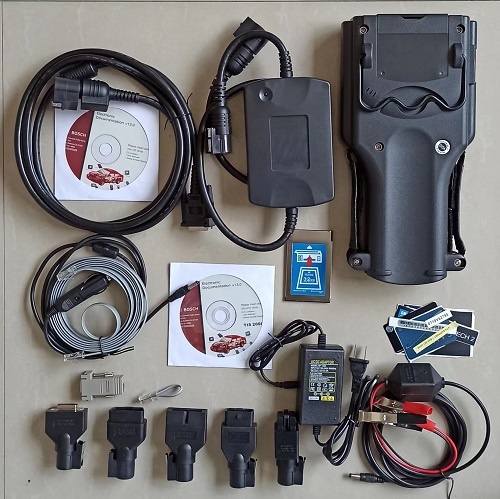

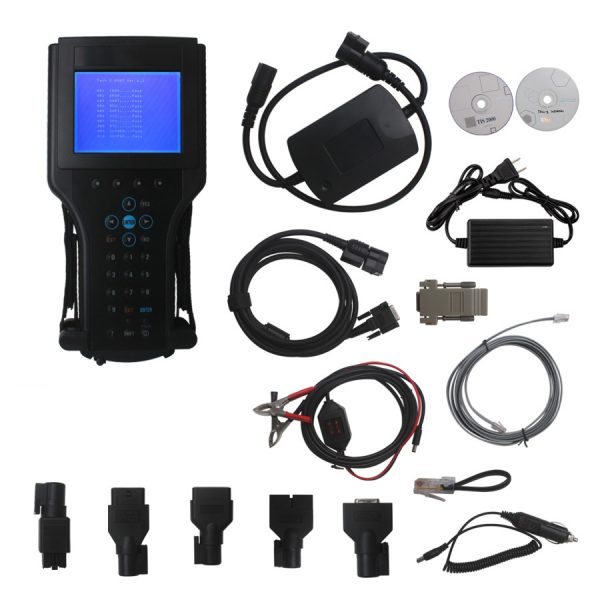

What’s in GM Tech2 Package ?
Tech2 Tester Main Unit
32 MB PCMCIA Card with one Car software(If need more card ,check this 32MB Card)
DLC Cable, DLC Loopback Adapter
12V Cigarette Lighter Power Cable

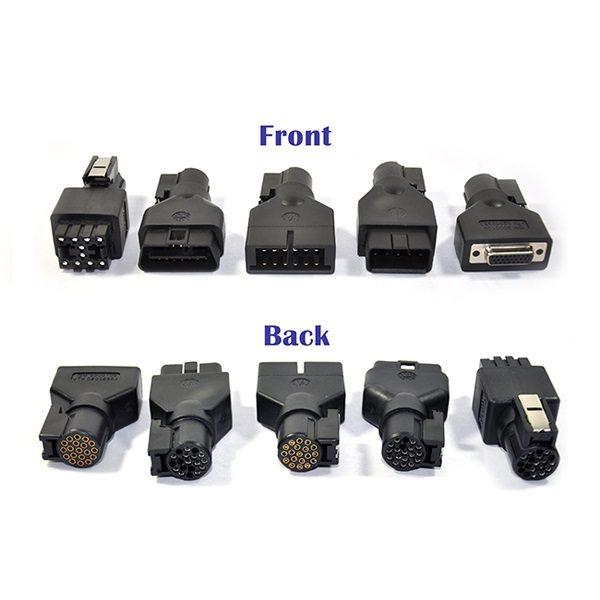

SAE 16/19 Adapter
NAO 12/19 Adapter
Battery Power Cable
TIS 2000 CD
