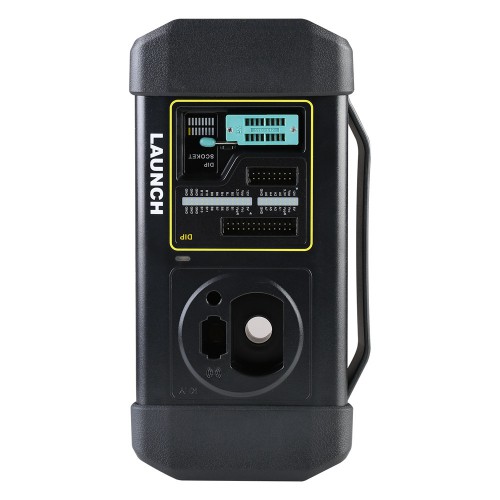

Launch XPROG3 Immobilizer Programmer is not only one powerful Key programmer but also ECU Programming/Cloning Device . MCU&EEPROM manufacturers always been supported great and generally .
Xprog3 Immo Box Compatible with most Launch X431 Diagnostic Machine such as X431 PRO GT( V4.0), X-431 PRO3 V4.0, X431 PRO 5, X-431 PAD III ,X431 PAD V and X431 PAD7.
If you do not know whether it compatible Your X431 scanner ,You can send US Serial number for Confirm!
Launch XProg 3 Immo Programmer Features:
1. X-PROG 3 enables reading/writing EEPROM, on-board MCU and BMW CAS4+/FEM chips, Mercedes-Benz infrared keys, generating special keys, reading BMW engine ISN code.
2 Supported systems: Automatic Transmission, Instrument System, CAS, Body System, Lock System, etc.
3. Reads & writes most Engine/Gearbox ECUs without disassembling the shell
4.Launch X-Prog 3 Supported brands: VW, AUDI, SKODA, SEAT, BMW, MERCEDES-BENZ, TOYOTA, etc. More models will be add.
IMMO functions :enables Anti-theft type identification, Remote control matching, Key chip reading & matching, Pin code reading and IMMO ECU replacement.
ECU Replace/Clone Functions:
(Reads & writes most Engine/Gearbox ECUs without disassembling the shell)
1. Supports VW/AUDI MQB platform engine ECU and gearbox ECU replacement or cloning (Read engine ECU data directly from the key).
2. Supports reading, writing & cloning the ECU for the fourth-generation of VW/AUDI Bosch ,Siemens and UDS engine.
3. Supports ECU replacement for the fifth-generation of Audi (0AW/0B5) gearbox.
4. Supports the all lost and replacement for the fourth generation of AUDI EZS, comfortable ECU, and KESSY IC.
5. Supports BMW E chassis 8HP gearbox ECU reprogramming to empty.
6. Supports the BMW F and G chassis 8HP gearbox ECU reprogramming to empty.
7. Supports the BMW CAS4/CAS4+ module replacement.
8. Supports the ECU cloning and replacement for BMW Siemens engines.
9. Erase the password for Mercedes-Benz engine and gearbox within 3S.
10. Add the function of calculating the password for the Mercedes-Benz key within 1 minute.
11. Backup/restore programming data for Bosch/Siemens engine ECU.
Supported common ECU/MCU/EEPROM manufacturers with more than 1,000 product models
How to Connect LAUNCH XPROG3 working?
1: Directly connect to OBDII Cable for key matching, data reading and writing, etc
2: Place the anti-theft EEPROM or MCU chip in the chip burning socket, and then insert the chip burning socket into the slot of the immobilizer programmer locker and lock it to realize the data interaction between the IC anti-theft chip and the diagnostic host
3: After removing the ECU from the car, connect the anti-theft ECU pin to the DIY slot of the immobilizer programmer through the cable to realize the data interaction between the anti-theft ECU and the diagnostic host.
Launch X-Prog 3 Package included :
• Launch XProg3 MUX
• Main diagnostic cable
• The fourth-generation data acquisition cable
• The fourth-generation of EEPROM data acquisition cable(without dismantling dashboard)
• BENCH mode cable
• MCU converter V1
• MCU converter V2
• MCU cable with multiple leads
• EEPROM chip adaptor
• Benz infrared analog acquisition key
• MCU cable with multiple leads
• EEPROM converter
• Power adaptor
• Manual Book
