Description
Tsla PRO diagnostic Tool v2019 is profesional level and allows to perform full diagnostic work, reads modules like: ESP, TPMS, BMW, TAS, EAS, THC, PARK2, SEC, SDM by Bosh, SDM, DH, BDY, Alerts and others. Tsla PRO is the First Diagnostic and Programming Tool for Tesla S, X, 3 and 7 models

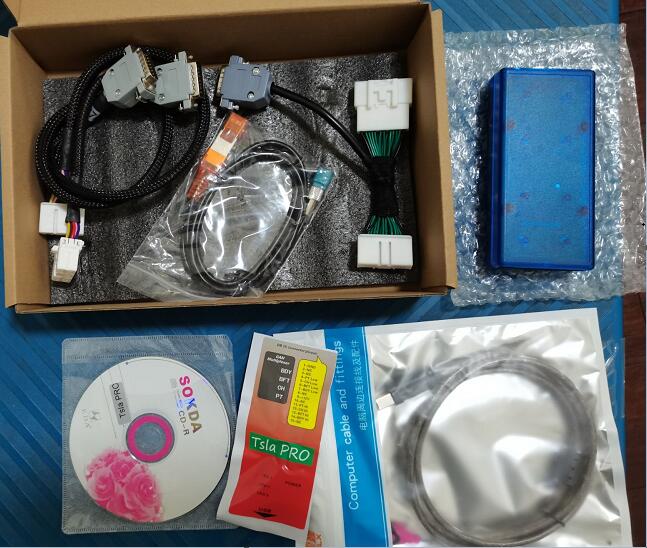

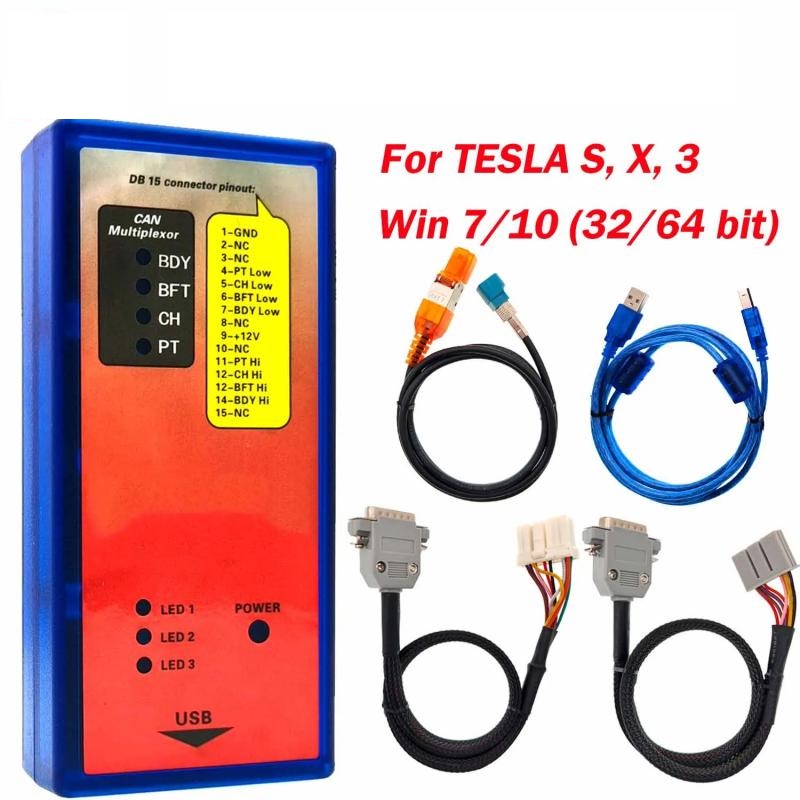

Package included
1 x Tsla PRO device
1 x X437 Connector (used in TESLA Model S pre September/2015)
1 x X437A Connector (used in TESLA Model S, X,3 post September/2015
1 x USB cable
Tsla PRO Scanner Notices:
1.You must be aware of the risk of loss if something went wrong (learn keys or make adaptations of BMS controller or something else)
2.You must have electronic skills which allow you to make adapters yourself and the connection between Tsla PRO and the vehicle’s CAN interface.

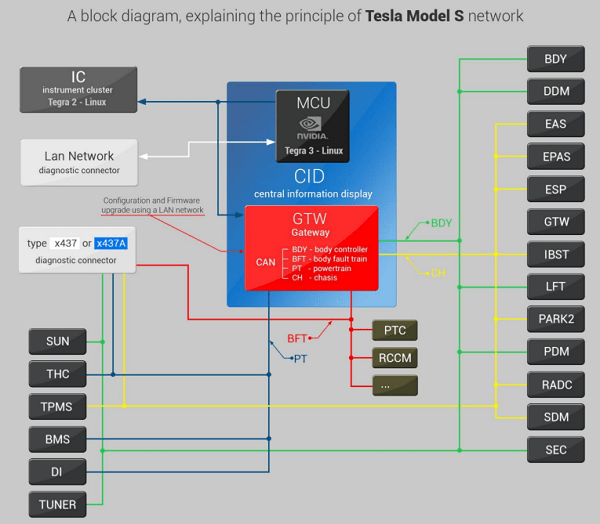

3.Tsla PRO uses the CAN network to communicate with the ECU. Therefore, you will not have access to firmware, navigation update, configuration because it cannot be done via CAN. All mentioned things do by LAN on IC,CID not via CAN network
4.Software installed on Windows 7 and Windows 10, English Language only
Tsla PRO software Update News :
2020.11.16 – Beta Battery Energy data reading by can, factory mode (updated).
2020.11.05 – Global DTC decoding codes update.
2020.10.26 – some Lan functions added.(wakeup,pintodrive,park dtc base)
2020.10.23 – CID commands Service and Factory Redeploy,
2020.10.22 – realtime by can level measure of TAS (EAS) Beta.(add some DTC base)
2020.09.25 – BMS contactor replacement procedure reset u019
2020.09.24 – m3 sdm read, erase dtc by can.
2020.09.21 last update.(Diag,Develop,FMODE by IC,Valet by LAN)
2019.05.23 NEW SDM by BOSH Module X and 3 model (read,clear fault codes and R/W EEPROM clear CRASH log.)
ALERTS – Alerts on CAN bus (read alerts codes updated BMS 2018.09.14 BETA STAGE !)
BDY – Body controller on CAN bus
DH – Door Handles – Learn Front Driver Side – CAN BDY -125 kbps (BETA Stage – added 15.07.2019)
SDM – Supplemental Deployment Module S model (read,clear fault codes,clear CRASH log by Boot mode pin.)
SDM by BOSH Module X and 3 model (read,clear fault codes and R/W EEPROM clear CRASH log.)
SEC – Security controller (Add Keyfob Key)
PARK2 – Parktronic sensors (read and decode fault codes,erase stored fault codes) supported until 06.2016
THC – Thermal controller (Airpurge function)
EAS – Electronic Airsuspension System (read,decode,erase fault codes, exit service mode ) supported until 06.2016
TAS – Tesla Airsuspension System (erase fault codes,clear Crash event, exit service mode ) after 06.2016
BMS – Battery control Module (reset alert warnings w163,w026,w152,w153,w023,read softpack)
TPMS – Tyre Pressure (read sensor ID stored in memory it usefull if you need to make new non tesla sensor)
ESP – Electronic stability system (read and decode fault codes,erase stored fault codes)
