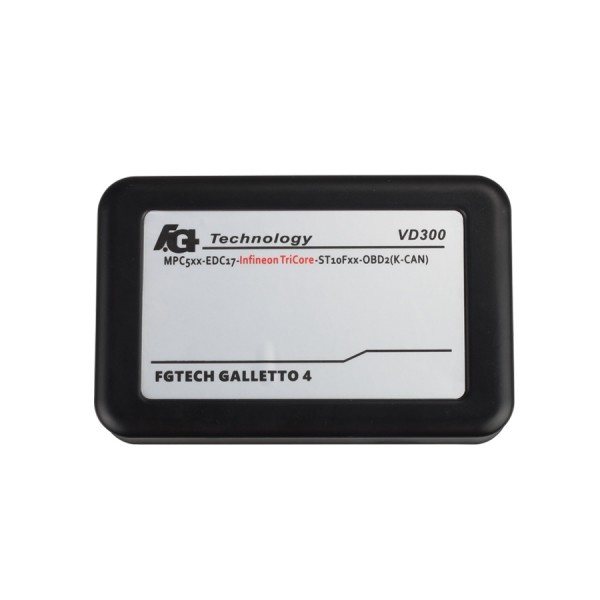

VD300 FGTech Galletto 4 High quality FGTech ECU programmer

VD300 FGTech Galletto 4 Boot Mode System:

NEW JTAG – BDM – MOTOROLA – FREESCALE – INFINEON
Freescale MPC 5553/5554/5565/5566 NEXSUS PORT New IAW MJD 8F2 – Mair 8GMF
New Delphy DCM3.5xx DCM3.7xx TRW
Motorola Freescale MPC 555/556/561/562/563/564/565
Motorola MC 68332 – MC YQQCU – MC 68377 Trionic 5/7/8 GM-OPEL-SAAB
Motorola MC 68376 Campi 01 Lamborghini – Lotus
Motorola MC 68336 MEMS D5 ROVER
Motorola ZC 439615 – ZC 439507 IAW FIAT – VAG
New Line OBD protocols VPM GM – Hummer-Corvette-Munstang-Blazer-Cadilac
New Line OBD protocols Tx-Rx – Subaru – Mitsubischi – Hitachi – Denso ecu

VD300 FGTech Automatic Checksum:

All old protocols included from Bosch MExx / EDCxx / Marelli / Siemens / Delpy / Lucas / Denso
Boot Mode C167x / ST10, Boot Mode Infineon With password Bosch , Siemens
Motorola MC68332 – MCYQQCU – MC68377 , MC68376 , MC68336, ZC439615 ,ZC439507
Motorola Freescale MPC 555/556/561/562/563/564/565
Freescale MPC 5553/5554/5565/5566
BDM

5-30V Car / Industrial Vehicles, L line / K line KWP, CAN
Can Bus V2.0 50Kb > 1000Kb
J1850 VPW PWM GM -FORD
Rx Tx RS232,
RS 485,
Automatic setup Pull up K-L line 250, 500, 1000 ohm,
Automatic setup termination Can bus 0, 60,120 ohm,

VD300 FGTech Galletto  Package List:

1pc x New Version Main Interface OF VD300 FGTech
1pc x ECU Cable for Boot
1pc x Adapter for BDM to CMD with BDM Cables
3pcs x BDM Adapters
6pcs x  BDM Connectors
2pcs x Power Cable
1pc x  OBD2 Cable
1pc x  USB Cable (1.5meter)
1pc x  CD ( SW -MASTER, Documents PDF, Pictures, etc.)
