2025 New CG FC200 DAP Adapter(Toyota Denso and Delphi)

CG FC200 DAP Adapter is newest kit realsed by CGDI company,which Mainly For read Toyota’s First-generation DENSO Series, Delphi’s DCM7.1AP & DCM7.24 Chips.all jobs will done by BOOT mode. Use it together with the FC200 programmer and update software to last v1.3.3.0.

Reading and writing TC2xx (Infineon)

• DCM7.1AP— read Dflash, Pflash, modify VIN, includes a built-in verification program; ECU cloning requires customer verification upon installation.(Chinese cars, Hyundai, Kia, and Indian market models (Tata, Mahindra, Isuzu, etc.)
• DCM7.24—Chinese Yuchai

Read/write Toyota NEC76F00xx(first generation, early 2000s)

• 76F0038GD/76F0038AGD
• 76F0039GD/76F0039AGD
• 76F0040GD/76F0040AGD
• 76F0070
• 76F0085

Functions details :

1. Hyundai / Kia / Isuzu / Leyland: DCM7.1AP
2. JCB / BAIC: DCM7.24
3. Tata / Mahindra / JAC / Great Wall / Dongfeng: DCM7.1AP, DCM7.24
4. Added PCR2.1 immobilizer data parsing, and SIMOS 8.6 cloning and immobilizer data parsing functions.
5. Added Hyundai/Kia BOOT mode ECUs:SIMK41, SIMK42, SIMK43_AT, SIMK43_MT, SIMK62.
6. Fixed error “The three monitors not ready” fix for MED17.5.21 and MG7.9.8
7. Added VIN modification for MG7.9.8.
8. Toyota / Lexus Denso 76F00xx:

• DENSO 275036-xxx 76F0038AGD
• DENSO 275136-xxx 76F0038AGD
• DENSO 275036-xxx 76F0039GD
• DENSO 175822-xxx 76F0038GD
• DENSO 175822-xxx 76F0039AGD
• DENSO 175822-xxx 76F0039GD
• DENSO 175822-xxx 76F0040GD
• DENSO 275036-xxx 76F0040GD
• DENSO 275036-xxx 76F0070
• DENSO 275036-xxx 76F0085
• DENSO 275136-xxx 76F0085
• DENSO 275036-xxx 76F0040AGD
• DENSO 275922-xxx 76F0070
• DENSO 275992-xxx 76F0070

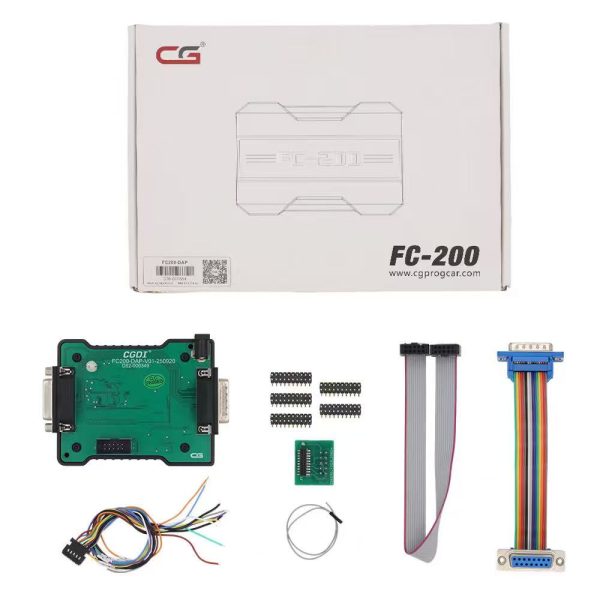

Package includes:

1. CG FC200 DAP Adapter
2. DAP cable
3. Denso 76F adapter board
4. Pin header
5. Gray ribbon cable connector
6. DB15 connector
7. DIDC ribbon cable extension cable
