Cheap VAS6154 ODIS VAG Diagnosic Tool,V1.66 for PIWIS3

Description

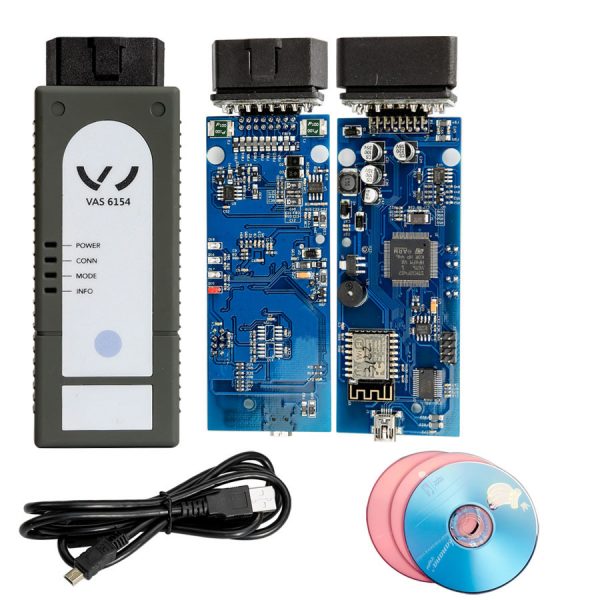

The VAS 6154 Interface is a diagnostic interface tool primarily used for Volkswagen (VW), Audi, Skoda, Seat, Bentley, and Lamborghini vehicles. It is designed for advanced vehicle diagnostics, programming, and engineering tasks, replacing older models like the VAS 5054A. Below is a detailed overview of its features and functionalities.This is cheap VAS6154 unit mainly supply for Car owner .Not support DOIP vehicleIf you run Garage ,i would advise you Better quality ones , example VNCI 6154A Interface

Difference between them cheap VAS6154 Interface :

1. FW 1.66  VAS6154 only work ODIS till V6.2 or v 5.2,it can not update firmware .
   Importly this Firmware able work on Porsche Piwis3 system ,but we do not supply this software ,You should figure out yourself .
2. FW 1.9.4.2  able work with ODIS 11 ,You can update firmware from VXManager,but not support PIWIS Diagnosis system .

Key Features of VAS 6154A:

1.  Compatibility:Supports vehicles from 2000 onwards, including new and future models under production .Works with VAG ODIS-S (Service) and ODIS-E (Engineering) software, enabling both diagnostic and programming tasks .
2.  Wireless and Wired Connectivity:Offers wireless data transmission via WLAN (802.11 ab/b/g/n) and wired connections through USB or LAN modules .
3. Connection Modes:
   **WLAN Infrastructure Mode**: Connects multiple devices through a shared network, requiring a WLAN router .
   **USB and LAN Modes**: Ensures reliable wired connections when wireless options are unavailable or restricted .
4. Diagnostic and Programming Capabilities:Performs advanced functions like ECU (Engine Control Unit) flashing, GFF (Guided Fault Finding) sessions, and measurement value analysis .
   Supports online diagnostics and programming, including security access and immobilizer matching .
5.  Cost-Effective Alternatives:Clones like the **VNCI 6154A** offer similar functionality at a fraction of the cost, making them popular among independent workshops .

ODIS Applications:

•  Vehicle Diagnostics: Identifies and troubleshoots faults in engine, transmission, and other systems.
•  Programming and Coding: Updates software, configures control units, and enables hidden features.
•  Security and Immobilizer Matching: Performs key programming and immobilizer-related tasks .

VAS6154 Technical Parameters:

• Dimensions:                       approx. 136x48x25mm
• Weight:                              approx. 150g
• Power supply:                    8-18V via vehicle connector
• Output:                              approx. 5W
• Temperature range:           Storage -20°C to +85°C, operation -20°C to +40°C
