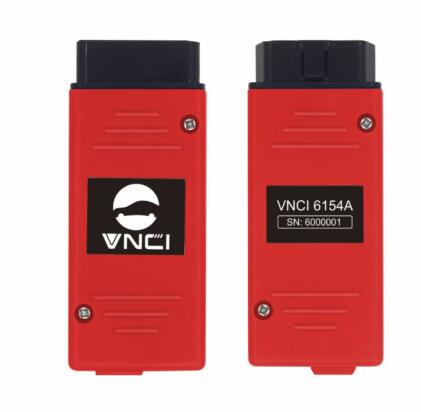

STIC SVCI 6154A Doip VAG Diagnostic Tool, New Type VNCI 6154A fixed Bugs

Description

VNCI 6154A (SVCI 6154A)is the OEM 6154A Diagnostic Adapter that compatible with lastest V11.0 ODIS-S,it have been prefect replace VAS 5054A and addly support CANFD, DOIP Protocol.VNCI 6154A is a universal diagnostic interface for the vehicles of the Volkswagen Group included VW, AUDI, SKODA, SEAT ,Bentley and Lamborghini.

New Type VNCI 6154A Notices:

1.PLEASE INSTALL ON WINDOWS 10(64BIT) AND MAKE SURE YOUR C:/ DRIVER HAVE 50GB SPACE  .
2.SVCI6154A not J2534 Passthru because it load with newer vesion Firmware .
3.You can download last OIDS Software from here:ODIS-S 9.1

New Type SVCI 6154A(Red VNCI 6154A) Arrival that Fixed some bugs:

1.Fixed that Interface heats up after long time use (lost firmware)
2.Fully Supported CAN FD and Doip protocols
3.Compatible with Oiginal ODIS all versions driver(Old 6154 only compatible with Original V24 ODIS Driver)
4.Upgrade to support ODIS-S 9.1/10.0/V11.0 and ODIS-E V14.1/V15.1/V16
5.Directly use with ODIS and no need Driver Manager

SVCI 6154A tool Highlights :

1.Compatible with lastest V11.0 ODIS-S and V16 ODIS-E, Clone ones 5054A adapter only support till V7.2.
2.Not only USB but also Wireless connection (Wireless password : 12345678)
3. Support KWP2000 protocol, UDS protocol, CAN Protocol, K-Line, and Addly CANFD and DOIP protocol for newest 2023 vehicles (5054a work from 1995-2018 year)
4.Free firmware upgrade
5.VNCI 6154a Work with original driver , and you can Custom Serial number .
6.Supports super remote diagnosis

SVCI 6154A DOIP Adapter Functions:

VNCI 6154A has all functions of ODIS software and ODIS engineer software.
SVCI 6154 helps change the series number recognized by ODIS to protect your remote operation.
VNCI 6154A super remote diagnosis function Support remote diagnosis, remote online programming, remote to do Immobilizer function etc
SVCI DOIP 6154A device manager unified management, Automatic loading of ODIS diagnostic software and ODIS software without registration.

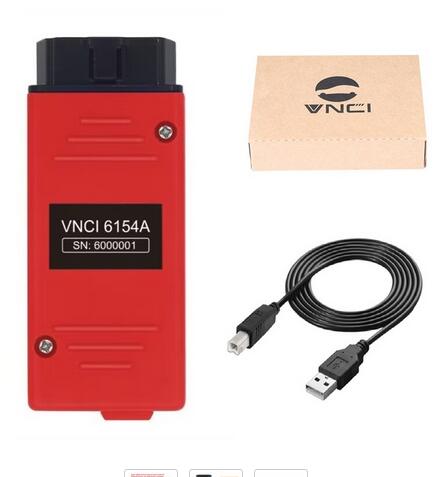

STIC SVCI DOIP 6154A Kit included :

VNCI 6154 DOIP VCI
USB CABLE
USER MANUAL BOOK
ODIS V9.1 ON U-Disk(option)

STIC SVCI 6154A Reviwers:

1. I got the SVCI 6154A. Tried Odis 9.1.0 and Golf 7, works perfect for me. First impression runs much better than vxdiag. It is recognized as 6154A.
   on Odis E 14.1  sees it as the 6154A diagnose head, the vehicle will be tested tomorrow.
   Haven’t tried it online yet, but will try it soon and report back
2. I want to contribute my test for SVCI 6154 Adapter:
   Tested with Odis 9.1.0 and Odis E 14.1.0 both from cartechnology.co.uk forum.
   Odis S and E recognize SVCI 6154A as VAS6154A without any problems, without additional setup, only loader is installed.
   Tested flashing on an Audi A6 4G 2017 engine control unit –> worked great –> duration of the flash approx. 3 min.
   WLAN also works perfectly.
3. Have tested this SVCI 6154 Interface now and had no issues:
   – ODIS E 12.2 flashing modules
   – ODIS S 7.2.1 GFF, online component protection, parameterisation and full SVM
