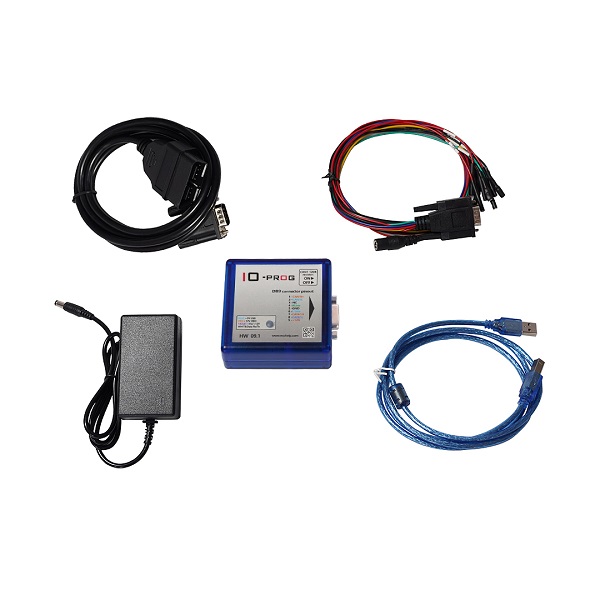

IO-Prog is the professional ECU clone programmer for GM/Opel ECU and BCM modules.
IO PROG ECU programmer,the Only ECU Clone Tool for GM/Opel
$239.00 – $339.00
Description
IO Prog ECU Programmer is a software and hardware solution designed for work with a great number of ECUs, automatic transmissions,BSI installed in VAG, Mitsubishi,
Mazda, Ford, Nissan, Subaru, Suzuki, Opel, Volvo, Alfa Romeo, Fiat, Jaguar,Land Rover, Lancia, Maseratti, Hyundai, Kia, Daewoo and other vehicles .
This is Clone ones I/O Terminal ECU Programming Tool.I/O Terminal support Safe Reading/writing of OPEL/GM ECUs by CAN (OBD or wired on the bench) .
Also software has bootpin recovery mode.Checksums testing and correction.
IO PROG GM /OPEL ECU programmer License:
- IO PROG Basic: OPEL/GM ECU ONLY
- 2022 IO PROG:OPEL/GM ECU+BCM+TCM+EPS LICENSE

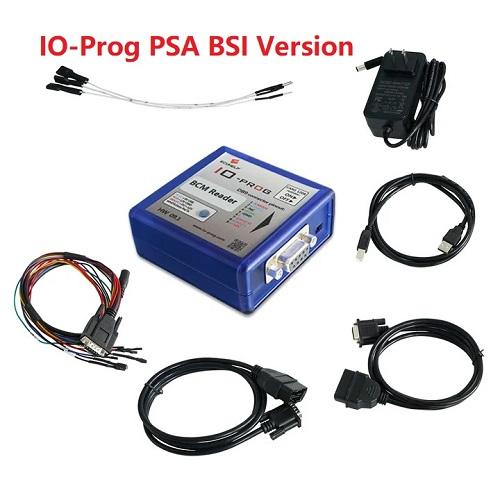

- 2023 IO PROG PSA version:Based on 2022 IO PROG, In addition,it added PSA BSI License and Ford Lear BCM MC9S12XEP768 read/write
If you have Basic IO PROG ,You can buy this upgrade card ,That will transfer it to 2023 IO PROG Full version.
Clone I/O Terminal update news:
- Relased on 2022/10/28 that added GM 5BSK CALCULATOR to calculate BCM Seed.You can cal it on ecuhelp.com or email me
- Relased on 2022/11/21 that Resolved opel ecu E98 ,E84 read Failure.
- Relased on 2023/6/05 fixed bugs Delphi BCM could not read.
- Newest I/O PROG software Download (I/O TERMINAL MULTI TOOL V46)
I/O Prog Functions Details :
1. MULTITOOL PSA BSI
- Siemens D76F0018 + 95160 KLINE (BSI-E0X-00 / BSI-F0X-00); EEPROM 95160 R / W, show PIN;
- Siemens 1L00M + 95128 / 95256 CAN (BSI-S0X-00); EEPROM 95128 / 95256 R / W, show PIN, 9S12DP512 FLASH R / W;
- Continental SC667050 + 95256 CAN (BSI-Q0X-00); EEPROM 95256 R / W, show PIN, SC667050 FLASH R / W;
- Valeo 4L00M + 95128 / 25128 CAN (BSI2004-P0X-00); EEPROM 95128 / 25128 R / W, show PIN, 9S12DP512 FLASH R / W;
- Valeo 2M48H + 24C128 CAN (BSIEV-X0X-00); EEPROM 24C128 R / W, show PIN, 9S12XEP768 FLASH R / W;
- Valeo SC667152 + 95256 CAN (BSI-N0X-00); EEPROM 95256 R / W, show PIN, SC667152 FLASH R / W;
- Johnson Controls easy CAN4 + 29LV400 + 95128 CAN (BSI2004-H0X); EEPROM 95128 R / W, show PIN, 29LV400BB FLASH R / W;
- Johnson Controls easy CAN4F1M-32 + 95128 CAN (BSI04EV-K0X); EEPROM 95128 R / W, show PIN, easy CAN4F1M-32 FLASH R / W;
- Johnson Controls SPC560B60 + 95128 CAN (BSI04EV2-KEX); EEPROM 95128 R / W, show PIN, SPC560B60 FLASH R / W
2. MULTITOOL FORD BCM
FORD LEAR BCM MC9S12XEP768 DATA & PROGRAM FLASH R / W.
3.MULTITOOL OPEL/GM ECU types
- ACDELCO E83 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
- ACDELCO E78 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
- ACDELCO E87 MPC5565 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
- ACDELCO E39 MPC5566 FLASH R/W. CAN (OBD) /BOOTPIN RECOVERY;
- ACDELCO E39A MPC5566 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- ACDELCO E98 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- ACDELCO E37 M58BW016DB FLASH R/W.CAN (OBD);
- ACDELCO E38 AM29BDD160GB FLASH R/W.CAN (OBD);
- ACDELCO E92 MPC5674 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- ACDELCO E80 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- ACDELCO E82 MPC5676 FLASH R/W.CAN (OBD) / BOOTPIN RECOVERY;
- ACDELCO E67 S29CD016 FLASH R/W.CAN (OBD);
- ACDELCO (BOSCH)E84 MPC5676 FLASH R/W.CAN (OBD);EEPROM DUMP VIEWER, EDITOR.
- DELPHI DCM3.7AP MPC5566 FLASH R/W.CAN (OBD);
- DELPHI DCM3.7AP R5F72544 FLASH+DATAFLASH R/W.CAN (OBD);
- DELPHI DCM3.7AP R5F72513 FLASH+DATAFLASH R/W.CAN (OBD);
4.MULTITOOL OPEL BCM types:
- OPEL DELPHI BCM 70F3238+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3238 FLASH R/W;
- OPEL DELPHI BCM 70F3379+93C86 CAN . EEPROM 93C86 R/W, show PIN, reset PIN. 70F3379 FLASH R/W;
- OPEL DELPHI BCM 70F3633 CAN . 70F3633 DATA & PROGRAM FLASH R/W, show PIN, reset PIN;
- OPEL/GM BOSCH BCM 70F3469+24C16.70F3469 FLASH R/W. EEPROM 24C16 R/W show PIN, reset, change odometer, change VIN;
- OPEL/GM BOSCH BCM 70F3385+24C16.70F3385 FLASH R/W. EEPROM 24C16 R/W show PIN ,reset, change odometer, change VIN;
- OPEL/GM BOSCH BCM 70F3558+24C32.70F3558 FLASH R/W. EEPROM 24C32 R/W show PIN, reset,change odometer, change VIN;
- OPEL/GM CONTINENTAL BCM 70F3469+95160(25160). 70F3469 FLASH R/W. EEPROM 95160(25160) R/W show PIN, reset, change odometer, change VIN;
- OPEL/GM CONTINENTAL BCM 70F3558+95320(25320) .70F3558 FLASH R/W. EEPROM 95320(25320) R/W show PIN, reset, change odometer, change VIN.
5.MULTITOOL OPEL/GM TCM Reading/writing types:
- TCM 6T30, 6T35, 6T40, 6T45, 6T50 AM29BDD160GB FULL FLASH R/W. CAN (OBD);
- TCM 6T70,6T75,6T80,6L45,6L50,6L80,6L90 FULL M58BW016DB FLASH R/W. CAN (OBD).
via CAN (OBD or wired on the bench).
6.MULTITOOL OPEL/GM EPS modules via CAN (OBD or wired on the bench).
EPS BOSCH 70F3187+95080 70F3187 FLASH R/W 95080 EEPROM R/W. CAN (OBD).
Really IO PROG Feedback:
1.Did a e98 opel astra k 1.6cdti 2018.
io-prog Worked like a charm.It calculated seed key just fine .Read eeprom and flash memory.Wrote back a dpf egr off file.
You must follow a specific procedure. U can find it on YouTube
The only drawback is that it does not calculate checksum (neither does the original i/o terminal).
2.Also read write an Opel astra k E87 ecu .Everything worked fine.
3.GM E98 question.
I am able to read it with kt200, but it doesn’t seem to read the whole ecu.
so I went and got out my i/o prog and hooked up to it and read the ecu, now the i/o prog is able to read more of the ecu. the I/o prog I’m able to read the emulated eeprom. then I can read the MPC5674 flash and then I am able to read the shadow password. the kt200 I am able to read a 4meg flash file and a 64kb eeprom file and that’s it.
this is the 1st time I am dealing with a E98 ecu. GM even has you do a ecu removal step before removing the ecu from the vehicle. never seen that before.
4.Question on PSA BSI module:
the clone ones i/o prog tool has failed to read bsi valeo. i can do bsi identification and canot do read or write fuctions. I get error card function 367C not supported. Any one came across this issue?
Answer : IO PROG engineer told me that only 60-70% of bsi modules really working.
5.User test videos of I/O programmer
- FORD FOCUS BCM(LEAR SPC560B64+95320 ) CLONING WITH IO PROG
- Ford bcm MC9S12XEP768 Read/Write
- Fiat 500 BSI module cloning (Delphi 70F3379+93C86)
- GM E78 ECU cloing
- GM E83 ECU cloing
- GM E98 ECU Read/Write
- GM TCM6L45 Read/Write
- IO Prog read write Opel BCM Bosch 70F3358+24C32
- read write Opel BCM558
6.I have the I/o prog and I thought it had the GM BCM license activated
when I hook the the bcm on the bench I am able to read the BCM information. all wired correctly as diagram
then I go and select the BCM and when I try to read it I get the error 379a card not found , something to that effect.
To calculate BCM Seed password ,You will need buy the lastest version GM+PSA BSI IO PROG kit
