Description
JDiag P200 Circuit Tester Highlights：
1.Test all 9V-30V electronic systems quickly.
2.Test time will be greatly shortened, more convenient.
3.Support online update
4.Multi Languages disply on screen
5.Support Car ,Truck ,Motorcycle and Boat.
JDiag P200 circuit analyzer Supported Functions
1. Intelligent identification of voltage/resistance
2. Multimeter mode (measure voltage, resistance, diode, continuity, current and frequency)
3. Relay test
4. Injector test
5. Diode test
6. Oscilloscope function
7. 0-5V adjustable power supply
8. Activation of vehicle components
9. Positive and negative polarity test
10. Intelligent circuit breaker protection (adjustable overload)
11. Screen style background optional
12. Network online upgrade
13. Built-in Multi-languages
JDiag P200 Specifications and Parameters:
1) Display: (320*240 DPI) TFT true color display
2) Working temperature: 0-60°C (32-140 F°)
3) Storage temperature: 40-70°C (-40-185 F°)
4) External power supply: 12V or 24V powered by battery
5) Minimum working voltage: 9V
6) Maximum working voltage: 30V
7) Maximum measuring voltage: 150V
8) Minimum measuring voltage: 0.1V
9) Resistance measurement range: 1 ohm~200K ohm
10) Current measuring range: 0~18A
11) Maximum continuous current: 18A

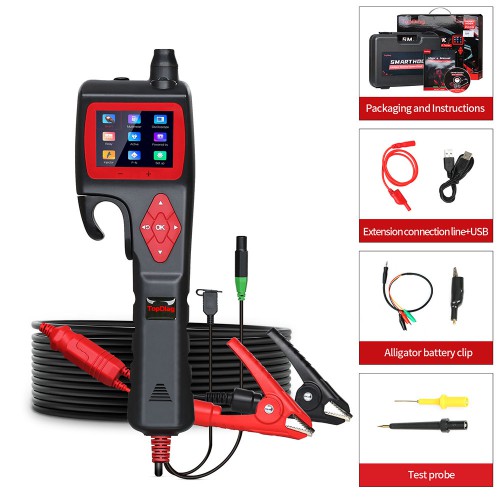

JDiag P200 smart probe packing list:
1) JDiag P200 Circuit Tester Main unit
2) Solid copper test probe
3) Double pass test connection line
4) Alligator clip battery cable (Special Design)
5) Relay test line
6) Probe adapter
7) 25Amp fuse
8) Operation manual
9) Packing Toolbox
