Launch SmartLink Diagzone Diagnostic System for X-Diag ,XPRO5 and ProDiag

Description

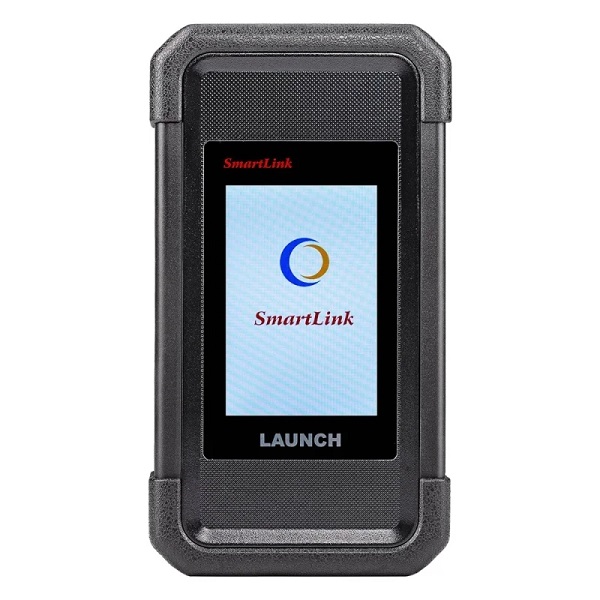

The Launch SmartLink Diagzone Diagnostic Device is a newly developed powerful service system dedicated to work on vehicle diagnosis and service.Launch SmartLink B V2.0 is an Automotive Diagnostic Tool Support Coding and Programming. SmartLink is a brand-new high-end car fault diagnostic device developed by Launch.
In this system, SmartLink B (Business) applies to vehicles that comply with J2534, DoIP, CAN FD, CAN 2.0, RP1210, D-PDU diagnostic protocol.
This is 100% Original Launch X-431 smartlink B box,but does NOT support remote diagnostic !!!
Because it is Chinese version and its ip address is limited.You can only use it for Diagzone,X-Diag ,XPRO5 and ProDiag cracked APP.

Launch SmartLink DiagZone Notices:

1. It is 4 in 1 version of X-PRO5 /Diagzone / X-diag3 / Prodiag,and it works perfectly with the 4 kinds software AT THE SAME TIME! you do not need to flash firmware or do anything about it .The software does not work good with Android 13/14 or Samsung brand android .Best is Android 8/9/10/11/12.

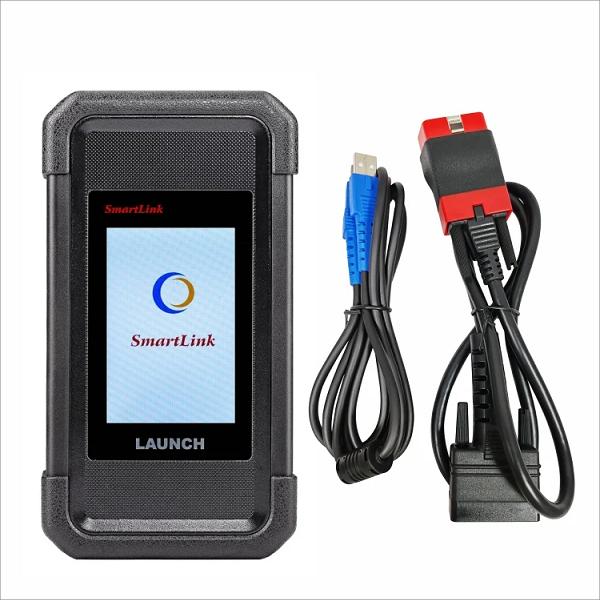

2. This is 100% Original Launch smart link B with main obd2 cable+USB cable(without other accessories).
   All of them work with 12v passenger cars + Electronic Vehicles + 24v trucks such as : heavy duty + light trucks + pickup trucks + bus +tractors + shipping boat + contrsuction machinery
   It supports CAN + CAN FD + Doip Protocols ,and also can be used as J2534 tool.
3. All devices are tested by Launch IO tester tool with demo software before shipping,and it 100% works perfectly .
4. The kit without Software ,inquiry me for get Software prices.

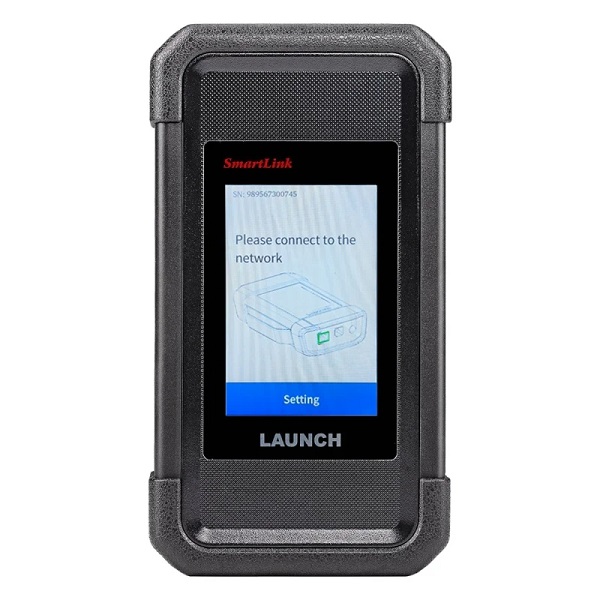

5. Attention !!!!!!Once it connect to 12v/24v vehicles, its power on ,and screen always keep display like this , but please Never connect to WI-FI internet, It’s remote diagnostic function does not activated because this is Chinese version smart-link, and IP address is limited( If you care about it , please do NOT order it ).

X-431 SmartLink B V2.0 Technical Parameters

• 3.97“ Single-Touch Screen, 320 x 480
• Working Voltage: DC 9V ~ 36V
• Communication method: Ethernet
• Type B USB 2.0
• Storage: 8GB
• Memory: 256M
• Power Consumption: < 6W
• Working temperature: -10°C ~ 50°C
• Storage temperature: -20°C ~ 60°C
• Storage humidity: 10% ~ 90%
• Dimension: 204 x 110 x 45 mm
