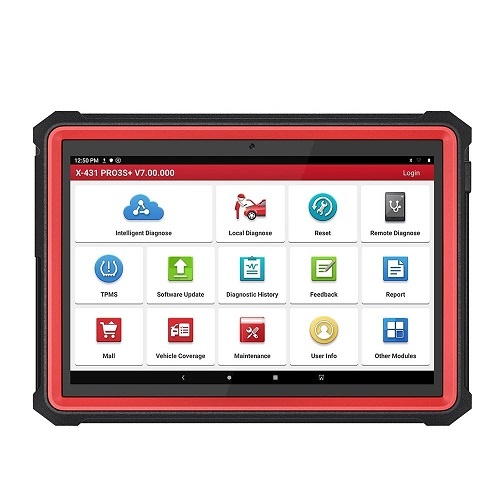

LAUNCH X431 Pro3s Diagnostis Tool,X-431 Pro3S+ V5.0

Description

LAUNCH X431 PRO3S+ is a professional OBD2 Scanner that can diagnoses full systems. X-431 PRO3S+ v5.0 will read / erase codes, view live data, retrieve ECU version information, do active test and service functions including ECM, TCM, ABS, SRS, BCM, IMMO, BMS, TPMS, SAS, Fuel System, Light System and A/C system etc. with the coverage of global vehicles .

LAUNCH X431 PRO3S+ Scanner Highlights:

1. 2 years free update through Tablet one-click update.
2. Not only 12V cars, but also work on 24V truck after you connect the SMARTLINK C TRUCK MODULE.
3. LAUNCH X431 PRO3S+ scanner supports Bi-direction ,ADAS (need to purchase LAUNCH ADAS calibration equipment ), endoscope,
   anti-theft key matching, tire pressure detection and other extensions.
4. supports Multi-Languages that included Italian, English, German, Japanese, Russian, French, Spanish, Portuguese, Polish, Turkish,
   Dutch, Greek, Hungarian, Arabic, Danish, Korean, Persian , Romanian, Serbian, Finnish, Swedish, Czech
5. 10 inch Android V10.0Tablet ,4GB+64GB

X431 PRO3S+ 2025 Pro VERSION Features:

• ECU Coding & Online Coding
• OE-Level All systems Diagnoses
• Support OBD I & OBD II Vehicels
• Remote Diagnoses
• 31+ Advanced Functions
• Bi-Direction Control (Active Test)
• Cover 10,000+ models
• 160+ Vehicle Brands covered
• VAG Guided Functions
• Anti-Theft IMMO Service
• Refresh Hidden Features

LAUNCH X431 PRO3S with 37+ Special Reset Service Functions
NOTE：You can find 15 kinds of commonly used reset functions in the reset menu, and other special functions in the car brand diagnostic softwares menu.

1. Oil Lamp, Oil Reset Service
This function allows you to perform reset for the engine oil life system, which calculates an optimal oil life change interval depending on the vehicle driving conditions and climate.

2. Electronic Parking Brake Reset
It is important in the maintenance of electronic braking system’s safety and efficiency.

3. Steering Angle Calibration
This function helps clear the fault steering angle sensor memories and plays an important role in the steering angle sensor calibration.

4. ABS Bleeding
This function allows you to perform various bi-directional tests to check the operating conditions of Anti-lock Braking System (ABS).

5. Tire Pressure Monitor System Reset
This function allows you to quickly look up the tire sensor IDs from the vehicle’s ECU, as well as to perform TPMS replacement and sensor test.

6. Gear Learning
The scan tool monitors certain camshaft position sensors signals to determine if all conditions are met to continue with the procedure for Engine running

7. IMMO Service
It is mainly used to disable the lost vehicle keys and program a new replacement key fob.

8. Injector Coding
Leaking injectors and some dead injectors can be missed even when an injector is disabled. Otherproblems with the ignition system and mechanical components also may not show an rpm loss when aninjector is turned off

9. Battery Maintenance System Reset
allows the scan tool to evaluate the battery charge state, monitor the close-circuit current, register the battery replacement, and activate the rest state of the vehicle.

10. Diesel Particulate Filter (DPF) Regeneration
specially works for Diesel Particulate Filter system with DPF regeneration, DPF component replacement teach-in and DPF teach-in after replacing the engine control unit.

11. Electronic Throttle Position Reset
This function enables you to make initial settings to throttle actuators and returns the “learned” values stored on ECU to the default state. Doing so can accurately control the actions of regulating throttle (or idle engine) to adjust the amount of air intake.

12. Gearbox Matching
(1). This function can complete the gearbox self-learning to improve gear shifting quality.
(2). When the gearbox is disassembled or repaired (after some of the car battery is powered off), it will lead to shift delay or impact problem. In this case, this function needs to be done so that the gearbox can automatically compensate according to the driving conditions so as to achieve more comfortable and better shift quality.

13. AFS (Adaptive Front-lighting System) Reset
This feature is used to initialize the adaptive headlamp system. According to the ambient light intensity, the adaptive headlamp system may decide whether to automatically turn on the headlamps, and timely adjust the headlamp lighting angle while monitoring the vehicle speed and body posture.

14. Sunroof Initialization
This function can set the sunroof lock off, closed when it rains, sliding / tilting sunroof memory function, temperature threshold outside the car etc.

15. Suspension Calibration
(1) This function can adjust the height of the body.
(2) When replacing the body height sensor in the air suspension system, or control module or when the vehicle level is incorrect, you need to perform this function to adjust the body height sensor for level calibration.

16. EGR Adaption
Reduce nitrogen oxides (NOx) in the exhaust gas and improve fuel economy at partial load.

17. Adblue Reset
18. AF Adjustment

And More….

Advance OE-level functions of LAUNCH X431 PRO3S Scanner

1.  Guided Functions: Compatible with  Volkswagen / For Audi / For Skoda / For Seat etc.
2. Component Matching: For Volkswagen/ For BMW / For GM / For Ford / For Opel / For Mazda / For Fiat / For Honda / For Nissan / For Hyundai / For Kia / For Subaru etc.
3. Online Coding: Compatible with  Volkswagen / For Benz / For BMW / For Seat / For Porsche etc.
4. Online Account Login Service: Volkswagen
5. Online Calibration: Volkswagen
6. Online Parameterization: For Audi / For Skoda / For Seat etc.
7. Anti-theft IMMO Serivce:  Volkswagen
8. Power Balance: Compatible with Chrysler / For GM / For Ford etc.
9. Programmable Module Installation: Compatible with Ford / For Mazda etc.
10. Flash Hidden Functions: BMW / For Porsche / For Toyota / For Subaru etc.
11. Actuator Test : Injector Test ;Turn Off ACC Lane Keeping Assist

System (LKAS) ;Turn ON/OFF Front and Rear side ACM Solenoid , turning the fuel pump on and off, cycling the a/c ,clutch on and off, Left clutch electromagnetic coil test，Acceleration Device Test，Oil Pressure Control Test，DYNAMIC camera aiming，Vehicle level position calibration, Brake Vacuum Pump, Inlet and Outlet Valve tests, Open Brakes tests, Parking Brake Botors, Wheel Speed Sensor Supply, PARKING BRAKE tests （Vary by car, Hundreds of actuation test functions ） …

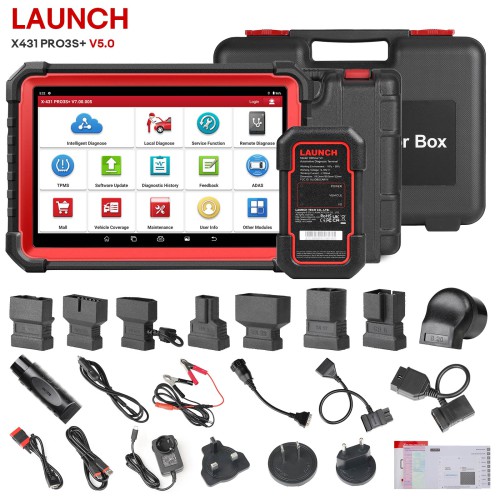

Package Includes:
