X431 V+ Original Launch X431 Heavy Duty Diagnostic Tool

Description

Launch X431 V+ with SmartLink C 2.0 Truck Diagnostic Module

X-431 V+SmartLink HD is LAUNCH’s new generation of professional commercial vehicle diagnostic equipment. It adopts a new UI design and more advanced hardware solutions to improve users’ efficiency in judging commercial vehicle faults and obtain a better user experience.

X-431 V+ SmarLink HD covers engine diagnostic software for Cummins, Bosch, Weichai, Shangchai, Yuchai, Xichai, Chaochai, Yangchai, Quanchai and other engines. It supports software for trucks, buses, construction machinery, agricultural machinery, trailers, ships and other types of vehicles.

Launch X431 V+ Heavy Duty Module Update:

One-Click Free Update Online for 2 Years, when free update expired, update cost will be $499 for one year and $899 for two years.

LAUNCH X431 V+ Heavy Duty Software diagnostic platform:

●Read fault code
●Clear fault code
●Read data stream
●Actuation Test
●Special functions
● Read freeze frame
●ECU program

LAUNCH X431 V HD Support Truck models:

China: DONGFENG SERIES \ FAW JIEFANG \ SINOTRUK \ FOTON AUMAN \ JAC SERIES \ YUTONG \ KINGLONG……
USA: FREIGHTLINER, INTERNATIONAL, KENWORTH, PETERBILT, STERLING…
Europe: M E RCE DES- BE NZ\ MAN \ VOLV0 \ SCANIA \ IVEC0 \ DAF \ RENAU LT
Asian: HIN0, FUS0, ISUZU, UD, HYUNDAI, ASHOKLEYLAND…

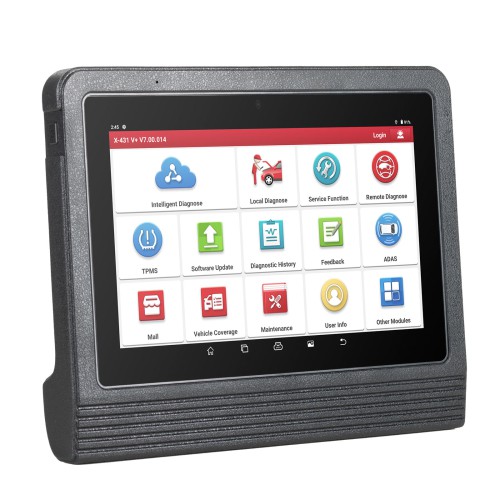

Launch X-431 V+ Heavy Duty Technical Parameters:

Operating system: Android 5.1
CPU: Quad-core 1.3GHz processor
Battery: 7000mAh rechargeable polymer lithium battery
Memory: 1GB
Storage capacity: 16GB
LCD: 10.1 inch
LCD resolution: 1280 x 800
Touch screen: Capacitive touch screen
Cameras: 5.0 mega pixels rear and 2.0 mega pixels front
Wi-Fi: Support 802.11a/b/g/h
Bluetooth: Supported
Working temperature: 0℃ ~ 45℃
Storage temperature: -20℃ ~ 70℃

LAUNCH X-431 V+ Heavy Duty Truck Diagnostic Software Listing:

1pc x Demo V14.73
1pc x JMC V12.35
1pc x ASTRA V10.42
1pc x BREMACH V10.06
1pc x DAF V11.21
1pc x ERF V10.05
1pc x for FUSO V16.02
1pc x for MACK V10.32
1pc x for MAN V14.71
1pc x for SCANIA V13.51
1pc x WP Diesel Car V10.40
1pc x X431 Diesel Car V1010
1pc x CREDO Heavy Duty V10.20
1pc x IRISBUS Heavy Duty V10.02
1pc x IRIZAR Heavy Duty V10.02
1pc x NEOPLAN Heavy Duty V10.04
1pc x SETRA Heavy Duty V11.00
1pc x SITCAR Heavy Duty V10.05
1pc x UD Truck 2F JP diesel V10.40
1pc x BONLUCK BUS V10.05
1pc x DongFeng YUFeng V10.03
1pc x  Renault Truck V11.30
1pc x  SUNLONG BUS V10.10
1pc x SUNWIN BUS V10.01
1pc x ZHONGTONG BUS V10.01
1pc x for Mercedes Benz Heavy Duty V16.30
1pc x for FOTON AUMAN V13.40
1pc x for Volvo Heavy Duty V14.83
1pc x for Cummins Engine V14.41
1pc x for Hino Motors V16.50
1pc x for Isuzu Heavy Duty V14.10
1pc x for Hyundai Heav Duty V11.06
1pc x for IVECO Heavy Duty V18.87
1pc x China Heavy Duty V11.21
1pc x Heavy Duty Standard Diagnostic V11.11

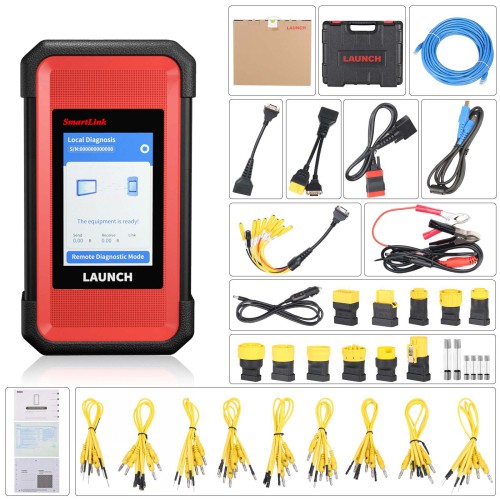

X-431 V+ heavy duty Package List:

1pc x X-431 V+ 8inch Tablet
1pc x PAD4HD- Type II OBD-9 X431 diagnostic connector
1pc x X-431 HD_III_VCI diagnostic kit Business Edition (RM08)
1pc x X431 PAD IV HD-BENZ-14 / Mercedes 14PIN diagnostic connector
1pc x X431 PAD IV HD-CAT-9 / Carter 9PIN diagnostic connector
1pc x X431 PAD IV HD-HYUNDAI-16 / Modern truck 16PIN diagnostic connector
1pc x X431 PAD IV HD-IVECO-30 / In Victoria Ho 30PIN diagnostic connector
1pc x X431 PAD IV HD-IVECO-38 / In Victoria Ho 38PIN diagnostic connector
1pc x X431 PAD IV HD-MAN-12 / Man 12PIN diagnostic connector
1pc x X431 PAD IV HD-MAN-37 / Man 37PIN diagnostic connector
1pc x X431 PAD IV HD-MITSUBISHI-12 + 16 / Fuso 12 + 16PIN diagnostic connector
1pc x X431 PAD IV HD-OBD-16 diagnostic connector
1pc x X431 PAD IV HD-OBD-6 diagnostic connector
1pc x X431 PAD IV HD-RENAULT-12 / Renault 12PIN diagnostic connector
1pc x X431 PAD IV HD-VOLVO-8 / Volvo 8PIN diagnostic connector
1pc x Heavy truck diagnostic X431 PAD4HD mainline
1pc x LIGHTER
1pc x CLIPPER
1pc x Adapter, 5V/2A, American Standard (Lenovo plate supporting)
1pc x X431 PIN envelope
1pc x X-431 V+ HD3 English quick start
1pc x X431, PRO3S+, B, USB, Micro, USB
1pc x Clipper fuse 5*20mm
1pc x  Lighter fuse 6*30mm
1pc x X-431 Power supply
