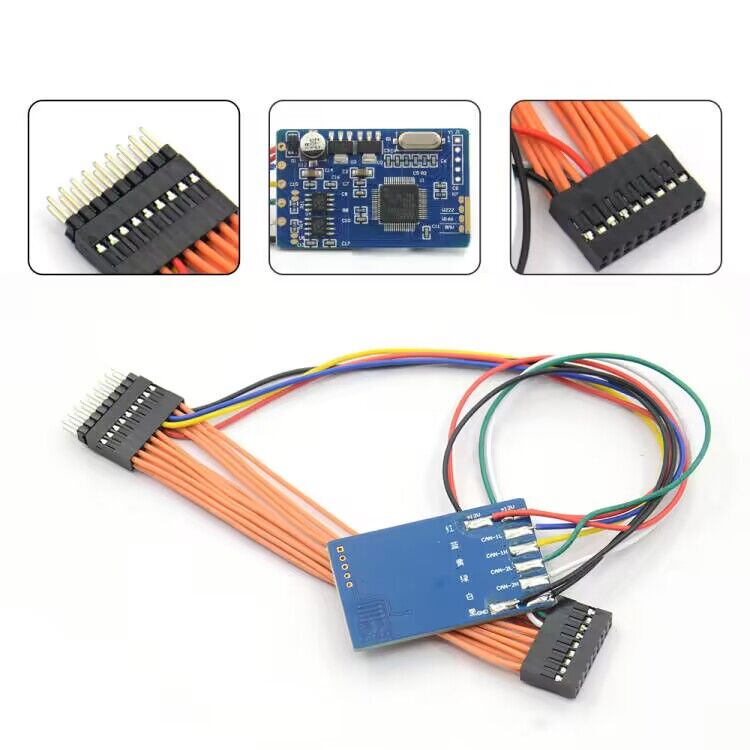

MB CAN Filter 18 in 1,YANHUA Benz/BMW CAN Filter

Description

MB CAN Filter 18 in 1 is designed to support old mileage data blocking on Mercedes-Benz and BMW vehicles. It is designed to prevent regeneration of the old mileage state in vehicle dashboard (odometer). This filter is universal for multiple car models, small and convenient, easy operate, with stable performance and reliability.
MB CAN Filter doesn’t interrupt any vehicle electronic system, there will be no errors or DTC’s after install.

MB CAN Filter 18 in 1 Support Model:

• 18 types BENZ chasis model:
  S(222), S(221), C(205), C(204), V(W447), E(W212), E(W207), A(W176), G(W463), ML(W166), SL(R231), GL(X166), B(W246), CLS(W218), SLK(R172), SLS(W197), CLA(W117), GLK(X204)
• BMW Model:BMW 1 series F2X, 3 series F3X, BMW X5 etc., FEM mileage adjustment
  BMW 5 series F10, 7 series F01/02 etc., CAS4 Fxx chassis.( F01, F02, F07, F18, F10, F20, F25, X3 etc., applicable for 9S12 XEP series 5M48H/1N35H).

How it works on for BMW?

When you have to change the mileage for BMW for some reasons, after you have finished changing the mileage Numbers in the odometer, you can placed a CAN filter in the instrument cluster, or in the CAS, FEM, BDC, No need to modify any data in any other control units, when the car started, the CAN filter will block the mileage information in the ECU from exchanging with the instrument cluster, the mileage displayed in the odometer will be the new numbers your altered.

How it works on for Mercedes for Benz?

When you have to change the mileage for Mercedes-for Benz for some reasons, after you have finished changing the mileage Numbers in the odometer, connect a CAN filter between the dashboard and the plug of instrument cluster, No need to modify any data in any other control units, when the car started, the CAN filter will block the mileage information in the ECU from exchanging with the instrument cluster, the mileage displayed in the odometer will be the new numbers your altered.

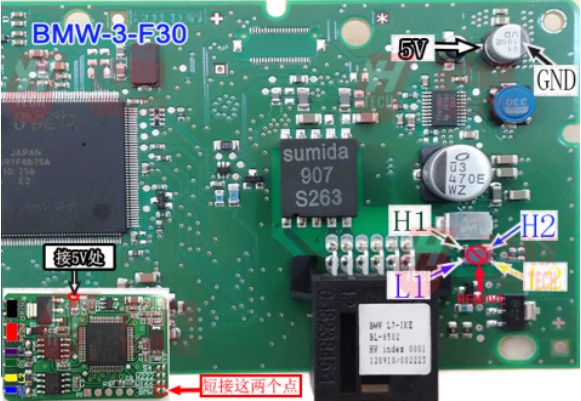

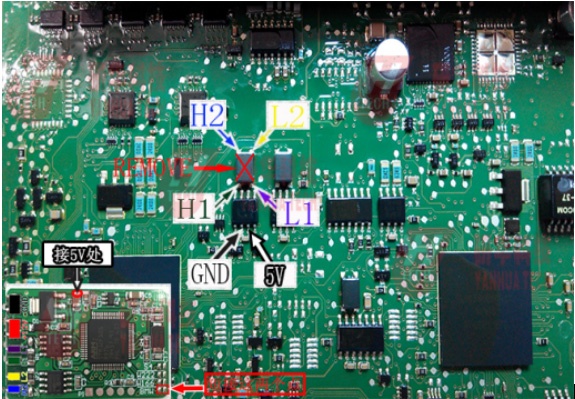

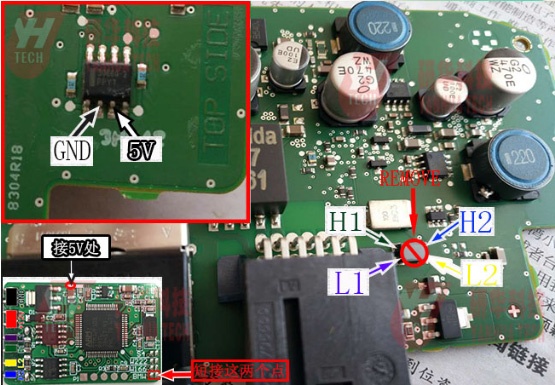

YANHUA MB CAN filter 18 IN 1 — Diagram for BMW

MB CAN Filter NOTICE!!

• You need add the CAN Filter modules before Odometer adjustment when work on New style vehicles,And added it to car after odometer adjustment when work on Old style.So CHECK the car model correctly before adjust.
  New style: 222/205/217
  Old style: 166/212/463
• Please connect the dot together(short circuit) BEFORE connect to car!
  Black ——— GND
  Red ——— +12V
  White ——— +5V
  Purple ——– L1(CAN_L1)
  Green ——— H1(CAN_H1)
  Yellow ——— L2(CAN_L2)
  Blue ——— H2(CAN_H2)
