Description

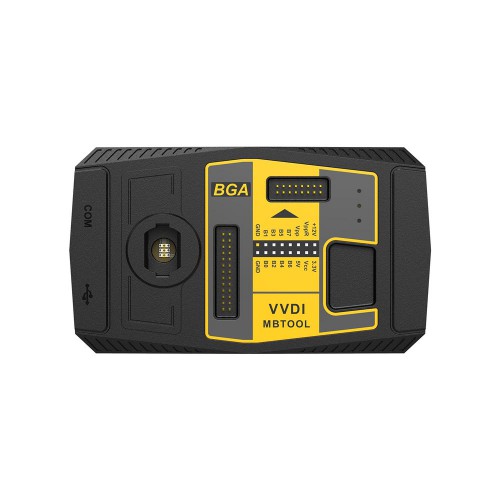

Xhorse VVDI MB BGA Tool is one professional Mercedes Benz Key Programmer .VVDI MB TOOL Support the popular models like W166, W197, W212, W218, W246, W206, W210,w204, w207,W166,W203, W463, W639, W246, W212, W212(old),some W216, W164 2009- ,W164,W221,W215, W220, W230 and some others.
it is used for key reading and writing,EIS tools,password calculation,key file preparing,ESL tools,ECU/Gearbox renew and many special functions.
It supports all key lost for W204, W207,W166, W246, W212, W212(old), some W216, W164 2009-, W210 (newly add) etc … you will free update online lifetime for add functions and newest vehicles .
Xhorse VVDI MB TOOL Notice:
1. When you do Password Calculator,You will need Token .It process fast and takes only 4 minutes to collect data, and 2 minutes to calculate.
2. If you have Xhorse Condor key cutting machine ,then will get one free token each day.
3.We have Unlimited Token Service for One Year Period,Only 350$ .Very cost-efficient！
VVDI MB TOOL Latest V5.1.0 Update news:(2021-04-06 )
1. Bugfix for write Kline EIS
2. Bugfix for write ECU (272) VIN, only for test purpose
3. Add Setting option (Menu->File->Setting), support deactivate voltage limit function, Read password via IR
VVDI MB BGA TOOL Highlights:
1. Support BE key, read password and prepare new key via IR.
2. NEC V051,V057 support on board get password
3. All NEC keys support on board write and erase
4. Password calculate:support BGA keys,NEC keys(include 51,57version)etc.,work fast.
5. Support renew EIS and ELV
6. Support write EIS and ELV
7. Support online generate key file
8. Unlock ELV Function
9. Language: English, Spanish and Polish.
VVDI MB BGA Tool Function in Details:
1. Read Write Key
1. Read key basic information
2. Key with BE version, we can read password from key via IR directly. Of course,renew key, write new key file via IR is also supported
3. Support IR repair key, repair key not work via IR
4. NEC adaptor can read key password from NEC v51, v57 version
5. Support write and renew (NEC adaptor) NEC key versions following: v51, v57,v28, v35, v40,v03, v06, v08 (Keyless Go),v05, v07, v09 (Keyless Go),v59, v61 (Keyless Go)
2. EIS Tools
1. Support read EIS data via OBD and IR adaptor
2. Under OBD mode, we provide auto detect EIS type for CAN protocol
3. Support read W164, W209, W211 EIS via OBD without gateway support
4. Support read old Motorola EIS (HC05, HC08, K-Line) password via IR directly
5. Support renew EIS, make 2 nd hand EIS to new one (online)
6. Support replace EIS, you can write original EIS data to new EIS via IR
7. Support write new VIN
8. Support clear TP
9. Support disable key position
10. Support personalize W204 ESL
11. Support test EIS, ELV, working key status
12. Support type:
W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212 (old, with ELV) W203, 463, 639 (K),W202, 208, 210 (K),W215, 220 (K),W230 (K),W216,W221,W639 2009-
3. Password Calculation: support working key and lost all key
1. Password calculation can get the key password from working key and EIS(online)
2. CAN protocol EIS all support password calculation (support BGA keys and other NEC keys)
3. We also support calculate password for NEC v51, v57 keys. No soldering.
4. Data acquisition time depends on the key version. It needs about 3.5 minutes -13minutes, BGA version need about 5 minutes
5. Calculate time in server: 30 seconds – 1 minute
6. Now VVDI-MB TOOL is the fastest tool for password calculation
7. Lost all key password calculation: Now we support calculate password for W166, W212, W246, W212(old, with ELV) while lost all key
8. Support type (have working key): W164,W164 2009-,W166, 197, 212, 218, 246,W169, 209, 211,W172, 204, 207, 212(old, with ELV),W216,W221,W639 2009-
4. Prepare Key File
1. Prepare key file means prepare the key file which you will write to new key(online)
2. Prepare key file need about 20 seconds
3. Support VVDI-MB type EIS data and old Motorola EEPROM dump
5. ESL Tools
1. Support read ESL data via OBD (K-Line)
2. Support renew ESL, make 2 nd hand ESL to new one (online)
3. Support replace ESL, you can write original ESL or EIS data to new ESL
4. Support write new VIN
5. Support clear TP
6. Support auto personalized ESL, no need renew EIS
7. Support check ESL damage status
8. Support repair W204 ESL NEC chip(fatal error: 0xAA) and Motorola ESL chip
9. Support renew VVDI-MB W204 emulator
6. Renew ECU/Gearbox
Support renew, write VIN, personalization operation for module ECU,Gearbox, ISM etc
VVDI MB TOOL Model Support IR/OBD:
W164, W164 2009+
A166, W197,W212, W218, A246
A169, W209, W211
W172, W204, A207
W203
W204, W207, W212 only by dump
W209 only by dump
W210
W215, W220
W230
W216
W221
W906
VVDI MB TOOL Keys Version Supported:
v03, v06, v08
v05, v07, v09
v59,v61
What’s included on VVDI MB BGA Tool Kit?
1. VVDI MB BGA TOOL MUX
2. OBD Line
3. K Line in OBD Line
4. IR Adaptor
5. NEC Adaptor1
6. NEC Adaptor2
7. NEC PCB
8. USB Cable
Option accessories:
VVDI BE KEY PRO =20usd
POWER ADAPTER for DATA Acquisition (W164,W204,W210)=125usd
Mercedes Locks OBD Test Line=70usd
VVDI BGA Tool Customer Feedback:
i have an mercedes W245 B-Class from 2007 it work for All key lost
W221 – all keys lost – Ok
W164 – no connection by OBD, IR is ok. Can not do data collect, EZS IR reading only
W212 – all keys lost by OBD – Ok
W220 – no K-Line connection for data collect. IR reading – Ok.
I try to collect list of OK and K.O. experiences with IR pass reading with VVDI BGA TOOL
W210: EIS/EZS A208.545.01.08 – MCU -read PSW IR – not successful
W210: EIS/EZS A210.545.02.08 – MCU 1D69J – read PSW IR – not successful
W210: EIS/EZS A210.545.03.08 – MCU 1D69J – read PSW IR – not successful W210: EIS/EZS A210.545.00.08 – MCU 0D69J – read PSW IR – not successful W215: EIS/EZS A215.545.00.08 – MCU 0D69J – read PSW IR – not successful W215: EIS/EZS A215.545.08.08 – MCU 1L85D – read PSW IR – not successful
W203: EIS/EZS A203.545.05.08 – MCU ??? – read PSW IR – OK
W203: EIS/EZS A203.545.05.08 – MCU 1J35D – read PSW – OK
W203: EIS/EZS A209.545.09.08 – MCU 1L85D – read PSW IR – not successful
W220: EIS/EZS A215.545.02.08 – MCU – read PSW IR – OK
W220:EIS/EZS A215.545.00.08 – MCU 1D69J read PSW IR – not successful
I test password from 212 new model super ,good tool need pay 2 tokens .it need 10 minutes
