Description

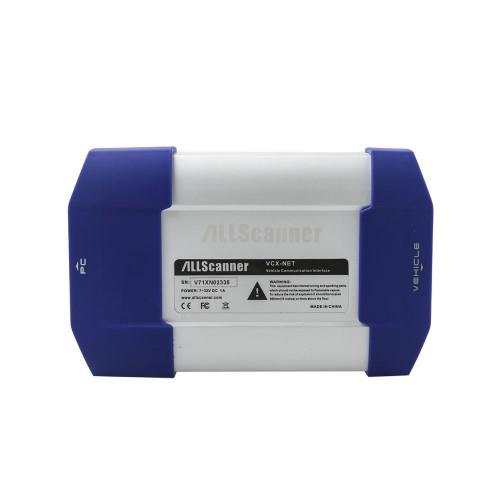

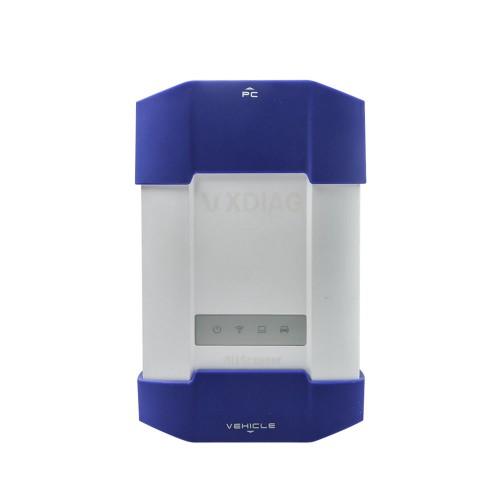

VXDIAG SUBARU Diagnostic Tool is the thrid-part SUARU OBD2 Scanner .it full compatible come with lastest SSM3 and SSM4 dealer level Software. VXDIAG SUBARU scanner supports both 12V and 24V Gasoline and Diesel Subaru Cars till 2020 Year.Subaru Select Moitor III (SSM III /SSM4)Not only Scan but also Reprogramming ,Key Programming and oscilloscope functions…etc
Why should you buy the VXDIAG SUBARU SSM3 Interface ?
1. Fully compatible with SAE-J2534 and all others protocols.
2. SSM3 V2022.1 that support SUBARU vehicle from 1998 to 2021 year which replace Hitachi HDS3000 or the newer Denso DST-i ;SSM4 software version V22.60 that support vehicle 2016 Year onwards.
FlashWrite2 V1.3.4 is the reflash software that reflash everything from ECU,TCU,BIU,Eyesight etc till 2018 Year.(You should get the flash database self)
3. VXDIAG SUBARU Diagnostic Tool Can program Subaru smart key but required online dealer account.
4. VXDIAG SUBARU SSM3 Support Wifi and USB Connection
5. Operating system: Windows 7 ,Windows 10
6. SSM3 Programmer Language: English, German, Spanish, French, Italian
SSM4 Language: English, Japanese, French, German, Spanish, Italian, Russian,Polish
7.Can Pay to Add Toyota, Honda, Porsche, JLR Software work on this VXDIAG SUBARU Interface
8.Fully Compatible with SAE-J2534
SUBARU SSM3 SSM4 Software Function:
1. All System Diagnosis. Selecting this item displays on a single screen the fault detect status of all control system control modules for which SSM ΙΙΙ diagnosis is supported, and memorized diagnostic codes.
2. Each System Check. Selecting this item makes it possible to select a particular system from among the control systems forwhich SSMΙΙΙ diagnosis is supported, and perform fault diagnosis. This item can be used to view input/output data of the system control modules that perform fault diagnosis, memorized diagnostic codes, and other data on the PC display. This menu item is also used after repair work is complete to delete diagnostic codes, to configure control module settings, etc.
3. Saved Data Display. This item can be used to save various data sampled during fault diagnosis operations, and to load data for viewing after work is complete.
4. Immobilizer. This item performs immobilizer registration.
5. Reprogram. This item performs reprogramming of the control module.
6. Read CF application measurement data. This item performs reading stand alone measurement data saved in a CF card to hard disk of your PC.
7. Convert/Save measurement data on driving recorder. Loads data sampled on the driving recorder to the PC from the CF card, and converts and saves that data.
8. Oscilloscope. After attaching the optional pulse/analog cartridge to SDI, connect the pulse/analog box to the SDI and using pulse/analog probe to perform analog sampling. But we do not provide pulse/analog cartridge.
9. Program Subaru smart key (Require online account)

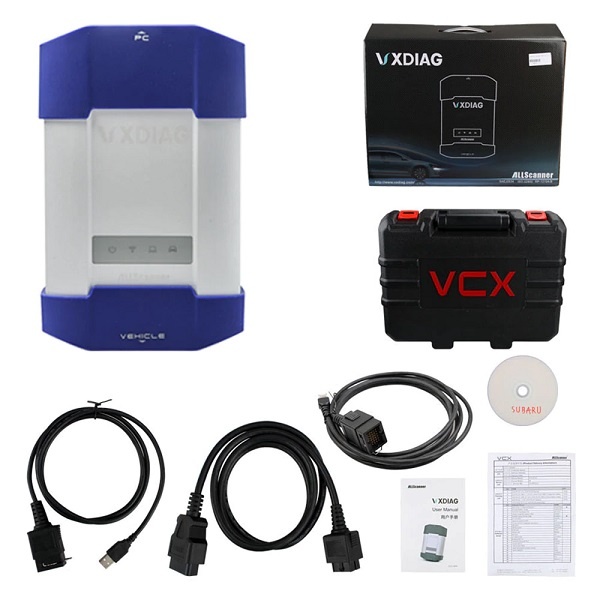

VXDIAG SUBARU Diagnostic Kit included:
1pc x VXDiag VCX PLUS for Subaru
1pc x OBDII Cable
1pc x USB Cable
1pc x CD
