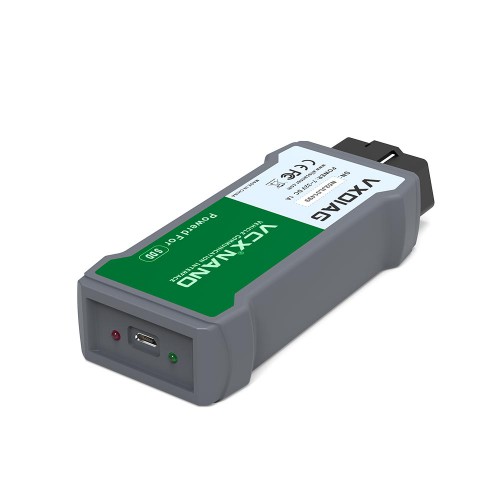

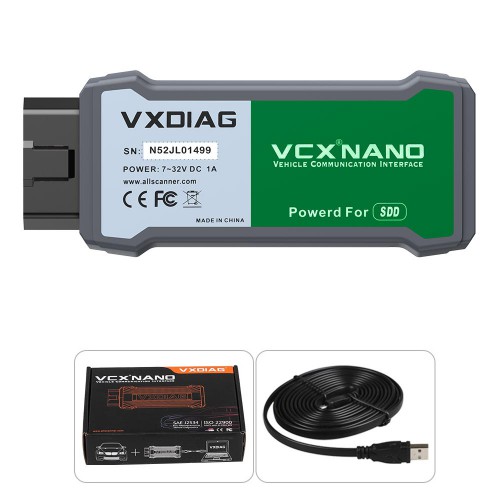

VXDIAG VCX NANO JLR Diagnostic Interface Land Rover Jaguar Scanner

Description

VXDIAG VCX NANO JLR is one OEM Land Rover and Jaguar Diagnostic Interface .Once connected with Last V164 SDD programmer,it will working Diesel and gasoline cars from 2007 to 2016 Year.After that you will need newer JLR DOIP VCI, Pathfinder programmer will be the next generation . another important thing is the license always free Lifetime ,firmware also on-time update.

Which protocols does VXDIAG NANO JLR VCI support ?

• ISO9141 (K-Line)
• ISO14230-2 (K-Line)
• ISO15765 (CAN)
• Single Wire CAN (GMLAN)
• 4 CAN, 3 High Speed CAN and Single Wire CAN.
• Programming voltage: 5V ~ 20V FEPs output.
• Support multi – channels work continuously, for example: 2 wire CAN or K – Line work at same time.
• Large memory to increase date throughput, 32KByte can be reached by single transfer

VXDIAG VCX NANO JLR Highlights:

1. Dual-core processor, compliant with all vehicles protocols.
2. Compatible with 12V and 24V communication
3. Hardware meets European CE and American FCC standards
4. Firmware can be updated for continuous improvement

V164 JLR SDD Features:

• 1. Data Lists
• 2. Active Tests
• 3. Monitor
• 4. Utility tests
• 5. Diagnostics Trouble Codes
• 6. Reprogramming ( Immobilizer required dealer account online , Others don’t need to be done online, but you need connect voltage stabilizer to make sure your voltage is stable )

Free Download VXDIAG JLR software

JLR SDD V164 Software
V164 SDD Patch

NOTE:
1). From version V137, SDD cannot do offline programming. You must use other ways to do programming, as CCF and Seed code.
2). VXDIAG VCX NANO SDD supports JLR SDD software only, not support Pathfinder software.
