What the job CG100X programmer will do?

CGDI CG100X Programmer is the powerfull automobile tool for airbag resetting, mileage adjustment and ECU/BCM chip reading, covering 90% of models and modules on the market.CG100X support key programming for BMW and Land Rover .it also repair teering angle, FRM module, keyless entry module, audio amplifier, transmission computer, 48V light lithium battery, 12V lithium battery and other kinds of body computer.Free update for one year!

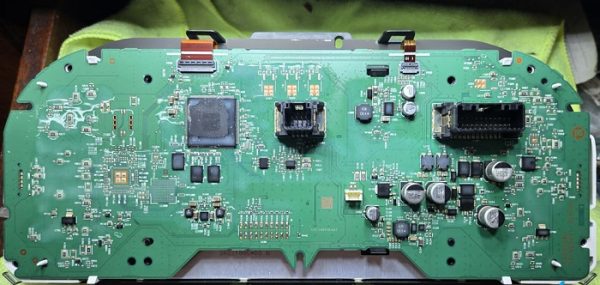

Read and Write Mitsubishi (Montero) S6J329 instrument

Pin out :

• TX=PIN 3
• RX=PIN 4
• PDX=PIN 6
• RST=7
• GND=12

Airbag crash reset for RH850 Encrypted R7F701A033 with Boot mode

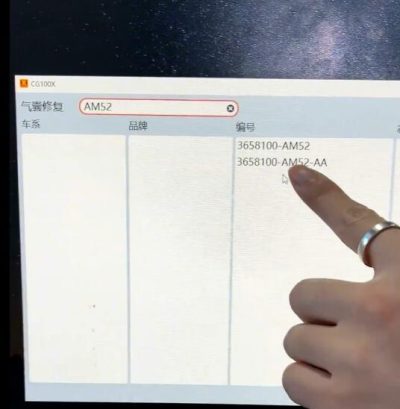

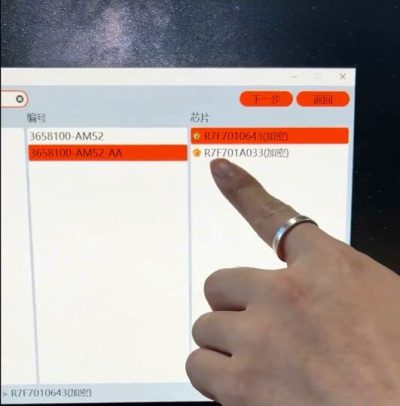

Search Part Number 3658100-AM52-AA-R7F701A033 encrypted on CG100X software.
The job need the D1 or D2 adapter working together. With D1 adapter need to weld a resistor ,but no need when use D2 adapter.

Steps:

1. Connect 12V power supply to CG100X programmer
2. Hit Read button to read data.
3. Read chip ID.
4. Read Dflash and Pflash data successfully. Save data.
5. will ask to repair airbag.
6. Click Yes to reset airbag crash.
7. Operation completed.
8. Clear fault code.

Mileage correction on Toyota Granvia S6J3001 cluster 2022 Year:

No need soldering ,using the 35XX CAN adapter.

Procedure:

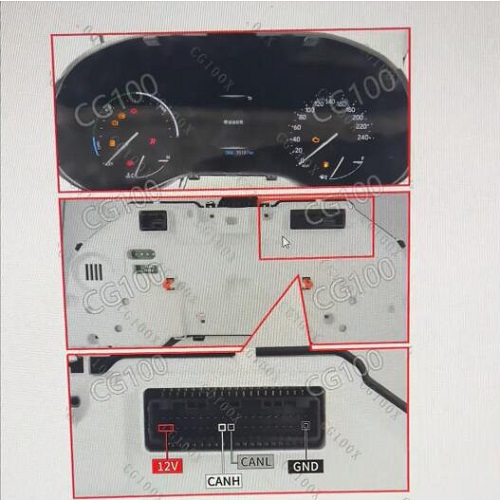

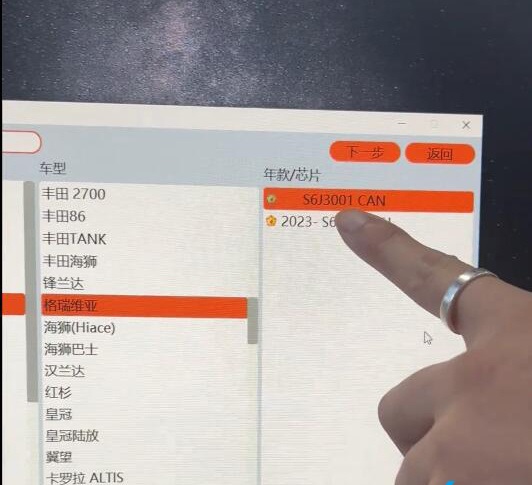

1. Go to mileage function. Select Aisa- Toyota- Granvia- S6J3001 CAN.There are two types of clusters. Check which one matches with your cluster.Here Mine Grevia cluster is the same as the type 1.Check the type 1 CAN wiring diagram.

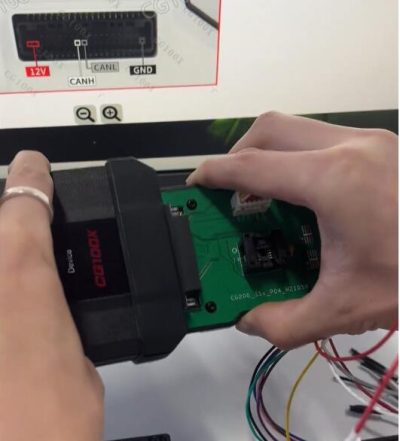

2. Connect the cluster via 35XX CAN adapter.Connection as the type 1 CAN wiring diagram.Only 4 wires to connect, *12V, CAN H, CAN L and GND*.
3. Read chip and save eeprom.
4. CG100X will detect original mileage data.

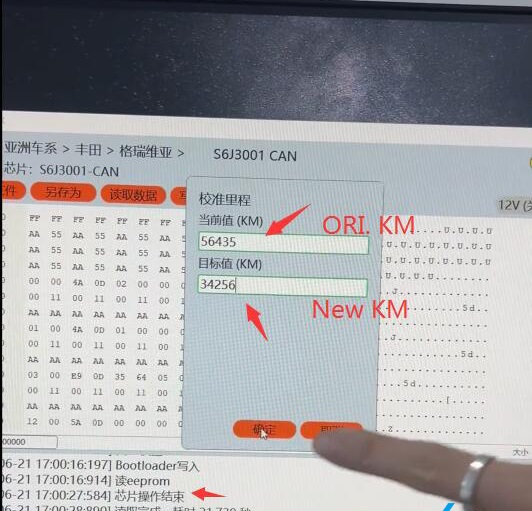

5. Input new km you desire.
6. Start to write new mileage. CG100X has a built-in algorithm that can
7. write mileage online. Don’t disconnect device and adapter during the progress.

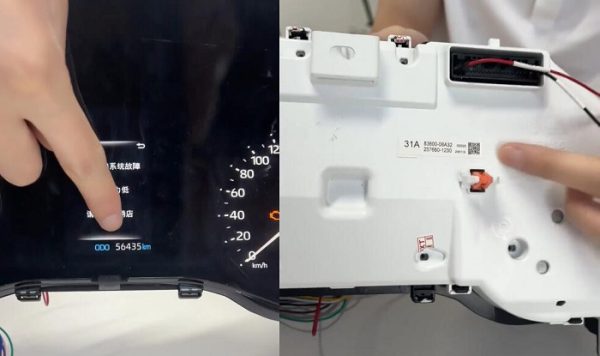

8. Mileage correction is completed.Check the mileage in the cluster. It’s the same value as in software.
