Description
CAT Communications Adapter III CAT3 2019A CAT Truck Diagnosis Kit(CARTON BOX)
CAT Communications Adapter III (317-7485) is the latest generation of the CAT Communication Adapter group,and replaces the CAT Adapter II for Diagnostic Trucks, Excavators, Air Compressors, Ships, Drilling Rigs….Heavy Duty Vehicles.Caterpillar ET3 Adapter allows communication between service tools and engine controls using various data links such as J1939/11, DeviceNet (future release), CAT DataLink, and J1708 (ATA) vehicle networks; When you flashing the engine it will automatically selects J1939/11(reduces the flash time approximately 80%, from 14 minutes to 3 minutes).

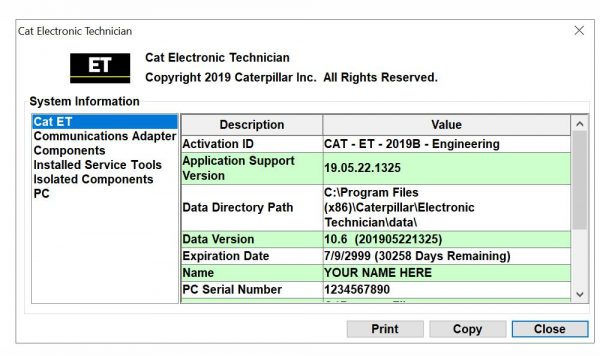

CAT Electronic Technician is a diagnostic software that can help technicians to diagnose existing and potential problems with their electronically controlled Cat Engines and Machines
This diagnostic application CAT ET3 2019A allows you to: Change vehicle parameters Lock / unlock parameters Diagnostics and reconfiguration Reading ECM flash error codes
CAT3 Adapter notice:
1.Part Number :317-7485
2.Standard SW version 2019A(If you need High Quality CAT adapter with newest 2023 software ,Check this CAT ET4 )
3. CAT Eletronic Technician Software supported install on windows 7,10
4. Multi-Languages :English,Danish ,French ,German,Italian , Japanese , Portuguese , Spanish
5. You can connection CAT Truck by USB wire .(Wi-Fi connection not good )
Caterpillar ET3 Adapter Functions:
– View active and registered diagnostics.
– View events where irregularities occurred and were recorded by the ECM.
– View the status of a group of parameters (temperatures, pressures, etc.) simultaneously.
– Register and record performance data.
– Graph a group of state parameters.
– View the current configuration of an ECM
– Change ECM configurations.
– Diagnostic tests.
– Calibrations.
– Print reports and diagnostic results.
CAT3 Truck Diagnostic Kit included :
CAT3 Adapter MUX

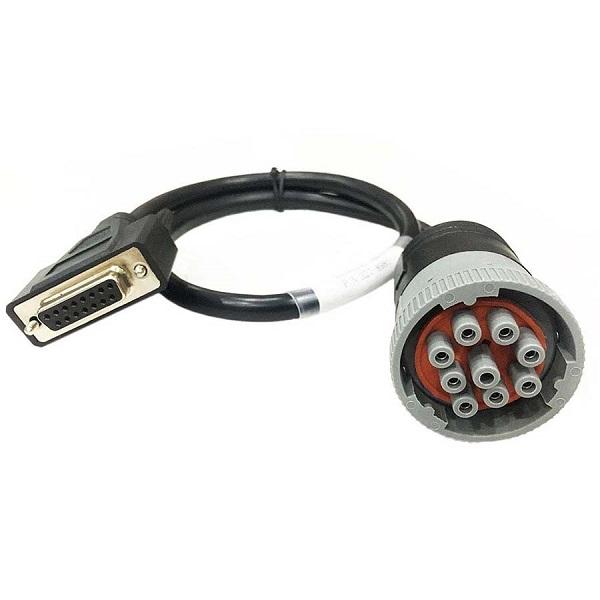

9PIN cable

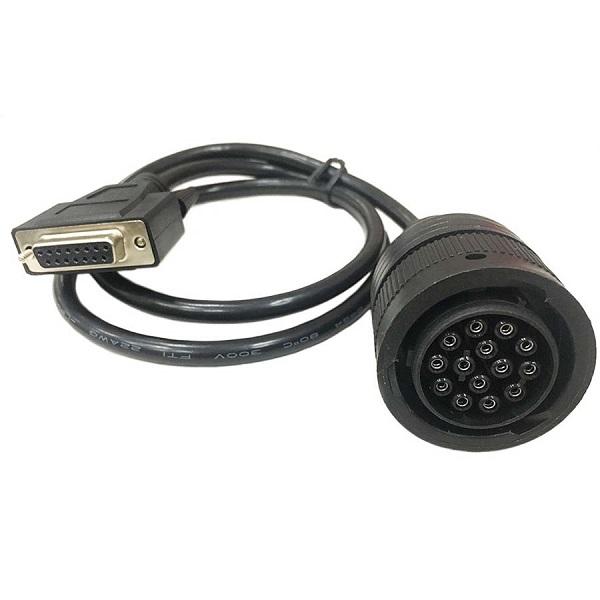

14PIN cable
16PIN cable

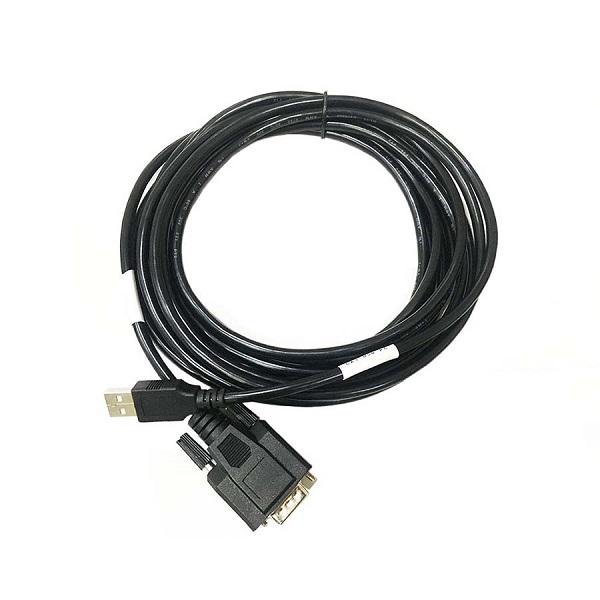

RS232-USB Cable
CAT Electronic Technician 2019A CD
