Description

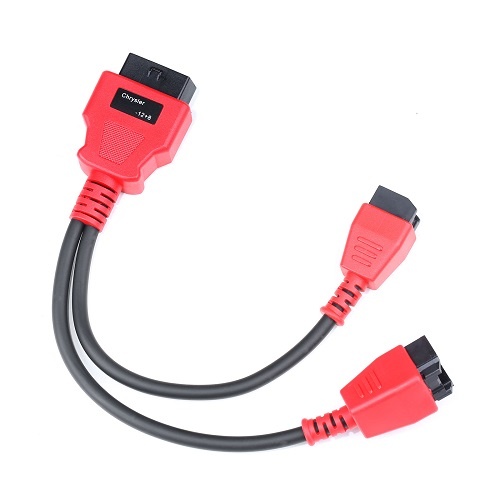

This Chrysler FCA 12+8 cable is a bypass solution for the security gateway module (SGM or SGW). It is used with other diagnostic equipment to read and clear fault codes.
FCA 12+8 cable Connection Method:
1.Locate and unplug the 12pin and 8PIN connectors of the SGW module.
2.Then connect the FCA 12+8 directly to the 12pin and 8pin (two connectors connected to the SGW) connector on the car.
3.Used with OBD2 diagnostic equipment, normal communication with the car can be achieved.
Applicable to FCA models in 2018 or later, non-original equipment can only be used to read fault codes,
identify vehicle VIN and view data flow through OBD diagnostic station.
chrysler 12+8 Cable Necessary for Vehicles:
20% of 2017 Chrysler products
50% of 2018 Chrysler products
90% of 2019 Chrysler products
100% by 2020
Example
Jeep: 2018+ Renegade, 2018+ Compass, 2018+ Cherokee, 2018+ Wrangler, 2018+ Grand Cherokee
Dodge: 2018+ Ram, 2018+ Durango, 2018+ Journey, 2018+ Charger, 2018+ Challenger
Chrysler: 2018+ Chrysler Pacifica, 2018+ Chrysler 300
Chrysler FCA 12+8 cable Features and Functions:
1. Read/ Clear Codes
2. Perform Active Tests
3. View Generic & Manufacturer Live Data
4. Perform TPMS OBDII Relearn
5. Coding and Adaptation with Autel Maxisys Tools
6. ADAS calibrations (Requires Maxisys ADAS Software)
