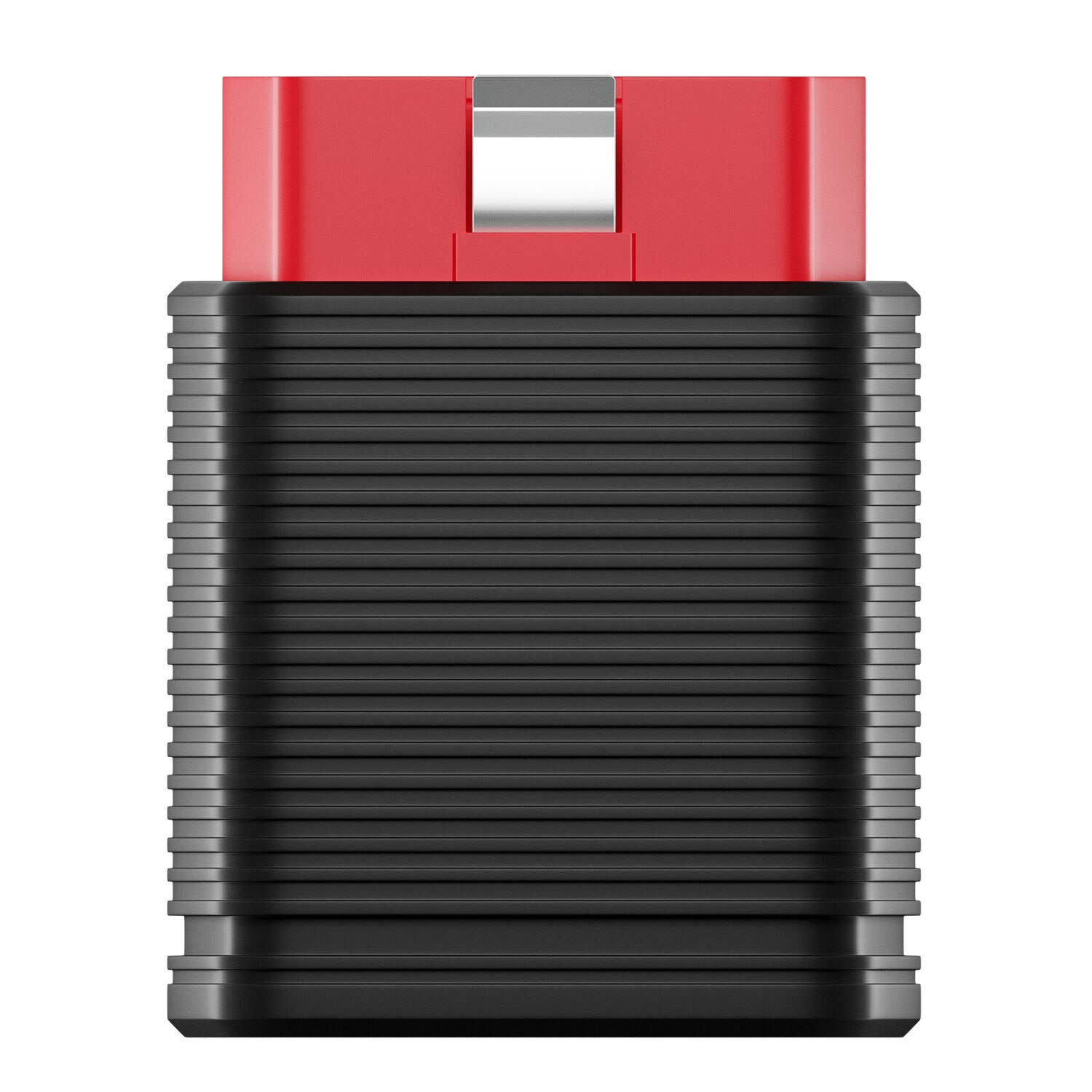

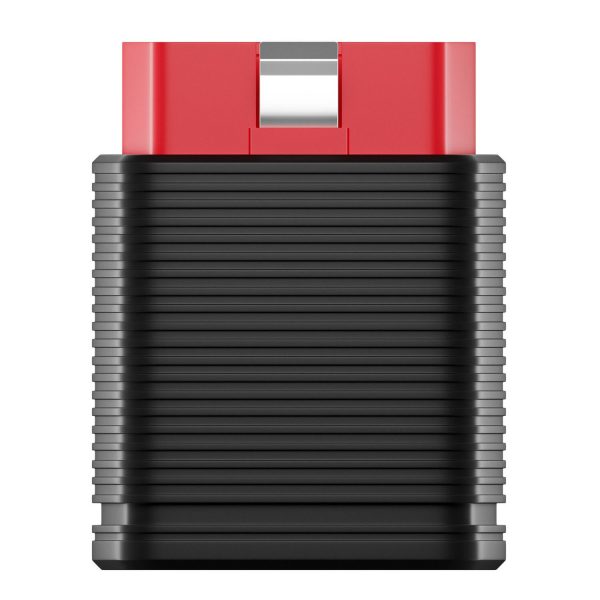

KINGBOLN EDIAG MINI OBD2 Scanner & Mini Thinkdiag diagnostic adapter

Description

KINGBOLEN EDiag Mini is a portable, economical vehicle obd2 code reader , which including all system diagnosis  and 16 kinds of special service reset functions(ETS, IMMO, INJOR, OIL, SAS).EDIAG MINI is the simplified editon of Launch Thinkdiag ,usually we name it as Mini Thinkdiag and suitable for DIY users and small repair garage .

KINGBOLEN EDIAG is same as THINKCAR THINKDIAG ,Just different LOGO and different APP name . The Core and all functions same but more economical.

EDiag Mini Highlights :

1. All Car Brands License Activated and 1 Year Free Update Online
After 1 Year, you can pay EDIAG All Car Brands 1 Year License or pay for the unique software you need only in app.
2. Connect car via bluetooth on smartphone, app name is EDIAG
3. Plug EDIAG into the OBD port, open EDIAG App on the smartphone to do the vehicle diagnosis.
4. 16 kinds of reset service
5. Full System Diagnosis
6. Cover Up to 115 Major Vehicle Manufacturers: EDIAG covers 115 major vehicle manufacturers in the market, and keep updating
7. 12 Languages supported: English, French, Spanish, German, Italian, Portuguese, Japanese, Turkish, Polish, Greece, Russian, Traditional Chinese

Ediag Mini workable Protocols:

ISO 14230-4(KWP2000)
IOS 15765-4(CAN)
ISO 9141-2(IOS)
ISO14229(UDS)
SAEJ 1850(VPW&PWM)

Ediag Mini Bluetooth Diagnostic Scanner Functions:

1. Full System Diagnose

With superior all systems diagnostics, this multipurpose obd2 scanner can be used to read all available systems ECU information to facilitate the vehicle diagnosis. The complete systems vary from different cars and they usually include
engine, transmission, ABS, SRS, SAS, TPMS, EPB and chassis / body / electrical equipment system etc.

2. Traditional Diagnostics
Supports manual selection of car model software to complete vehicle diagnostics, including reading DTC, clearing DTC, reading data stream, reading version information, etc.

3. OBDII & EOBD Full Functions

1) Real-time data, MIL, IM monitors
2) Freeze frame data
3) Stored DTCs
4) Clear DTCs
5) O2 monitoring tests
6) Test results for continuously and non-continuously monitored systems
7) Pending DTCs
8) Request control of on-board-system or component
9) Request VIN and other data
10) Permanent DTCs

4. Supports 15 maintenance RESET functions:
