Description
The GM MDI2 (Multiple Diagnostic Interface 2) is used by professional technicians as an aid in diagnosing and repairing automotive electrical and electronic systems.
GM MDI 2 scan tool is designed to connect the vehicle for data transfer and Electronic Control Unit (ECU) reprogramming.
The newest GM Multiple Diagnostic Interface (GM MDI 2) offers increased processing power, security, and faster programming speeds on Global A and future Global B vehicles.
MDI interface and MDI2 big difference:MDI2 supports: CAN FD, ISO13400 DoIP, but GM MDI does not support.
This is not Genuie MDI 2 interface but with full Protocols support till Vehicles 2022 Year . We can help install softwares free by Teamviewer .
1:1 work exactly as original MDI2 Device(cost about 1500USD)
Not the cheaper clone MDI2 with MDI 1 in the case.
The MDI 2 supports diagnostic applications: GDS 2,Techline Connect,DPS2, Data Bus Diagnostic Tool, and Tech2Win.
It also supports Pass-Thru programming applications: TIS2Web–SPS.
It replaces the first generation MDI, introduced in 2007, for Pass-Thru programming on current GM models.
The MDI2 interface is backward compatible, so it can be used to perform Pass-Thru programming on all vehicles built since 1996 by means of the J1962 connector using a DLC cable.
High Quality GM MDI2 Communication Protocols:
SAE-J2534-1 2004, SAE-J2534-2 2010 Passthru Driver
ISO-22900-1/2 MVCI with D-PDU Driver
ISO13400-1/2/3/4 DolP Driver
CAN-BUS1:
HSCAN1/CANFD1:PIN6/14
CAN-BUS2:
HSCAN2/CANFD2:PIN3/8，PIN13/12PIN12/13PIN3/11PIN1/9
SWCAN:PIN1
CAN-BUS3:
HSCAN2/CANFD2:PIN3/8PIN13/12PIN12/N/N/
SWCAN:PIN1
Dual channel K-Line *13
K1-Line:K1,K2,K3K6K7K8K9K10K11K12K13K14K15
K2-Line:K1,K2,K3K6K7K8K9K10K11K12K13K14K15
ADC Input
Gigabit eCAT DB26 Output
Hundred megabytes USB2.0 HS network card

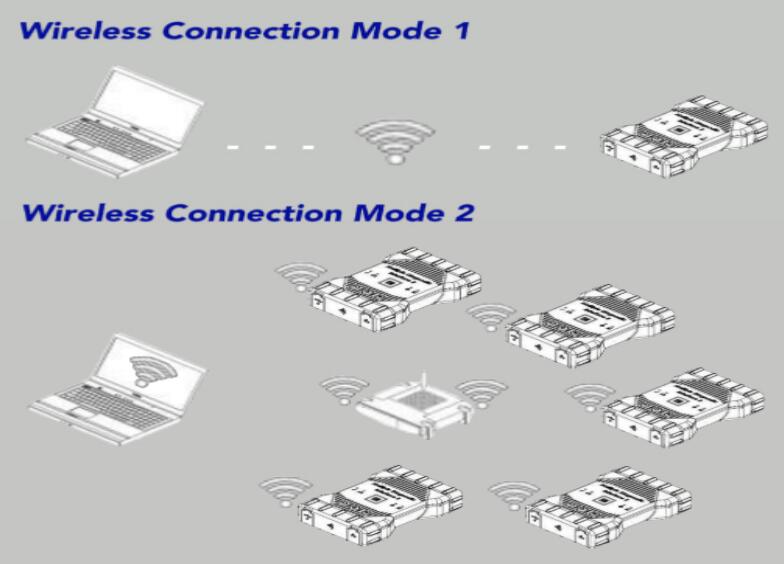

WIFI relay/bridge

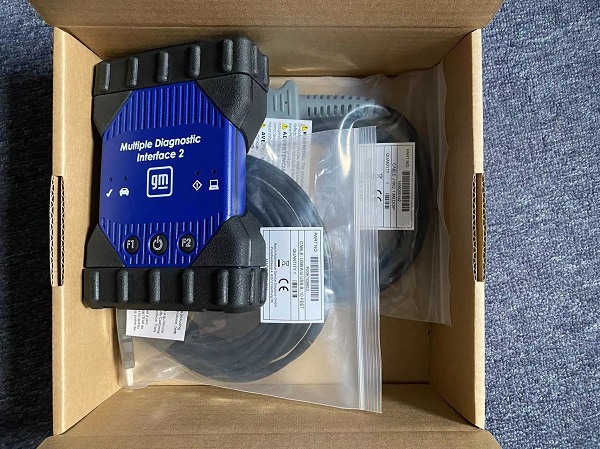

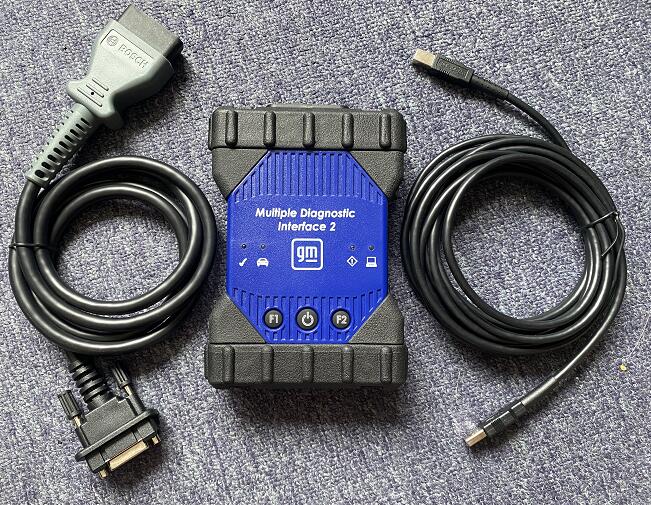

GM MDI 2 Kit Includes Components:

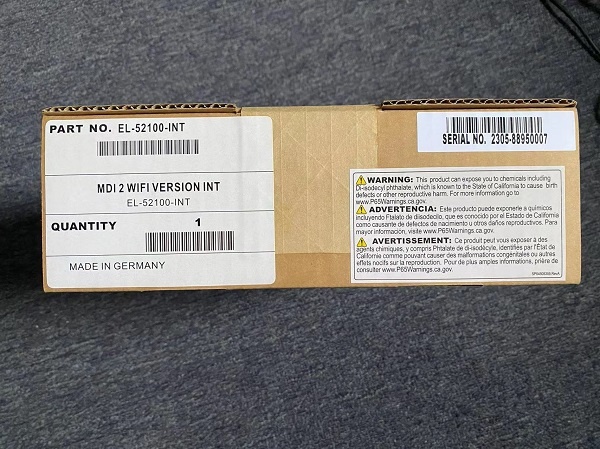

EL-52100 MDI 2 device(3 Years Warranty)
DLC OBD2 Cable SAE J1962
USB Cable
