//IDSS ISUZU Diagnostic Kit for Isuzu Truck,BUS, Industrial Engines

IDSS ISUZU Diagnostic Kit for Isuzu Truck,BUS, Industrial Engines

$529.00$579.00

Description

IDSS ISUZU Diagnostic Kit

IDSS ISUZU Diagnostic Kit have 2 Versions:  E-IDSS for Isuzu Industrial engines , G-IDSSS for Truck, Bus



Isuzu E-IDSS  Diagnostic

All regions
Languages:English, Japanese chinese
OS:Win7 x32, Win7 x64, Windows10 x32/x64
E-IDSS version:7/2018



Isuzu G-IDSS  Diagnostic

Region: Australia, Asia, Europe, Spain, Canada, China
Languages: English, Spanish, Chinese, German, French, Japanese,  Thai, Turkish, Ukrainian, Greek, Hungarian, Italian, Indonesian, Vietnamese
OS: Win7/Win10  x64&x86,
G-IDSS: 2/2018

Isuzu E-IDSS USB-Link works very well, but there is no ECU/ECM plug connector, so it can’t write data into ECM/ECU. Other functions can be perfectly  diagnosed, including Euro IV, Euro 5 DPF regeneration function, injector code, write VIN, diesel pump Functions such as adjustment functions  e-idss is software USB-LINK Special Edition is hardware. It can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU/ECM

It can test the Isuzu engine sensor, adblue and DPF of the Diagnostic Denso ECU but it can’t  test the Bosch and Delphi systems ISUZU. Only test denso isuzu,denso KATO,denso kobelco,denso Sumitomo denso HITACHI ECU/ECM.



DENYO
2005-2015 (4JJ1 Tier-4, 4HK1 Tier-4, 6WG1 Tier-4, 4LE2 Tier-4, 6WG1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Doosan
2005-2010 (6WG1 Tier-3, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4)
Hidromek
2005-2012 (4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Hitachi
2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 6UZ1 GB3, 6WG1 GB3, 4JJ1 GB3, 4HK1 tier-4, 6HK1 tier-4, 6UZ1 tier-4, 6WG1 tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 6WG1 INT-Tier-4, 4JJ Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Hokuetsu
2005-2014 (4LE2 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
HSC
2005-2010 (6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
IH  I
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
ISEKI
2006-2012 (4JJ1 INT-Tier-4, 4JJ1 Tier-3)
Isuz   u PT-China
200 5-2015 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Isuzu America
2005-2013 (4JJ1 Tier-4, 4LE1 Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3 Tier-4,
4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
IWAFUJI
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)
JCB H P
2005-2010 (6HK1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
KATO
2006-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3)
KCM
2005-2014 (6WG1 Tier-4, 6WG1 INT-Tier-4, 4HK1 Tier-3)
KG Flowtech no
2005 (4HK1  Tier-3)
Kobelko
2013 (4LE2 Tier-4)
Madill
2005 (6HK1 Tier-3)
Maeda Seisakusho
2013 (4LE2 Tier-4)
Morooka
2010 (4HK1 INT-Tier-4)
NH Kobelco
2005 (6HK1 Tier-3)
Nihon Josetsu
2005-2013 (4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)
Nihon Sharyou
2005-2006 (4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3)
Sakai
2005-2012 (4JJ1 INT-Tier-4, 4JJ1 tier-3, 4HK1 Tier-3)
Sanward
2005-2006 (4JJ1 Tier-3, 4HK1 Tier-3)
Sany
2005-2014 (6WG1 GB3, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4JJ1 Tier-3, 4HK1 Tier-3)
Shinko Engineering
2005 (4HK1 Tier-3, 6HK1 Tier-3)
Sumitomo
2005-2015 (4JJ1 Tier-4, 4HK1 GB3, 6HK1 GB3, 4HK1 Tier-4, 4JJ1 GB3, 6HK1 Tier-4, 4LE2 Tier-4, 4JJ1 INT-Tier-4, 4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 6UZ1 INT-Tier-4, 4JJ1 Tier-3, 6UZ1 Tier-3, 4HK1 Tier-3, 6HK1 Tier-3, 6WG1 Tier-3)
Ta     keuchi
2 006-2013 (4JJ1 Tier-4, 4JJ1 INT-Tier-4, 4JJ1 Tier-3)
Unicarrie   rs
2005-201 0 (4HK1 INT-Tier-4, 6HK1 INT-Tier-4, 4HK1 Tier-3, 6HK1 Tier-3)
Uota ni
200 5 (4HK1 Tier 3)
Yamabiko
2005 (4HK1 Tier-3, 6HK1 Tier-3)

Isuzu IDSS Global Diagnostic services System (G-IDSS )

ISUZU G-IDSS USB-Link works very well,but there is no ECU/ECM plug connector,
so it can’t write data into ECM/ECU.Other functions can be perfectly diagnosed, including Euro IV, Euro 5 DPF regeneration function, injector code, write VIN, diesel pump Functions such as adjustment functions.
G-IDSS is software,USB-LINK Special Edition is hardware.It can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU/ECM.It is special edition,so don’t choose USB-Link everytime,only one time choose USB-LINK driver is ok.
IDSS USB-Link can only test the Isuzu engine sensor, adblue and DPF of the Denso ECU.

NOTE: Supports ALL REGION trucks except North America , It is complete kit, ready to use.

SERVICE INFORMATION,NOT AVAILABLE ON ALL MODELS ….!!!

IDSS ISUZU Diagnostic G-IDSS :

G-IDSS exclusive software for Isuzu vehicles. With each new release of the G-IDSS program, additional vehicle engine configurations and controller systems may be supported. Controller Programming allows you to update and reprogram various vehicle controllers based on part numbers and/or new available calibration files. You can program the following types of controllers by selecting Controller Programming from the TOC:



IDSS ISUZU Diagnostic G-IDSS functions are:

• Service Infomration;
• Diagnostics (Engine, Transmission, Chasis, Body);
• Controller Programming

Select OEM, Model Year, Engine Model and Engine Type drop down menus
Enter Engine Serial Number window

ISUZU_G-MC: 1996-1999 NPR Diesel and F Series Include NPR/W 3500, NPR HD/W 4500, This is for 6.0L V-8 Gasoline Engines only, 7.8L
Heavy-duty ISUZU 6HK1 Engine 6WG1  6WF1.
Isuzu: NPR, NPR HD, NQR, NRR, FTR, FVR, FXR with 6HK1 LG4 Engine, NPR, NPR HD,NQR, NRR with 5.2L (4HK1) or 3.0L (4JJ1) Diesel engine. 6.0L V-8 Gasoline Engine

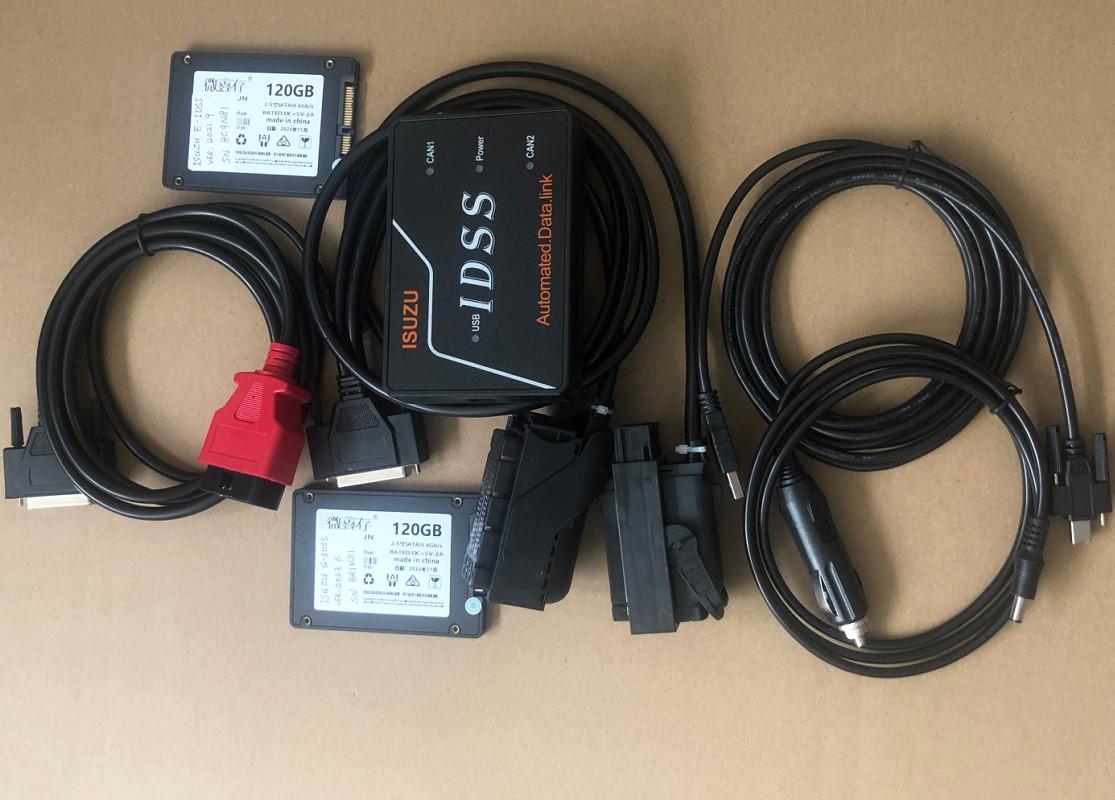

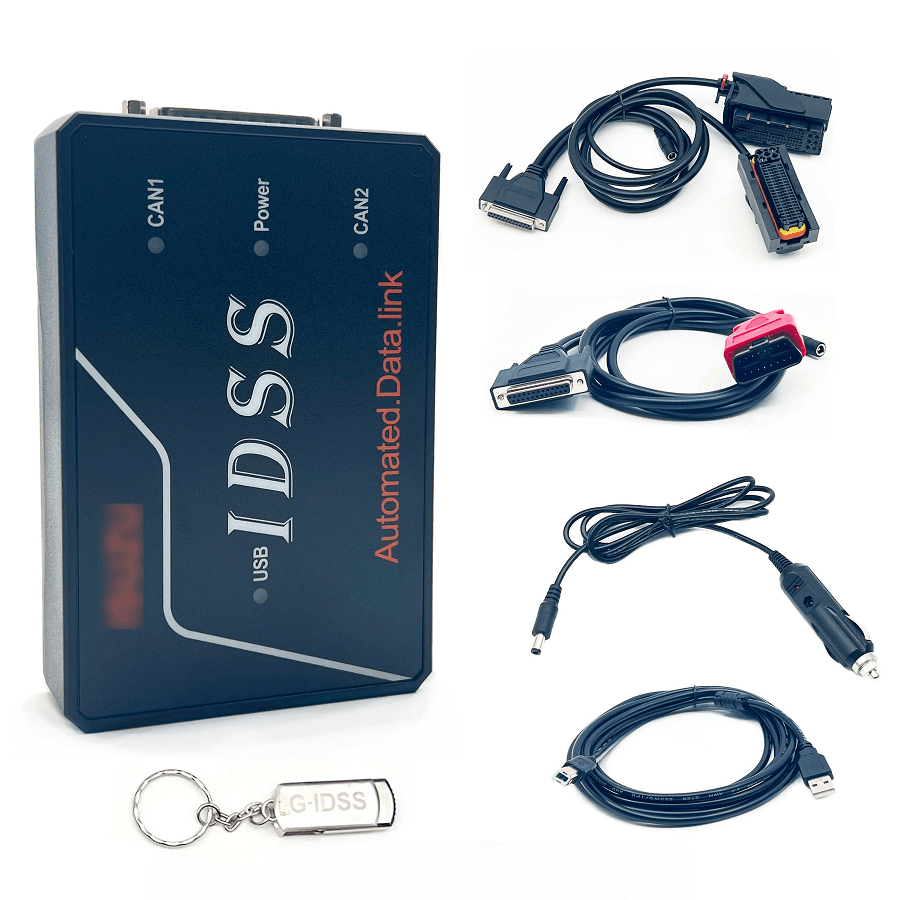

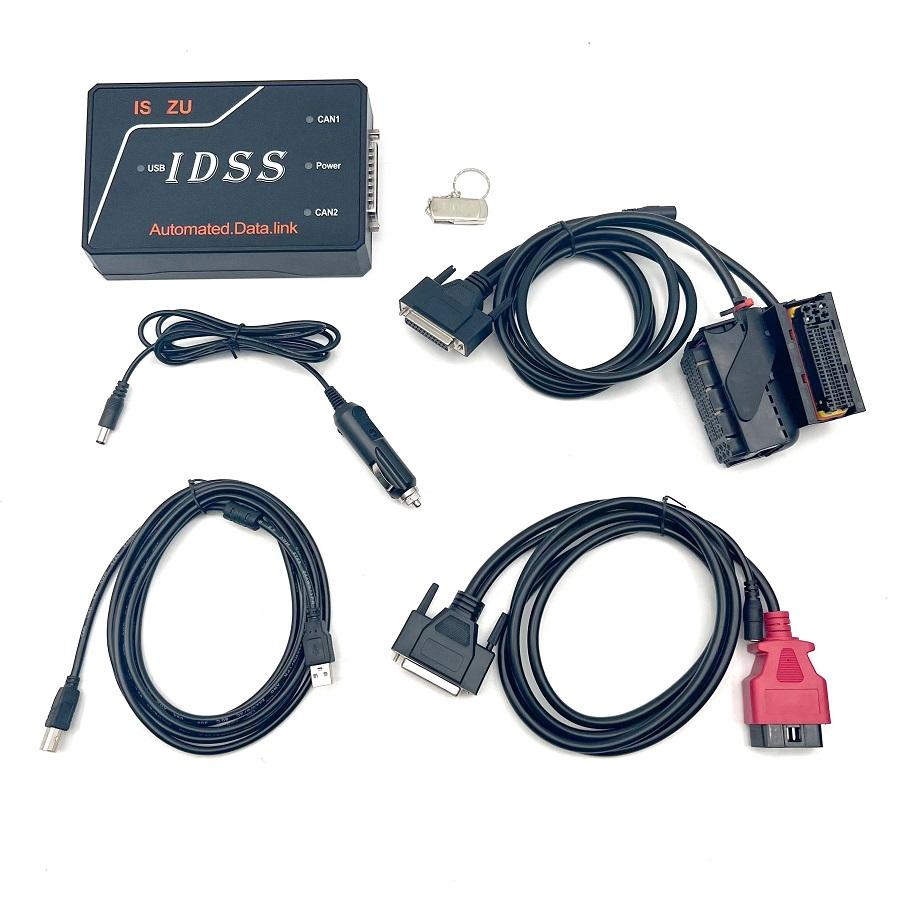

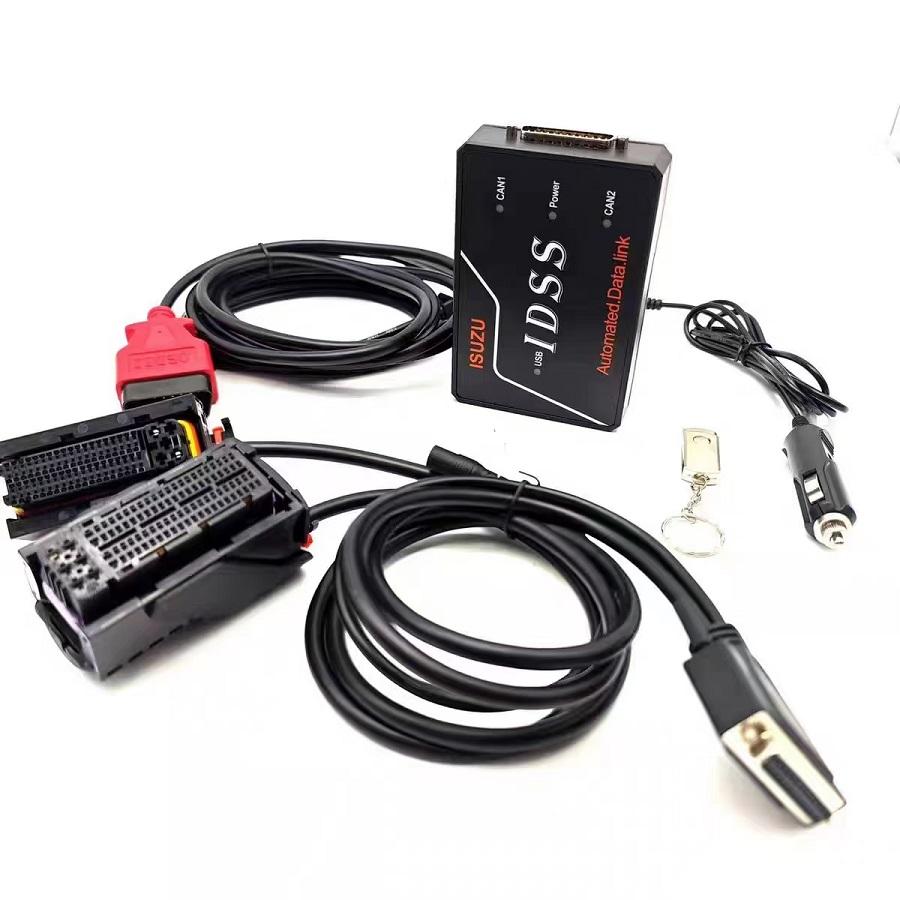

IDSS ISUZU Diagnostic Kit includes:

1pc x E-IDSS program or G-IDSS(Diagnostics activation,reflash not activation)

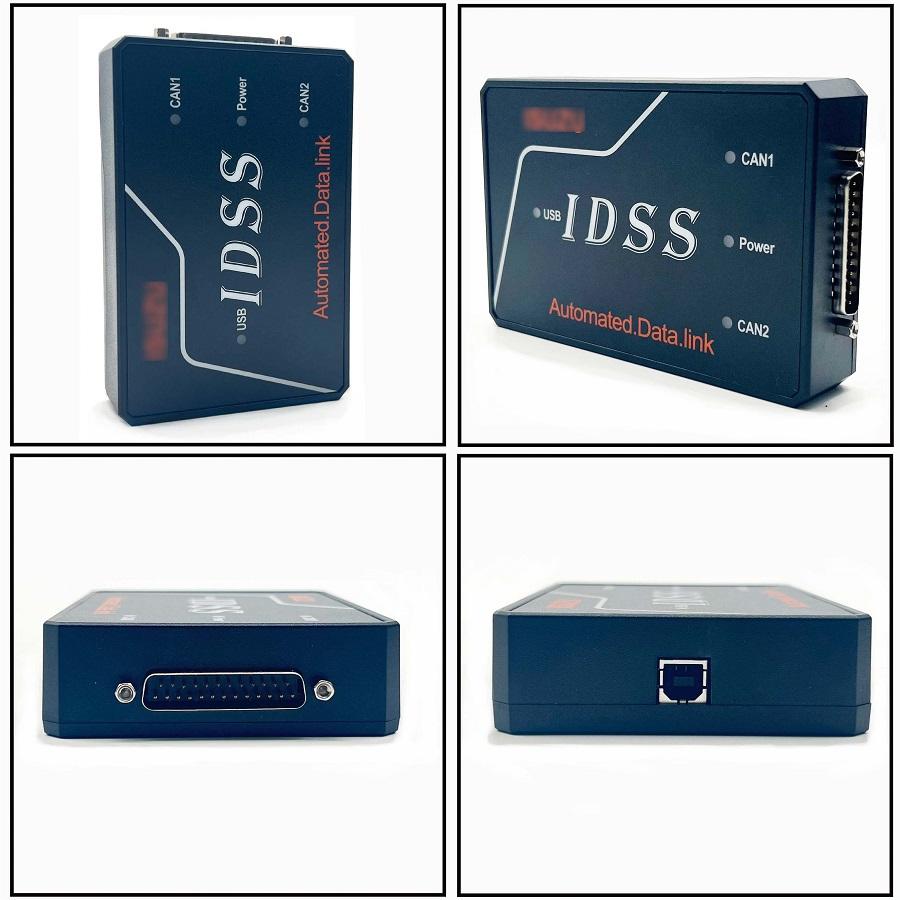

1pc x IDSS USB-Link 1 adapter
1pc x USB cable
1pc x 6-pin/9-pin American cable
1pc x Isuzu IDSS OBD2 cable
1pc x Isuzu Cable With DC 2.1 Famale
1pc x HITACHI EMPS-III Cable
1pc x CANBUS 3pin

Additional information

Weight 2.0 kg
Version

ISUZU E-IDSS, ISUZU G-IDSS
