KT200II ECU TOOL support Bench/OBD/BOOT/BDM /Jtag Mode

Description

KT200 II ECU Tool is newest ECU Chip tunning tool ,which have been reaplce the older ones KT200 programmer .KT200II upgrades new protocols and commits to regularly updating more.
Resolves automatic checksum issues found in the KT200, enhancing read/write efficiency.
As professional ECU reading and writing equipment ,it covering 99% of the models in the market.KT200 II Programmer prefect Support OBD /BDM/JTAG , BOOT and Bench Mode with multiple protocols.

KT200 II ECU Tool Note:

1. KT200II software is not compatible with KT200.
2. KT200II Offline Workstation dongle make it works offline mode (without the internet connection)
3. Compatible operating systems: Windows 7. Widows 8/8.1.Windows 10, Windows 11
4. Minimum recommended requirements: CPU>2.5 GHz (lntel i5,7) RAM 8GB
5. Language: Italian, English, Dutch, French, Spanish, Polish, Portuguese, Czech, Romanian, Turkish
6. Auto version Licenses: Car OBD, Truck OBD, BENCH mode ,TCU Gear,Full System, BDM/JTAG, TOOL BOOT.
7. Full configuration version: Car OBD, Truck OBD, BENCH mode ,TCU Gear,Full System, BDM/JTAG, TOOL BOOT,Tractor OBD, Boat OBD, Motorbike OBD.

KT200II Update Logs May 2024

• Read Delphi DCM6.2V via Pinout without opening the control unit, while it could VR read and write before.
• R/W Isuzu and Saic Bosch MD1CS089 on Bench.
• R/W DeuTz, Isuzu and Manitou Bosch MD1CC878 Bench mode.
• R/W Kubota Tractor AD-Blue Denso 2760xx Bench mode.
• BOSCH ME17/EDC17 > 2021 (TPROT V14) Control units with new TPROT V14 protections  for vehicle models from 2021 onwards for ECUs with TC1724 and TC1793 processors.
  ME17.3.0 and EDC17C69 mounted on the FCA group
• R/W Suzuki Marelli 8DS on Bench

Update January 8th, 2024:

• Suzuki Denso 3390-76xx Bench mode.
• DCU17 DV51 JCB OBD Mode.
• TCU FCA 62TE Boot mode.
• TCU 9G Tronic VGS-NAG3 Bench mode.
• TCU 7G Tronic VGS-NAG2 Bench mode.
• ME17 ECUs of DR, Baic, Chery from 2020.
• PSA Delphi DCM7.1A via OBD.
• Nissan Renault EDC17C45 via OBD.
• PSA SID807/ SID807EVO.
• Siemens/CONT. TCU 7G Tronic VGS-NAG2 Bench mode.
• Bosch TCU 9G Tronic VGS-NAG3 Bench mode.
• Continental TCU FCA 62TE Boot mode.
• Bosch DCU17 DV51 JCB OBD Mode.
• Suzuki Denso 33920-76xx Bench mode.

New added functions :

• NEW FULL SYSTEMS FOR DELCO OPEL / CHEVROLET / GM ECUs
  We have added to the list of DELCO bench protocols already present, also the complete management of the control units mounted on OPEL / CHEVROLET / GM
  cars: DELCO E38 ,DELCO E67 ,DELCO E84 ,DELCO E92
  The possible operations are: Micro + EEPROM reading Micro + EEPROM writing Recovery Checksums
• NEW AUTOMATIC FUNCTION: TRICORE CLONE Added automation to clone the following control units with OTP zone adaptation and password:
  √ FCA EDC17CP27
  √ HYUNDAI / KIA MED17.9.8
  √ IVECO EDC17 C69
  √ JAGUAR MEDC17.9
  √ JAGUAR EDC17CP11
  √ LAND ROVER MEDC17.9
  √ LAND ROVER EDC17CP11
  √ SUZUKI MED17.9.63
  √ TOYOTA MED17.9.52

NEW FULL SYSTEM DRIVERS FOR BOSCH TCU ECUs:6L45 6L50 6L80 6L90

1. Micro + EEPROM reading
2. Micro + EEPROM writing
3. Recovery

NEW FULL SYSTEM DRIVER FOR MARELLI 8GMC ECU mounted on Fiat / Abarth:

• Micro + EEPROM reading
• Micro + EEPROM writing
• Recovery
• Checksums

NEW BOOT MODE FOR SIEMENS SIM2K-305 ECUs mounted on Hyundai and Kia cars.

1. Micro + EEPROM reading
2. Micro + EEPROM writing
3. Recovery
4. Checksums

NEW BENCH MODE FOR MG1CA007 ECU mounted on Indian Motorcyle.

• Micro SPC58 + EEPROM reading
• Writing Micro SPC58 + EEPROM
• Recovery
• Checksums

NEW OBD DRIVER FOR DELPHI DCM7.24 ECU on new JCB vehicles.You can read and write to the ECU via the 9-pin diagnostic socket.

• Virtual reading
• Writing
• Recovery
• Checksums

NEW OBD DRIVER FOR PHOENIX L40 ECU  on new JOHN DEERE 8R Series vehicles.

• Reading and writing is carried out via the 9-pin diagnostic socket or via the control unit pinout.
• Automatic saving and writing of injectors.
• Reading
• Writing
• Recovery
• Checksums
• Injector coding

NEW DRIVER BENCH MODE FOR TRW EMS2.4 ECUs on VOLVO TRUCK and RENAULT TRUCK

• Micro + EEPROM reading
• Micro + EEPROM writing
• Recovery
• Checksums
• It is possible to connect to the control unit using the Multifunction Cable supplied, or with the DFB-D48CBB04 – TRW EMS2.2/3/4 cable.

NEW OBD DRIVER FOR BOSCH EDC17 C11 NISSAN – OPEL – RENAULT

• Reading
• Writing
• Recovery
• Checksums
• Communication alternatives in BENCH MODE via pinout and BOOT MODE remain possible.

NEW OBD DRIVER + BENCH MODE FOR BOSCH MD1CS069 JOHN DEERE

• Real Reading + Virtual Reading
• Writing
• Recovery
• Checksums
•  Bench Mode for complete management via Pinout.

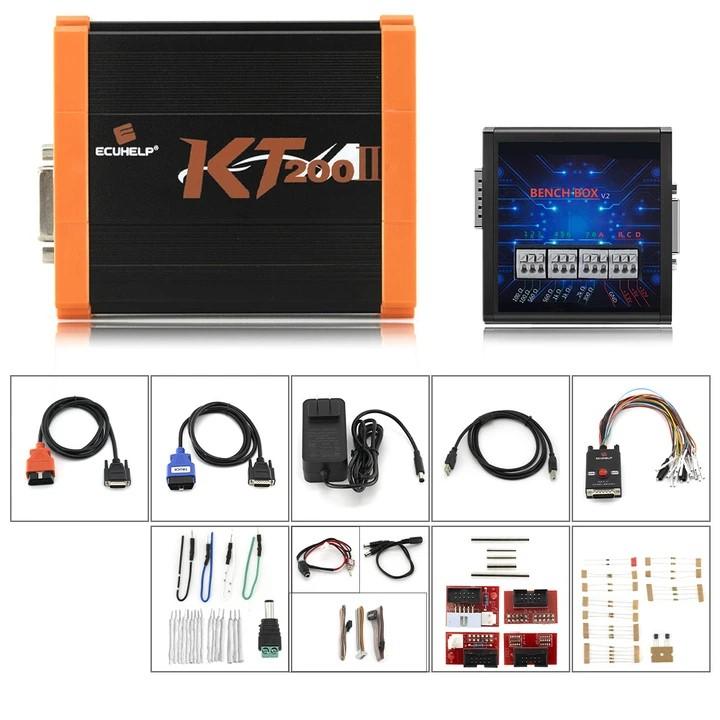

ECUHELP KT200II Package Includes:

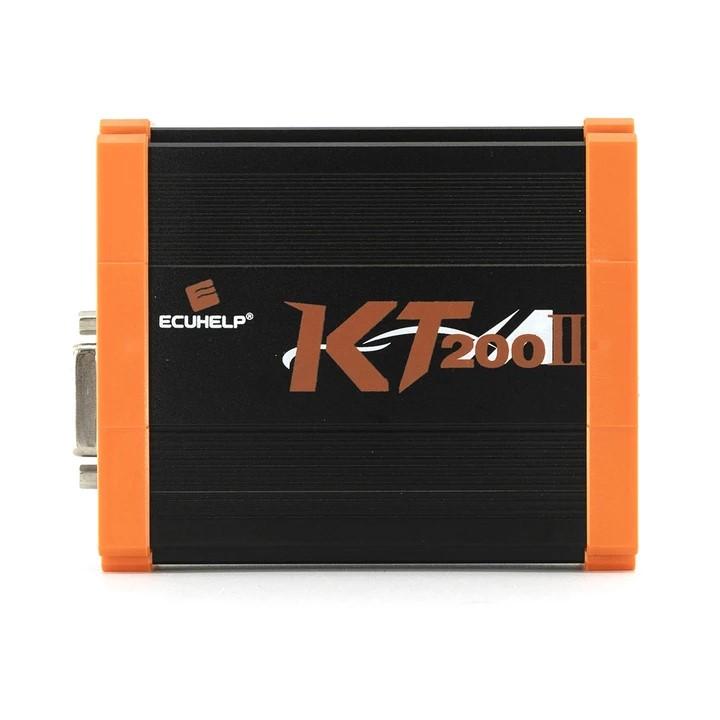

• 1pc x KT200-II Host
• 1pc x BENCH box
• 2pcs x OBD wires
• 1pc x pinout line
• 4pcs x BOM adapters
• 3pcs x Transfer cables
• 4pcs x Power wire
• 1pc x Set of resistors
• 4pcs x Adapter plugs
• 5pcs x Power adapters

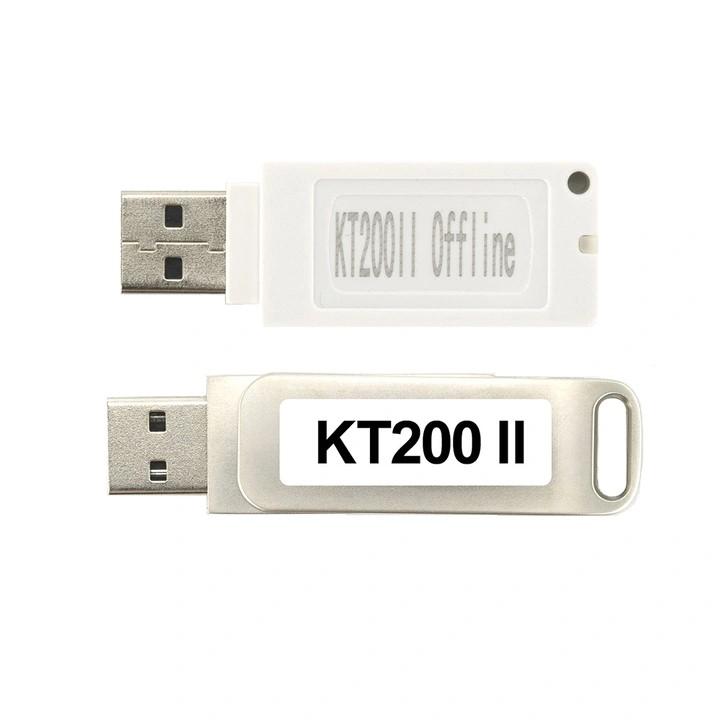

• Offline Dongle (only on Full version )
