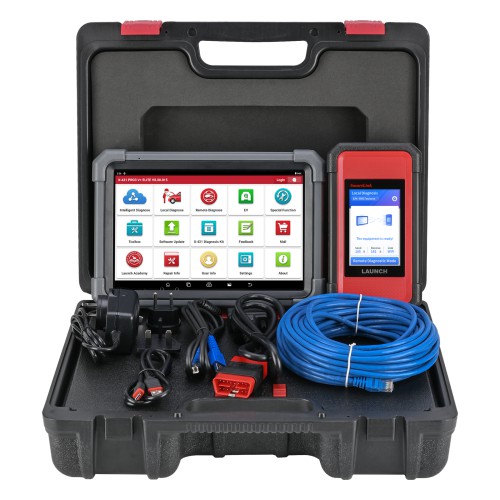

Name: LAUNCH X431 PRO3 V+ Elite with SmartLink J2534 Programming,AutoAuth Access
SKU: 28874
Availability: InStock

Description

LAUNCH X431 PRO3 V+ Elite is the upgrade of X-431 pro3s+. Which Support ECU Online Coding, Topology Mapping, with Smartlink 2.0 CANFD & DOIP.
X-431 PRO3 V+ Elite scanner is a bi-directional scan tool that can control various sub-systems or components to perform active tests (also known as component tests) like turn fuel pump on/off, cycling the A/C Clutch on/off, EVAP test, windows, doors, sunroofs, wipers and more, to determine the integrity, monitor the operations to check whether they are functioning properly or not and quickly locate the fault causes.

Notice:

Global Version for Customers outside the UK and EU countries
UK/EU Version for UK/EU Countries customers
This kit without OBD adapters for older models ,if need You can check X431 PRO3S+ Elite.

Launch X431 PRO3 V+ Elite Advantages:

Added SmartLink C 2.0 J2534 Box
2 Years Free Update
J2534 Programming is done when no band end Programming occurs, the coding data doesn’t exist, or other module problems happens.
Support CAN 2.0/CANFD/DoIP New protocols: Cover for GM, for BMW E/F/G Chassis, for Jaguar, for Land Rover models…etc
Intuitive color-coded Topology Map displays structures between vehicle modules for easier analysis, serving as reference for practical repair.
VAG guided functions
AutoAuth Service, Access 2018+ FCA SGW Module
Through Pin Detection, technicians can access the voltage of OBDII diagnostic socket pins and supported protocols, so as to accurately determine the status of OBDII diagnostic interface.
60+ Reset Functions to fix issues of injector, EPB, BMS, power balance, etc., serving for more vehicles around the world.
D-PDU allows to access real-time ECU data, work efficiency in diagnosing and fixing faults; makes different devices compatible with each other.
ECU coding, 3000+ active tests
OE-level all system scan, more accurate diagnostics, and quicker car solution. All available on worldwide cars, stronger vehicle support>others.
With one-click updates, you gain access to the latest functions and software versions, ensuring you never waste a moment of your time.
Upgraded Hardware:4+64G memory based on Android 10.0 for more stable system running and wider compatibility, 10-inch sharp touchscreen for clear display even in sunlight, 6300mAh battery for higher power and expanded usage time, replaces OBD 16 with DB15 for stronger connection, etc.
25+ Language Support: English, German, Spanish, French, Traditional Chinese, Japanese, Polish language, Portuguese, Russian, Korean, Dutch, Swedish, etc. You can quickly change language settings by yourself.

Add Modules to Expand Features

1) ADAS Calibration Toolkit: calibrate driver assistance systems;
2) VSP-600 VideoScope: inspect areas inaccessible;
3) X431 TSGUN: full-capacity TPMS functions;
4) BST-360 Battery Tester: test battery in-vehicle or out-of-vehicle;
5) X-PROG3 Immobilizer: advanced key programming; IMMO service;
6) Heavy Duty Truck Module: you can buy truck license only, or license+truck cables
7) WiFi Printer: To print out diagnostic reports, live data, and other information;
8) O2-2 Scopebox: detects high level faults on various electrical components, such as sensors, acturators and circuits.
9) S2-2 Sensorbox: diagnosing/testing/simulating most vehicle sensor faults

Newly Added Functions:
10) EV Diagnostic Kit diagnose battery pack State of Charge and State of Health on Tesla, BYD and many other electric vehicles.
11) Adds Launch X431 key programmer for remote generation
12) Adds IMMO Function Update Service for Launch X431 PAD VII / PRO5/ Pad V (Activate IMMO Plus/IMMO Elite Function)

X431 PRO3 V+ Elite Functions:

1. ECU Coding

Online/Offline Coding: LAUNCH X431 PRO3 V+ Elite diagnostic scan tool has the capability of ECU coding to change preprogrammed options in the software, helping you customize your car faster as needed. Optimally code your car by changing some settings to fit your needs, such as setting alarms, doors locking, etc.
Reflash Hidden: Access the ECU to make full use of the hidden features or disable the car’s annoying functions, like activating the auto side mirrors folding function, disabling the automatic engine Start or End function, etc. Provide excellent solutions for issues of drivability, power loss, fuel efficiency, etc. to improve the car’s performance.
Matching: Reprogramming the adaptive data, matching and synchronizing the components for certain components after repairs or replaces the modules.

Please Note: ECU Coding changes preprogrammed options which depend on the type and number of electronic features already built in. Thus, ECU coding is not universally compatible and varies for different vehicles.

ECU Coding Compatibility

Online Coding: BMW, VW, Audi, Skoda, SEAT, Porsche, etc.
Offline Programming (Variant Coding): BENZ, Ford, Mazda, Vauxhall, Opel, etc.
Flash Hidden Functions: Benz, BMW, VW, Audi, Skoda, SEAT, Porsche, Jeep, Dodge, Chrysler, Toyota, Honda, etc.
Power Balance Test: Cylinder power balance testing can help uncover hidden engine issues related to engine misfires, lack of power or just a poor running engine, which is commonly missed with other tests. It’s one of the best and easiest ways to find the source of a engine misfire. Furthermore, cylinder power balance testing is often used along with a cylinder compression and cylinder leakage tests to further pinpoint the problem.
PMI(Proarammable Module Installation): LAUNCH X431 PRO3 V+ Elite Support PMI function, Compatible with Ford /Lincoin/ Mazda etc. This function is used when you need to replace a module (replace ECU) or initialize a module.No need using the J2534 or buying a subscription.
Guided Function for VAG vehicles: LAUNCH X431 PRO3 V+ Elite car scan tool provides step-by-step repair guidance for technicians.the function of guiding the use of the product to prevent the car setting caused by wrong operation. Compatible with VAG series vehicles(V-olkswagen / Audi / Skoda / Seat etc.)
AutoAuth for FCA/ SGW: Use the latest software update function AutoAuth to provide OBDII diagnosis, active testing, calibration, etc. for modern FCA/SGW vehicles, making the diagnostics more secure.Applicable to FCA vehicles equipped with a security gateway module (SGW) in 2017 and later (NOTE: FCA Americas can be registered and used)
ACTIVE TEST (BI-DIRECTIONAL CONTROL ) : LAUNCH X431 PRO3 V+ Elite car scanner diagnostic tool Features Full bi-directional control ability, to send commands to vehicle’s systems/components, to verify system input/output without using the vehicle’s controls, e.g. turn on the radiator fan, modulate the throttle, open/close windows, operate mirrors, Injector Buz Test,turn on interior & exterior lights, sound horn, test door lock actuators and such.

Topology Module Tree
LAUNCH X431 PRO3 V+ Eliet offers color-coded topology display based on actual circuits. Giving up basic graphics, this intuitive map greatly help repair by showing the vehicle topology and relationship between ECUs. One-stop service makes your diagnostics easier by accurately identifying DTCs and offering solution steps. Online videos, circuit diagrams, repair instructions, real case, etc., all in X431 FIX database to make your job 500% easier!

What Can We Do Through J2534 Programming?

Program Blank ECU: match OE configurations with the software & settings after ECU rep1acement.
Refresh the ECU: write new data and information into the used ECU to ensure proper running.
Restore ECU Information: rest0re the original data if needed.
Upgrade ECU Software: upgrade the software to the latest version.
Through J2534, you can easily perform ECU programming for much more models (including Toyota, Honda, V.W, B.MW, F.ord, GM, Chrys1er, B.enz, etc.), getting in your bag OE functions of multiple brands.
Note: J2534 programming uses SmartLink C . Touch us to get “J2534 Operation Manual”.

Why is ECU coding so important?

To produce more payback & profit; keep more jobs in house, gain more control over the quality of repair, and increase shop capabilities.
To recode the adaptive data for new ECU modules setup.
To fix complex ECU-controlled issues
To customize and advanced settings

Worry about loss of ECU data? LAUNCH offers:

Cloud-Based Data: upload the coding data to LAUNCH cloud rather than just storing in hard disk. You’ll still access to the data even if the hard disk goes wrong.
Data Backup/Restore: create a backup of ECU data stored in the control modules, and restore the original data if needed.
Note: This feature can’t work on all vehicles. Compatibility depends on the model and year of your car.

2. All System Diagnosis

LAUNCH X431 PRO3 APEX reigns supreme as the universal scan tool, adept at diagnosing all systems on 99% of vehicles traversing the roads. Experience diagnostics elevated to OE levels, enabling you to decode even the most intricate complexities that lie beneath the surface.

PCM (Drive System): Unveil the secrets of the engine, transmission, transfer case, electrical machine electronics, gear, and more.
Chassis System: Explore realms like accumulator management electronics, steering, integrated chassis management, tyre pressure control, active cruise control, braking system, suspension, TPMS, and more.
BCM (Body System): Decode the language of SR-S airbag, camera, audio radio, gateway, cluster dashboard, rain sensors, charging interface module, parking assistance, power control unit, touch box, lights, battery charging system, head-up display, wipe control system, roof, seat & door motor systems, immobilizer, AB-S ESP system, air conditioning, electric windows, and more.
Electrical System: Navigate the complexities of centralized control, chassis integrated control and safety systems, and the intelligent body electronic system, as well as communication and information/entertainment systems.

3. 60+ Reset Service

4. LAUNCH X431 PRO3 V+ ELITE More Functions:

12-in-1 Graphic Live Data
This car scanner diagnostic for all cars features a mix of visual data that makes it easy to understand what’s going on inside your vehicle.
Each detail is presented in real-life data and live graphs of all systems including engine speed, temperature, mass air flow and such, 12-in-1, all in one screen! Imagine how fast it could be to evaluate your vehicle’s health at a glance.

Pre & Post Scan
Pre & post scan documents the pre-repair and post-repair condition, providing a clear comparison to help mechanics fix problems. This feature also confirms that all pre-repair faults have been resolved and detects if new error codes generated during the repair.

Auto-generated Diagnostic Report
This diagnostic tool can automatically generate a diagnostic report when your diagnostic work is successfully finished. The reports are saved in PDF format to maintain vehicle health logs.
As the diagnostic scanner connects to the Wi-Fi network, the reports can be printed via a printer or directly e-mail to others, to find solutions with people who are encountering the same issue or are familiar with similar vehicle repair.
Offer us the diagnostic reports when you are facing a complex car issues. We need this report for better data analysis.

Remote Diagnosis
In the event you can’t solve a problem, LAUNCH X431 PRO3 V+ ELITE integrates real-time online remote assistance.
Some other automotive scanners may offer similar features, but through the unstable and expensive TeamView.
While LAUNCH X431 scanner raises the standards again allowing you to ask for remote mechanic assistance via web browser, or one-for-one between two X431 users.
It has realized the reality that a mechanic can diagnose an abnormal vehicle which is even thousands of miles away, yet faster, simpler, and more stable.
