Noergon JPRO DLA 2.0 J1309 adapter Truck Diagnostic V2024

Description

Noergon JPRO truck scanner is a diagnostic communication device designed to interface between a vehicle and PC via USB cable for diagnostic and vehicle information, re-programming or parameter adjustments.
Noergon DLA 2.0 J1309 Adapter is the most comprehensive and powerful all makes, all models diagnostic tool available in the industry today. In one, easy annual subscription, JPRO provides a complete & unparalleled diagnostic service & repair solution with bi-directional functionality.

Noergon JPRO DLA 2.0 J1309 Highlights :

1. This is clone ones made in CHINA ,Original ones made in USA and expensive much
2. No Wi-Fi ,USB Connection only.
3. Jpro software advised installed on Windows 10,and do not upgrade it even it ask you to do.
4. Package free with 2023.v3 and 2024V2 Jpro Software CD.

5. Language: English & Spanish
6. We advise you use V2023.03 as the most stable version ,V2024 Jpro need set date to pervious and smaller size database files.

Noergon JPRO Coverage System:

• Body and Chassis:
  Bluebird, Ford, Freightliner, GM, International, Kenworth, Mack, Peterbilt, Sprinter, Sterling, Thomas Built, Volvo, and Western Star
• Engines:
  CAT, Cummins, Detroit, Ford, GM, International, Mack, Mercedes, PACCAR MX, Sprinter, Volvo
• ABS:
  Bendix, Ford, GM, Haldex, Sprinter, Wabash, WABCO
• Transmission:
  Allison, Detroit, Eaton, Ford, GM, Mack, Sprinter, Volvo, ZF

Noergon JPRO Truck Dignostic Tool Features：

1. Includes Heavy-Duty Modules: Mack, Volvo, Cummins, Detroit Diesel, International & PACCAR
2. Includes Medium-Duty Modules: Ford, GM, Isuzu & Sprinter
3. Bi-Directional Controls – Perform parameter changes (Mack & Volvo), DPF Regens (Mack, Volvo, Cummins, Detroit Diesel, International & PACCAR) & bi-directional tests with proprietary data & faults
4. OE Level Fault Code Information – Display over 99% of Heavy-Duty & Medium-Duty fault codes with detailed OEM level component and trailer descriptions
5. Fault Management – Clears faults and diagnoses all vehicle components in a single, easy to use application
6. Vehicle Reporting – View and print log files, including: Vehicle Health, Trip Reports & LOV Reports
7. Store & Save Data – Record data log files for playback at a later time, even away from the truck
8. Total Vehicle Health Status – See the entire vehicle in one pass on one screen + Up-to-Date – Provides 99% coverage of all heavy-duty truck DTCs through 2022

Isuzu – Supports 2008-2022 Isuzu trucks with either the 5.2L (4HK1) or 3.0L (4JJ1) engine in both North America
Cylinder Cut Out
DPF Service Regen

GM – Supports 2002 to 2022 GM models GMC & Chevy 1500, 2500, 3500, GMC Express & Chevy Savana, all GM Medium Duty Vehicles

• Gives users the ability to read and clear faults, read freeze frames, read sensor data, and display emission test results
• Supports cylinder cut-outs on all diesel & gasoline engines on years 2002 to 2018 (Except for CAT engines)
• Tests for 2010 to 2012 Express/Savana with 6.0L gas engines
• DPF Service Regen for 2010 to 2020 with 6.6L, 2017 GMC Savana, and Chevy Express with 2.8L

Ford – Supports 2004 to 2022 Ford models F-Series, E-Series, Transit Connect, and Transit Vehicles

• Gives users the ability to read and clear faults, read freeze frames, read sensor data, and display emission test results
• Enables users to run diagnostic testson components such as Key On Engine Off (KOEO) On Demand Self Test
• Sprinter – Supports 2007 to 2022 Sprinter vehicles
• Sprinter module gives users the ability to read and clear faults, rear sensor data, and display emission test results
• Supports EPA 2007 & newer engine tests: Cylinder cut-out, compression test, DPF regen, injector quantity adjustment, mass air flow sensor initialization, and initialize rail pressure
• Supports instrument clustomer (2007-2022) tests: Oil change reset, display dimmer test routine, gauge sweep test, LCD display test routine, and speaker test routine
• Supports tire pressure monitor – Tire pressure sensor test
• WABCO ABS
• ABS Lamp Test
• Wheel Speed Chart Test
• Wheel Speed Window Test

The software will now perform the following bi-directional commands:

1. Detroit Diesel – Bi-directional support for the following:
2. Cylinder cut-out for 2000 to 2014
3. DPF Service Regen for EPA 2007 to Current
4. SCR System Output Component Tests for EPA 2010 to 2013
5. SCR ADS Self Check for EPA2013 to Current
6. DPF Ash Accumulator Reset for EPA 2010 to Current
7. Idle Shut Down Timer EPA 2010 to Current
8. Cruise Speed Limit Changes for EPA 2010 to Current
9. Road Speed Limit Changes for EPA 2010 to Current
10. DEF Quantity Test for EPA 2010 to Current

Cummins – Bi-directional support for the following:

• Cylinder cut-out for EPA 2002 to Current (ISB, ISC, ISL, ISM, & ISX)
• DPF Stationary Regen for EPA 2007 to Current (ISB, ISC, ISL, ISM, ISX)
• Trip Reset for EPA 2007 to Current (All ECUs)
• Aftertreatment reset for EPA 2007 to Current (All ECUs)
• Fuel Injector Reset for EPA 2013 to Current (All ECUs)
• Fuel Leakage Test for EPA10 to Current
• Fuel Injector Calibration EPA 2007 & EPA 2010 (All ECUs)
• VGT Actuator Installation & Calibration EPA 2010 to Current
• VGT Hysteris Test for EPA 2010 to Current
• DEF Doser Pump Override for EPA 2010 to Current
• Change road speed, cruise speed, & idle shut down timer for EPA 2007 to Current
• DEF System Leak Test (EPA 10 ISB/ISC/ISL/ISX & EPA 13 ISB/ISL/ISX)

Mack & Volvo – Bi-directional support for EPA 2007 to Current:

1. Cylinder cut-out
2. DPF Stationary Regeneration
3. DPF System Reset
4. Learned data reset
5. Setting parameters (Cruise min/max, speed limits, idle shut-down times, and enable/disable cruise)
6. Trip reports & life of vehicle reports (Only Volvo 2012 & Newer and Mack 20007 & Newer)
7. Enable/Disable Driver Cruise Control
8. EGR Function Test (EPA 2013 to Current)
9. VGT Function Test (EPA 2013 to Current)
10. VGT Monitor Test (EPA 2013 to Current)
11. DEF Pressure System Test (EPA 2013 to Current)
12. International – Bi-directional support for EPA 2007 to Current:
13. Cylinder Cut Out Test (All MaxxForce & N-Series Engines)
14. DPF Stationary Regeneration
15. Aftertreatment Reset for EPA 2007 & 2010 MaxxForce 11/13
16. DOC/DPF Replacement for EPA 2013 N-Series Engines
17. KOER Standard Test for all MaxxForce and N9/N10 Engines
18. SCR Faults Reset for EPA 2013 N-Series Engines
19. Fuel Shutoff Valve for EPA 2010 MaxxForce 11/13
20. Fuel Doser Actuator for EPA 2010 MaxxForce 11/13
21. ETV Position Actuator for EPA 2010 MaxxForce 11/13 and N13 SCR Engines
22. EGR Position Actuator for EPA 2010 MaxxForce 11/13 and N13 SCR Engines
23. Air Management Test for all MaxxForce, N9, and N13 SCR Engines
24. DEF Doser Pump Override Test for N9, N10, & N13 SCR Engines
25. KOER Injector Tests for all MaxxForce & N9/N10 Engines
26. Fuel Pressure Adaption Reset (EPA 2007 to Current MaxxForce 7)
27. Idle Shutdown Time (EPA 2007 & 2010 MaxxForce 7, DT, 9, 10, 11, 13, & 15)
28. Road & Cruise Speed (EPA 2007 & 2010 MaxxForce 7, DT, 9, 10, 11, 13, & 15)
29. PACCAR MX Engines (Does not cover GHG17 Engines)
30. Automated Cylinder Performance Test
31. DEF Pressure System Test (EPA 2013 & Newer)

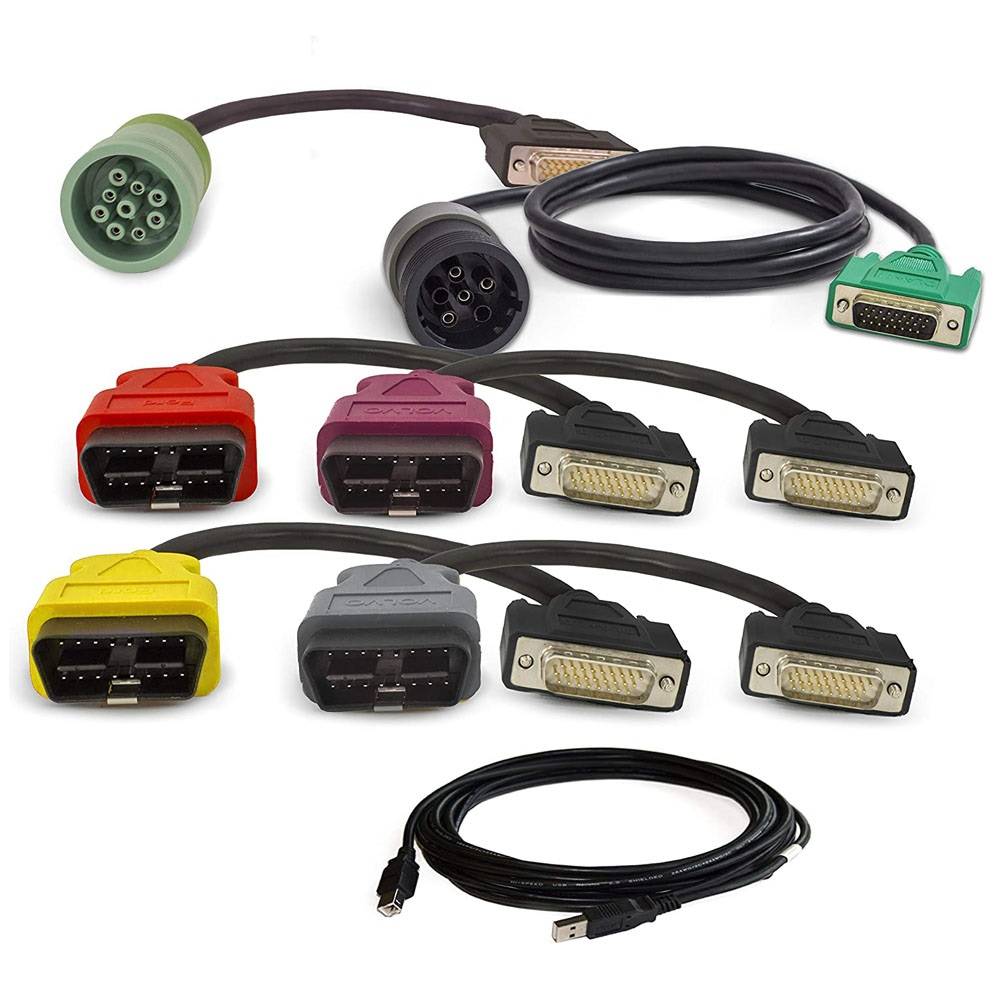

Noergon JPRO DLA 2.0 Package List:

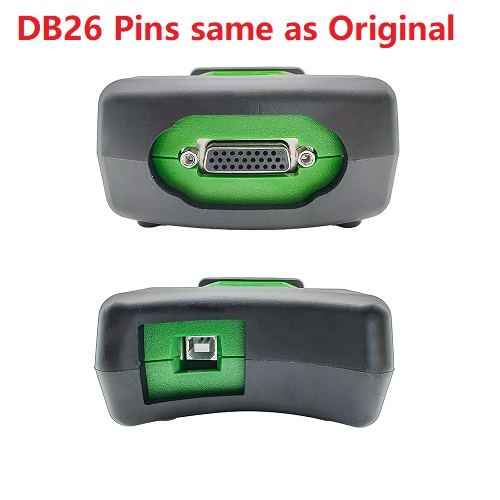

1. JPRO DLA+ 2.0 Adapter
2. Sprinter/Hino/Isuzu OBDII cable
3. Ford Truck OBDII Cable
4. GM OBDII Cable
5. Mack & Volvo OBDII Cable
6. 9Pin Cable
7. 6Pin Cable
8. USB cable
9. Noergon JPRO Software DVD
