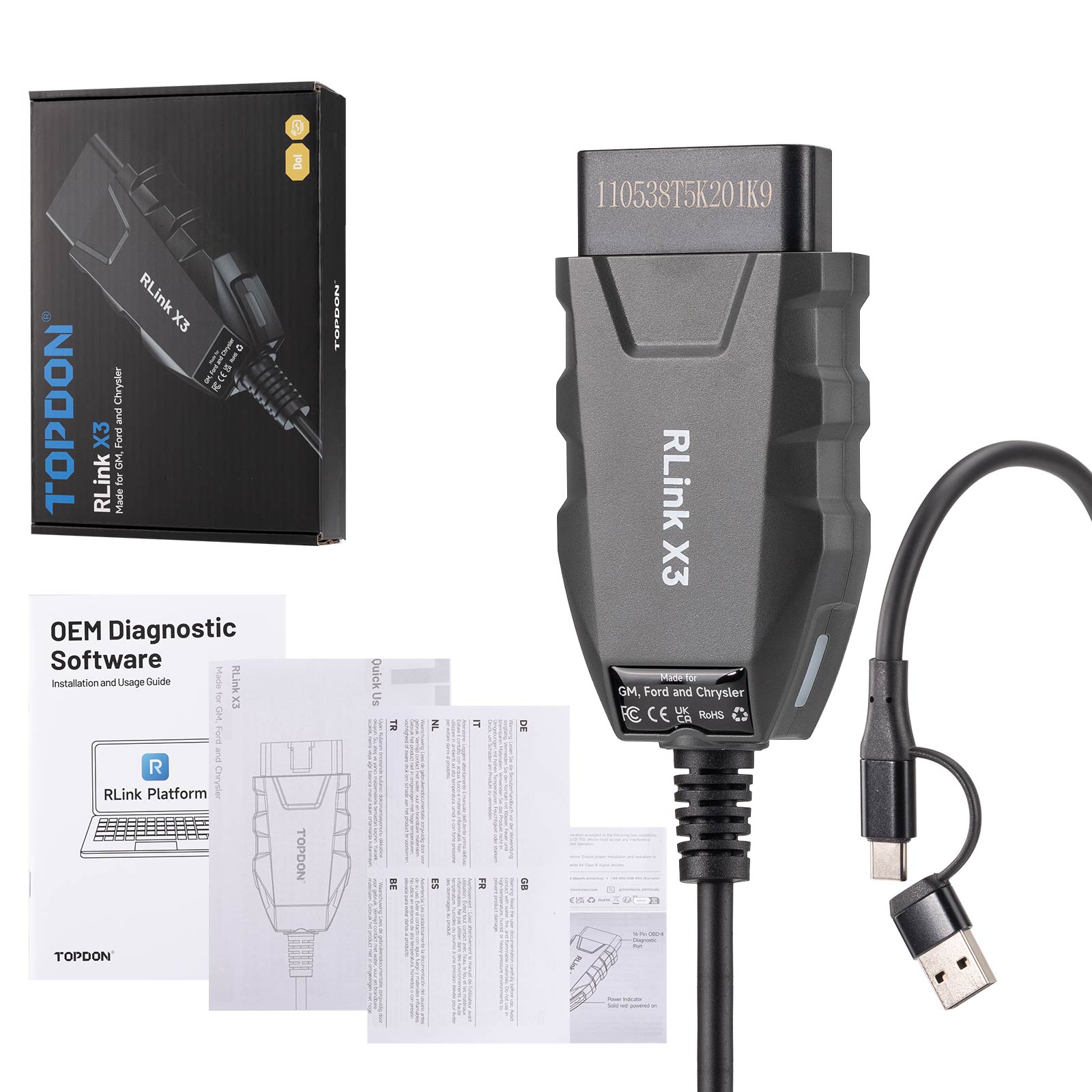

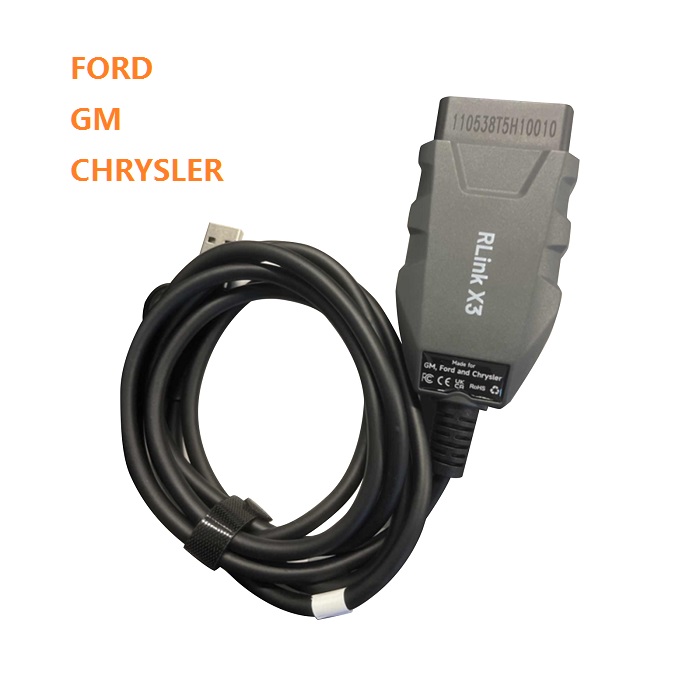

TOPDON Rlink X3 Dongle (Ford ,GM and Chrysler)

Description

TOPDON RLink X3 is a Passthru J2534 VCI ,which built for North America’s leading vehicles—GM, Ford, Chrysler, and their sub-brands.it delivers true dealership-level diagnostics including ECU programming, coding, active tests, etc. With J2534 and CAN-FD protocols, it covers vehicles from 2006 to 2025.

Rlink X3 is compatible with OEM software for GM (TLC/GDS2, Tech2Win, SPS), Ford (FJDS, FDRS, FORScan), and Chrysler (WiTECH 2.0).Note: OEM software is not included and requires additional purchase.

TOPDON RLink X3 Dongle Features:

1. Coverage models from 1996 to 2025 (actual coverage depends on the OEM software).
2. Supports reading/clearing fault codes, reading data stream, performing active tests, generating detection reports, etc.
3. Fully supports special functions as provided by OEM software — same as at the dealership.
4.  Freeze Frame Data: Allows real-time analysis of fault causes and recreates failure scenarios to avoid misdiagnosis.
5. Supports online coding and programming functions.
6. Additional OEM Software Features: such as access to repair manuals, fault code analysis, and more.

Rlink X3 Highlights:

• Supports simultaneous access to GM’s 4 CAN channels and is compatible with GM’s CAN-FD, HS-CAN, LS-CAN, UDS, J1850-VPW, SW-CAN, ALDL, GM-UART, KW81, and KW82 protocols.
• Optimized for maximum throughput, delivering at least twice as many data samples per second compared to other solutions.
• Features unique safety functions to protect the device when plugged into power, even in high-voltage vehicles such as 24V commercial trucks, ensuring no damage occurs.
• Supports simultaneous CAN bus access for FJDS, FDRS, and Forscan, enabling advanced functions that “ELM327” adapters cannot achieve.
• Prompt and professional U.S.-based support is always in reach to help from initial setup to advanced programming.
• Enjoy lifetime driver updates for the latest OE software.
