Description
Toyota ECU Flasher is a multipurpose ECU programmer for Denso and Fujitsu Ten ECUs with NEC processors installed in TOYOTA, LEXUS and SCION vehicles with petrol and diesel engines through JTAG interface.
Toyota Flasher (v1.16)is a unique solution in the chip tuning world. It covers almost all the models beginning from 2003 to 2015+ Year.
OBD writing via CAN bus is supported.
Toyota Flasher can read, flash, clear, verificate internal flash memory of microcontrollers if connected to the appropriate connector on the ECU circuit board.
This is clone ones manufactured by ECUHELP,not original ones from Autokey/PCMFLASH .
DO NOT USE external 12V power for programmer if connect to car OBD connector!!!
use USB powering ONLY !!!
Toyota ECU Flasher Supported ECUs:
All ECUs with the following processors NEC 7F00XX: 76F0038, 7F0038A, 76F0039, 76F0039A, 76F0040, 76F0040A, 76F0070 BGA, 76F0085 BGA.
These processors were introduced at the beginning of CAN support and as a rule with coachwork change.
1. SUPPORT 2015 + OBD WRITE
2. SOME MODELS 2015 + OBD READ
3.GEN_2 CAN-BUS RECOVERY MODE
Toyota ECU Flasher Advantages:
Its own hardware interface allows to avoid all compatibility and driver problems;
Work through built-in 20 or 26 pin JTAG connector;
Full access to the ECU memory at high speed of more than 100 KB/s;
Saving files in the open format;
Firmware checksum verification and recalculation.

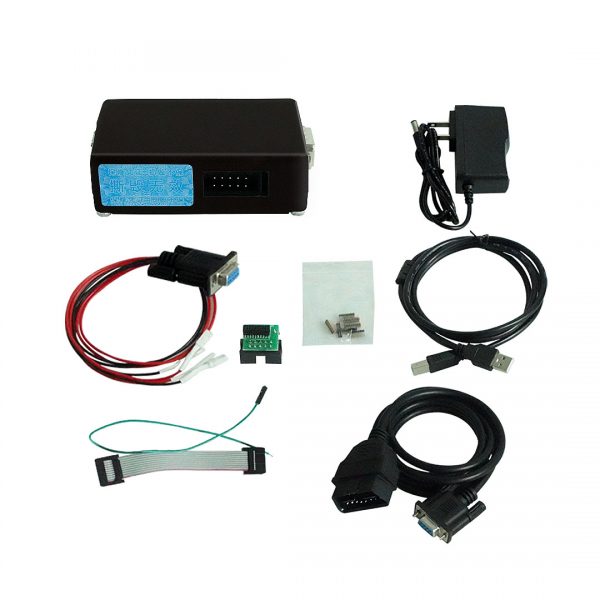

Toyota ECU Flasher Package List:

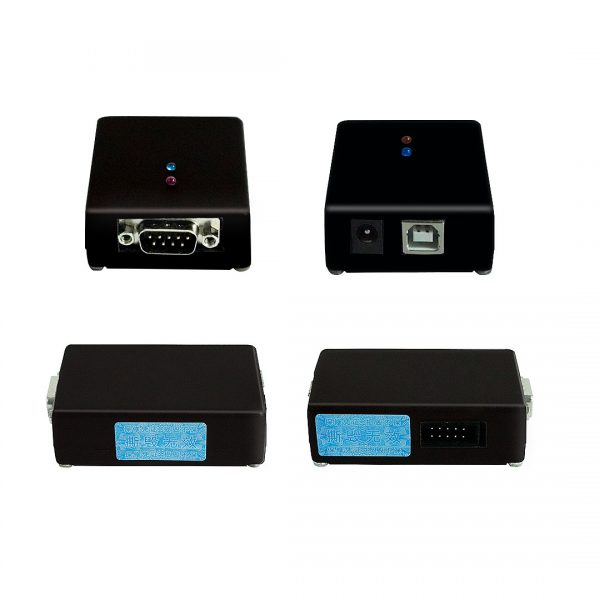

1pc*Toyota Flasher Host

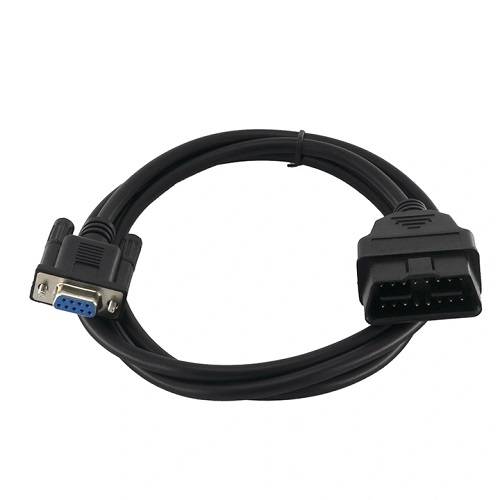

1pc*16pin cable for ecu reading by OBD

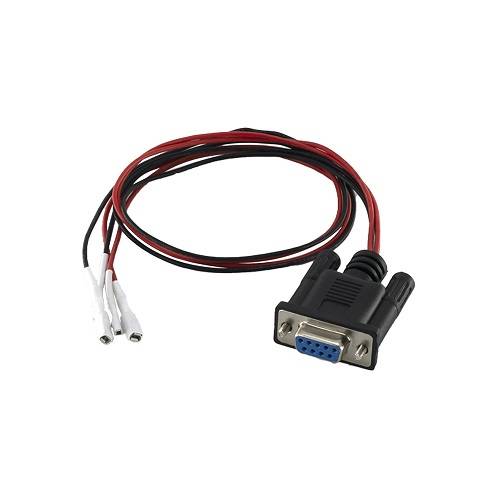

1pc*cable for BDM function
1pc*adapter for Mitsubshi reading by boot
1pc*12V/3A power out
1pc*USB cable to connect the tool to the computer
1pc*adapter
1pcs*pins
