VNCI MF J2534 Diagnostic Adapter,Support IDS V129 and HDS,VIDA,PCMFLASH

Description

VNCI MF J2534( (Vehicle Network Communication Interface) is a device that works between diagnostic software and vehicle. It is compatible with J2534 PassThru and ELM327 protocol.

VNCI MF J2534 Main Functions:

1. Compatible with Ford IDS v127.01 and Mazda IDS v126.01 newest version. Free download IDS V129 Software

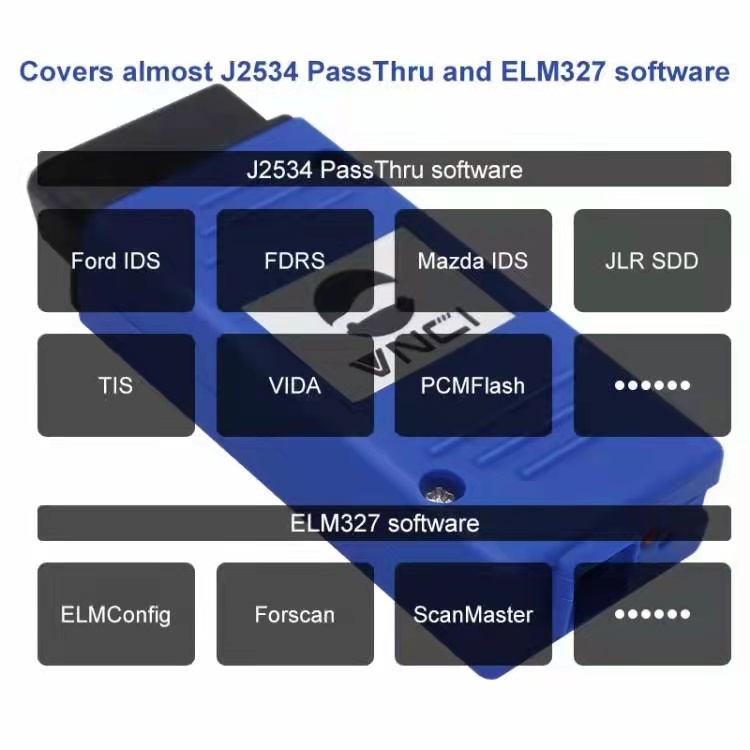

2. Support many J2534 compatible software (HDS, TIS, SDD2, VIDA, PCMFLash …).
3. Support most all of ELM327 software (ELMConfig, Forscan, ScanMaster …).

VNCI MF J2534 Advantages:

1. High speed communication. Program most of modules in 5 minutes.
2. More stability. Never let you down while reprogramming.
3. More coverage. Support J1850 PWM programming for Ford before MY2006.
4.VNCI have been replace SVCI J2534 since it discontinued update software .

VNCI MF Hardware Configuration:

1. High speed CAN.(OBDII PIN 6 and PIN 14. Speed 500Kbps)
2. Middle speed CAN.(OBDII PIN 3 and PIN 11. Speed 125Kbps)
3. ISO9141 and ISO14230 K line.(OBDII PIN 7 and PIN 15)
4. J1850 PWM.(AKA Ford SCP. OBDII PIN 2 and PIN 10.)
5. Ford FEPS.(OBDII PIN 13. programming voltage up to 20V)

VNCI MF J2534 IDS TOOL REVIWERS:

1.I have tested using a dealer licensed IDS and Forscan with phenomenal results.
Captured live data seamlessly. And I am hoping to reflash an PCM to check its transfer rate.
