How to make OPCOM Scanner working 2021 year vehicles?

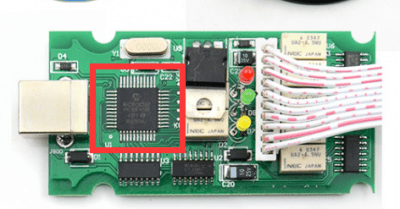

Firstly you need a good opcom interface with Real PIC18F458 chip for flash firmware ,then you can downgrade or upgrade the Firmware.this will have risk if you have not good PIC18F458 Chip,it will damaged when flash firmware .
Why we flash the firmware on opcom ?
1.some vehicles need lower or newer firmware ,otherwise won’t connection
2.newest opcom software 200603a need correct firmware ,fake or incorrect firmware won’t working out
Steps make opcom working on opcom 200603a software :
1. Make sure your interface has genuine vid and pid(6001) ,if not use the restore of ocfd.if your system has modified ftdi drivers first use the cleaner included then install the proper drivers.
2. Make sure your interface uses ftdi driver that is maximum 18.104.22.168 AND NOT NEWER!!!!! -> this is a must.
3. Make sure your interface has a proper firmware, not some fake 1.70 or 1.99 or some other shit chinese inventions.
To be sur e use included ocflash to put one of the firmwares there. Maximum official version is 1.67 on last 2020.06 version.
——————–I AM NOT RESPONSABLE FOR BROKEN INTERFACES THAT DO NOT HAVE GENUINE PIC18F458-I/PT——————–
Any interface without this chip is just a copy junk that sooner or later will brake. Buy a 20$ chinese clone and be happy.
Buy a proper one(Genuine V5 model), do the modification to revision C and then you get also manual scan to CH-CAN modules.
All that you get here is FREE, make sure you read the txt on install screens. All versions are in ENGLISH.
You can install all of them in the same computer because they will make own folders in the same subfolder and will
create shortcuts in the same program GROUP.
Password if needed is fantomel
opcom 200603a 2020 download link
