Autel MaxiLink ML529,Original MaxiLink ML529HD Truck OBD2 Scanner

Description

Autel MaxiLink ML529, an extremely useful tool from Autel, is all you’ll need to check engine faults on most 1996 and newer OBDII compliant vehicles. Autel ML529 is the upgrade version of Maxilink AL519.
ML529 =AL519+AUTOVIN+Read enhanced codes in Powertrain.
MaxiLink ML529HD =MaxiLink ML529 + Heavy Duty

Autel MaxiLink ML529 /Autel ML529HD OBD2 Scanner Highlights:

1. MaxiLink ML529 Compatible with domestic, Asian and European vehicles, 1996 and newer. OBD II/EOBD compatible vehicles (ISO9141, ISO14230, ISO15765, SAE-J1850 VPW, SAE-J1850 PWM)
2. MaxiLink ML529HD =MaxiLink ML529 + Heavy Duty Vehicles with SAE-J1939 and SAE-J1708 protocols
3. AutoVIN function for quick manufacturer-specific code identification
4. Reads enhanced codes in Powertrain system for Ford, GM and Chrysler
5. Useful DTC Lookup Library which is used to search for definitions of DTCs stored in the build-in DTC library and for
   DTC Guide information. Every code comes with a description to aid technicians inefficient vehicle diagnostics and repair.
6. Multil-Languages (including English, Spanish and French) menus
7. Internet Updatable

Autel MaxiLink ML529 Scanner Features:

• Reading Codes (Enhanced for Ford/GM/Chrysler): Retrieve Diagnostic Trouble Codes (DTC) including Stored Codes, Pending Codes and Permanent Codes. Show the detailed description of the error codes for easily determining the causes of the Check Engine Light/Malfunction Indicator Light (MIL). This scanner can also read the enhanced codes in Powertrain system for Ford, GM and Chrysler.
• Erasing Codes: Delete not only the codes from the vehicle’s on-board computer, but also “Freeze Frame” data and manufacturer-specific enhanced data, thus turning off the Check Engine Light (MIL). Further, the I/M Readiness Monitor Status for all vehicle monitors is reset to “Not Ready” or “Not Complete” status.
• Live Data: Read the live data in a graphical way but also record data for later review as follows:
• View Data: The View Data function allows viewing of live or real time PID data of vehicle’s computer module(s).
• Record Data: The Record Data function allows recording vehicle modules’ Parameter Identification (PID) data to help diagnose intermittent vehicle problems.
• Playback Data: The Playback Data function allows viewing of previously stored PID data.
• View Freeze Frame Data: Allow the technician to view the vehicle’s operating parameters at the moment a DTC (Diagnostic Trouble Code) is detected.
• Retrieve I/M Readiness Status: Check the operations of the Emission System on OBDII compliant vehicles, which is an excellent function to use prior to having a vehicle inspected for state emissions compliance.
• O2 Sensor Test: Allow retrieval and viewing of O2 sensor monitor test results for the most recently performed tests from the vehicle’s on-board compute
• On-Board Monitor Test (Enhanced): Retrieves and displays test results for emission-related power train components and systems that are/are not continuously monitored. This scan tool has the enhanced feature to read the definition of an On-Board Diagnostic Monitor ID.
• Component Test: Certain vehicle components can be actuated by commands sent from the scanner to test their operability.
• View Vehicle Information: Enable retrieval of Vehicle Identification No. (VIN), Calibration ID Nos. (CINs), Calibration Verification Nos. (CVNs) and In-use Performance Tracking on 2000 and newer vehicles that support Mode 9.
• Modules Present: Display the module IDs and communication protocols for OBDII modules in the vehicle.
• Patented One-Key Ready Test:
  This scan tool is specially designed with Autel’s patented One-Click Readiness Key, which gives you a state emissions check and drives cycle verification with just a press of a button.
  The I/M Ready Test can be used as a convenient readiness test tool by automotive technicians to determine if the tested vehicle is ready for an emission test. By visual and audible indication, you will learn a vehicle’s emissions readiness.

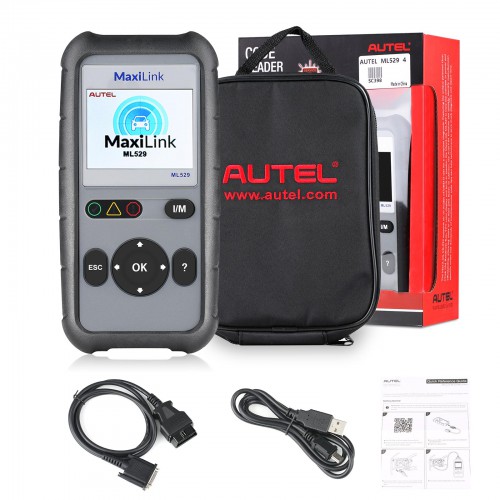

Autel MaxiLink ML529 Package List:

1. Autel ML529/ML529HD Reader
2. OBDII cable
3. Mini USB Cable
4. User Manual
5. Adapter for Deutsch-9(only on ML529HD kit)
6.  Adapter for Deutsch-6(only on ML529HD kit)

Autel MaxiLink ML529HD feedback :

• I needed a scan tool that could read a variety of vehicles mostly diesel and this fits the bill. I was not expecting a lot of testing from this mostly just to show me what cylinder is missing to narrow down the problem and this AUTEL MAXILINK ML529HD works very well on everything I have tried so for. Example: it worked on 2004 International 4300 box truck, 2007 Isuzu 5.2 box truck, 2003 Freightliner 5.9 Cummins, 2014 Chevy 6.6 Duramax.
• This tool will pay for itself! I have used this ML529HD tool to diagnose a “check engine” light on my Ford F150. The initial code showed a bad catalytic converter, but by using the more advanced features of this tool, I was able to eliminate the catalytic converter as the problem.
