Launch X431 Sensor box,S2-2 Sensorbox 2 Chanels

Description

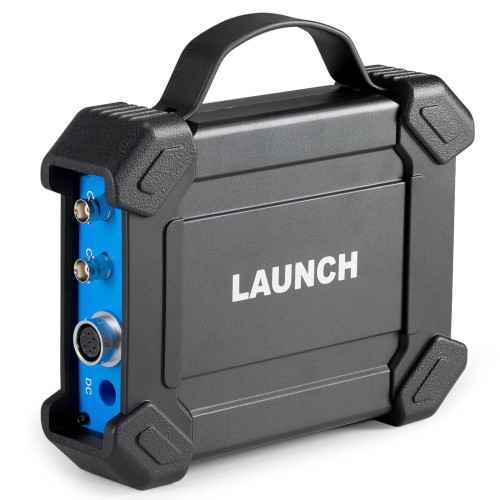

LAUNCH S2-2 Sensor box is specially developed for diagnosing/testing/simulating most vehicle sensor faults. With its help, users can easily and quickly diagnose and simulate the sensor to rapidly troubleshoot the ECU.At the same time, the LAUNCH S2-2 Sensor box module also supports the vehicle multimeter function. Through this function, users can test voltage, resistance, and capacitance. The function uses the same hardware device as the sensor module. The module cannot be used separately, and must be used together with Launch-specific diagnostic tools that are compatible with this module. It can be compatible with LAUNCH scanner X-431 PAD V and X-431 PAD III V2.0.

The sensor is the signal input device of the vehicle ECU. It converts vehicle operating parameters such as vehicle speed, coolant temperature, engine speed, air flow,
and throttle opening into electrical signals and sends them to the vehicle ECU. Then, the vehicle ECU adjusts the engine running status to maintain the engine in optimal condition.

Launch X-431 Sensorbox S2-2 Features:

• Compatible with X-431 Throttle & X-431 Throttle III, X431 PAD V, X431 PAD VII
• ECU Troubleshooting and Diagnostics
• It supports manually writing the waveform data
• Simulate the working condition of sensors without replacing parts
• Throttle & Pedal Sensor
• Airflow Meters
• Oxygen Sensor
• Temperature Sensor
• EGR Sensor
• Injectors Sensor
• Crank
• Cam sensors inductive & hall
• Be used as Multimeter to measure resistance, voltage AC/DC, capacitance, frequency and pulse signals, etc
• Simulate some special working condition of sensors without replacing parts
• One click to enters the intuitive menu of sensor, actuator, defined/drawn the waveform, timing waveform, multimeter, system settings (working with scanner)

Launch X-431 Sensorbox S2-2 Functions:

S2-2 Sensorbox is specially developed for diagnosing/simulating sensor faults. LAUNCH S2-2 sensor box mainly includes “Sensor”, “Actuator”, “Defined/Drawn”, and “Timing Waveform”.

• Sensor: Is used to simulate the input signals of the automobile electronic control system, and the automobile computer adjusts the running state of the engine according to these parameters.
  Actuator: Is used to simulate the output control signal of automobile electronic control system, so as to judge the working conditions of automobile actuators such as idle motor, EGR solenoid valve, etc.
• Multimeter: Through this function, users can test voltage, resistance, and capacitance.

The module cannot be used separately, it only works as accessory for LAUNCH X-431 PAD III, PAD V and PAD VII diagnostic tools.

Job Menu:The sensor module is mainly divided into five functional modules

1. Sensor: Use output voltage or waveform to simulate the working status of the on-board sensor, so as to accurately judge the quality of the sensor and reduce blind replacement of accessories.
2. Actuator: Used to output PWM signal to drive the on-board coil actuator.
3. Defined/Drawn: Users can customize sensor waveforms to facilitate future sensor signal simulation.
4. Timing waveform: Customize timing waveform to match the engine (crankshaft + camshaft), and output in the same phase.
5. Multimeter: universal multimeter functions.

Defined:

• Waveform: There are 9 waveforms to choose; Forward sine wave, reverse sine wave, forward square wave, reverse square wave, medium voltage, straight line, high / low voltage straight line, triangle wave, and trapezoidal wave.
• Frequency: Set the frequency of the selected waveform.
• Amplitude: Set the amplitude of the selected waveform.
• Offset: Set the offset of the selected waveform.
• Phase: Set the phase of the selected waveform.
• Duty cycle: Set the duty cycle of the selected waveform.
• Signal sync: Can cause CH1 and CH2 to output signals at the same time.

Hand-drawn:

• Total frame: 1-3 (optional). Indicate the total number of output points
• Generally, one waveform is composed of 100 points. The values 1-3 indicate that you can select 100, 200, or 300 points to form a waveform.
• Edit frame: You can edit a single frame or edit all
• Waveform: You can select a preset waveform and place it in the hand-drawing area
• Frequency: Frequency of a single frame (for 3-frame output, the total frequency is the set frequency/3)
• Amplitude: Amplitude of the output waveform
• Offset: Offset of the output waveform
• Timing Waveform:The function is used to match the timing waveform (crankshaft + camshaft) of the engine.

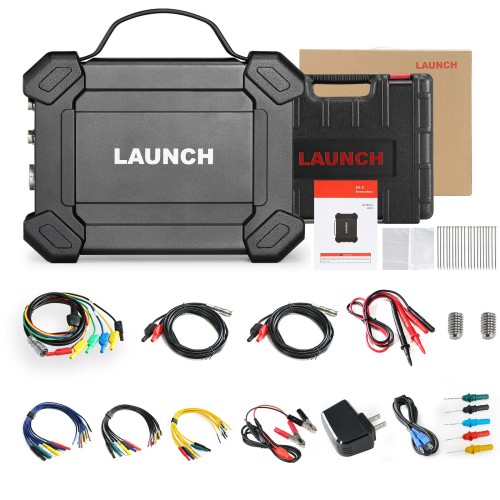

Launch X431 Sensorbox Package List:

• 1pc x LAUNCH S2-2 Sensor module
• 2ps x HT30 test leads
• 1pc x 7-pin interface adapter cable
• 1pc x Battery clamps cable
• 1pc x USB cable
• 3pcs x 6-way breakout lead
• 2pcs x Multimeter test pen (black + red – )
• 5pcs x Colored 4mm female probes
• 20pcs x Needles
• 1pc x Power adaptor
• 2pcs x Screw heads
• 1pc x User manual
• 1pc x Packing list
• 1pc x Box
