Mongoose GM Diagnostis Cable,MongoosePRO GM II Adapter

Description

Mongoose GM Diagnostis Cable is a multifunctional J2534 pass-throu adapter by DrewTech for GM vehicles diagnostics.
Compare with GM MDI ,Mongoose GM adapter is a low-cost but also same high-performance diagnostics interface.
Mongoose Pro GM II supports GDS2,Tech2win and TIS2000/Global TIS programmers.

MongoosePRO GM Notices:

1. This is clone ones ,Not original DrewTech MongoosePro GM II .

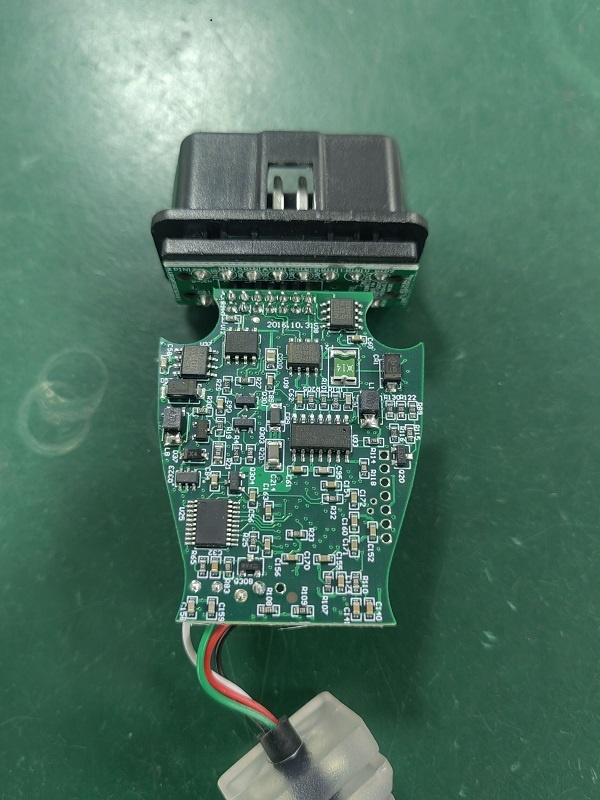

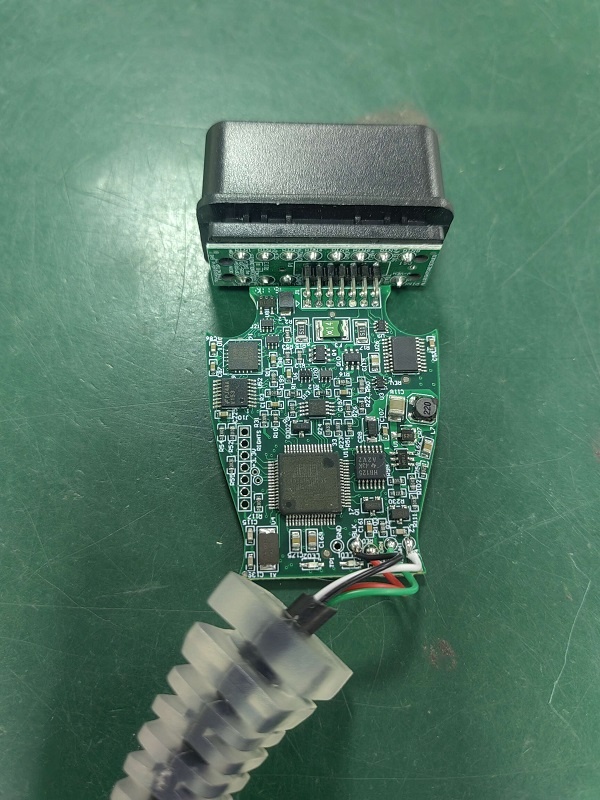

2. To make it work for Tech2Win and SAAB,You will need do this modification on pins(Lifted U52-7pin and U37-8pin Free from PCB,Soldered wire should be between the lifted pins only, not the PCB.If not Lifted these 2 Pins ,You may got P-BUS missing error; and Connect U52-7 to U3-3 and U52-9 to U37-8)
3. If you not good on Soldering ,Do not place the order.
4. Not working on Techline-Connect.
5. Software CD :V2016 GDS2 on VMWare
   Clone Mongoose Pro GM2 cable modification-fix-pin1

Mongoose GM PRO Features:

• Tis2Web full support;
• 100% support of GDS2 (global diagnostic system 2),GDS (global diagnostic system), SPS (service programming station), Tech2Win, etc.;
• Offline and online diagnostics;
• ECU reprogramming;
• Key programming;
• TMPS support.

Mongoose GM Diagnostis Supported Protocols:

1. HSCAN
2. MSCAN
3. J1850PWM
4. ROSCO
5. ISO9141/KWP2000
6. J2534, J2534-1

Buyer reviwers:

I would like advise this Good mongoose gm cable to others , i use it to work on PCM Hammer .
by the way want to tell you shortly:PCM Hammer is a software tool that allows you to use a J2534 Pass-Thru device to flash GM PCMs for various GM engines.
I was get trouble that not read the ecm after connecting .Finally i got it working.

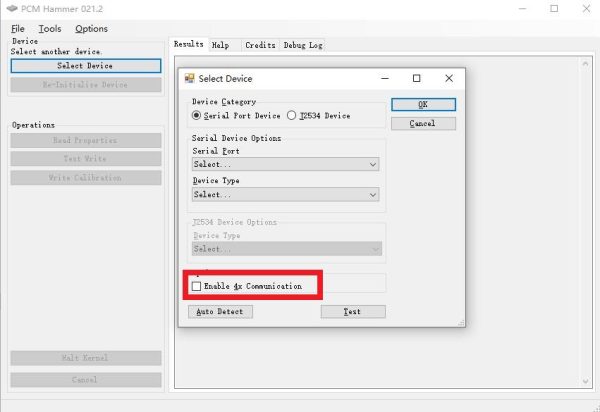

Was a simple fix, disabled the 4x after hooking up to the mongoose, let me read the ecm.
I would download “universal patcher”. It has pcm hammer built into it. Is all free.
