/, AUTO ECU Programmer/OEM Orange5 MCU Programmer with Full adapters ,V1.42 Orange 5 Full Licenses

OEM Orange5 MCU Programmer with Full adapters ,V1.42 Orange 5 Full Licenses

$120.00$185.00

Description

Orange5 MCU programmer is a professional device for programming memory and microcontrollers. it will read EEPROMS,TMS, MCUs, analyse data and solve immobiliser issues quickly.
Full kit OEM Orange5 contains most of the popular adapters and is one of the most flexible FLASH /EEPROM programmer, a powerful tool in your hands.

We supply High Quality Orange 5 Programmer that work same functions as Original ones but only 10% cost.
You can check the really user reviews here .

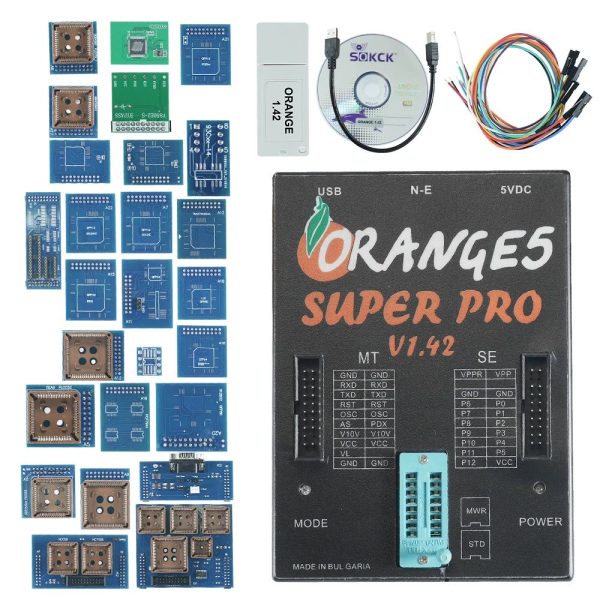

2024 arrival V1.42 Orange5 that add more licens and adapter ,with Dongle too

V1.38 Orange5 super pro is the update vesion of V1.5 Orange5 Plus ,it add more functions.Orange5 V1.38 = V1.34 + V1.35+V1.36
No Need USB Dongle.This is OEM version Orange 5 ,so Never try update online or use other version SW ,otherwise it will be locked !!!

OEM Orange5 MCU programmer notes:

1.Software Version: V1.38(2GB Files)
2.Language:English and Russian
3.Windows Systems: XP ,WIN7 /WIN10
4.Orange 5 Programmer Software License:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW

Orange 5 Programmer Feature:

Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
“Echo” mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn’t need to be installed
Supports Orange5 programmer in emulation mode.

Orange5 Programmer workable Chip List:

Immo HPX 9V0
Audi,BMW,Chery,Chevrolet,Chrysler,Citroen,DAF,Dodge,Fiat,Ford,Gilera,Great Wall,Hyundai,Honda,Jeep,KIA,Lancia,Mahindra,Mercedes Benz
,Nissan,Opel,Peugeot,Piaggio,Renault,Rover,Seat,Skoda,SsangYong,Suzuki,Toyota,VW

EEPROM
MicroWire,4Wire,Adesto,AKM,Altera,Amic,Atmel,BOSCH,Catalyst,Chingis,Dallas/Maxim,EON,ESMT,EXEL,Fairchild,Fujitsu,GI,GigaDevice,Grundig,
HOLTEK,Hynix,ITT,KHIC,Macronix,MicroChip,Micron,Mitsubishi,Motorola,NEC,NSC,Numonyx,OKI,PCT,Philips,Pioneer,PMC,Ramtron,Rohm,Samsung,
Seiko,Siemens,Sony,Spansion,SST,ST,Winbond,Xicor,XUSSR,YMC,MCU,Atmel,Infineon,MediaTek,MicroChip,Nordic,NSC,Philips,Renesas,Samsung,SiLabs,ST,TI,Motorola, Freescale,MC68HC11,MC68HC12

For detail chip type model list,pls check with us

Orange5 MCU Programmer Reviews:

Review 1:
And this Orange5 OEM is clone but includes IMMO HPX 9V0 Software License and adapter set, it works good for me with hundreds dollar compared with the original thousands dollar. I just read today 1d69j adapter success.

Review 2:
Got my Orange 5 today, first very easy to install, then I start tested it: all functions open 1-10 except car radio get error, tested reading usual EPROMS all good, tested tms370 with adaptor board did not read so maybe bad adaptor board, tested IMMO login code from dump, TMS VW works.

Review 3:
Not bad at all, I have received mine few days ago and already did few cars. IMMO SW included and also activation for other sw. Only one minus is not have updates, I have original also get this to play with it, and can’t say bad for it, till now first I read with original after that with the clone and no problem till now , of course I not test all but with some NEC all ok .

Review 4:
Orange 5 OEM seems to be an EEPROM programmer. I often extract the dump of an EEPROM with a programmer and modify it with the software came with the Orange 5.

Review 5:
I like orange more than over UPA
i have OEM clone orange 5 and it works all good.. the sad thing is that the drivers are not compatible with windows 10 the one I like using…
To overcome this I load up two operating systems…windows 10 and 7 in one computer…just for orange 5.

Review 6:
I like PIN checking function (test insertions) very much .It saved my job a lot of time.
In combination with my UPA -USB ,carprog ,and TL866 a lot of job can be done successfully .

Review 7:
Hi all received my o5 and tested
93c66,46,56, 24c02,04
S190, hc08(1j35d)ss read eeprom and flash
Hc05x32 ss and read all went good.

Review 8:
I buy Orange5 MCU Programmer china clone. Work great. Now i check in hc05b8, hc11e9, and eeproms. All read and write very fast.

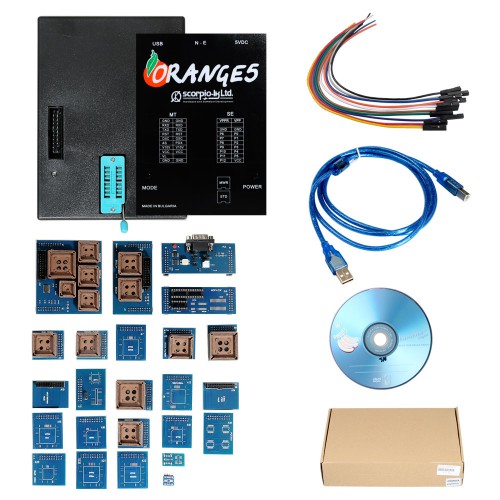

Orange5 Programmer Package List:

1pc x Orange5 OEM main unit
1pc x USB cable
10pcs x Incircuit wire
1pc x SOIC8/DIP8 Expert adapter
1pc x SSOP8/DIP8
1pc x SOIC8/DIP8 adapter
1pc x SOIC8_14_93Cxx adapter
1pc x Lead 11E9(20) with power
1pc x Adapter 05L28/05B
1pc x Adapter 908AS60/AZ60 QFP64
1pc x Adapter 68HC(7)05P3/E6
1pc x Adapter 05B/X_705B/X QFP64 V2
1pc x Adapter 11PA8/11E9 QFP64
1pc x Adapter 68HC05H12
1pc x Adapter 68HC11EA9
1pc x Adapter 908AS60
1pc x Adapter 9S12Dxx
1pc x Adapter 912Dxx
1pc x Adapter 9S12X
1pc x Adapter 912B32 QFP80
1pc x Adapter 68HC11F1
1pc x Adapter 68HC11L6
1pc x Adapter 68HC11KA4
1pc x Adapter 9S12XE
1pc x Adapter PCF7941
1pc x Adapter TMS374C003A
1pc x Adapter MSP430F
1pc x Adapter 68HC11KA4 PLCC68
1pc x Adapter 908JL
